Jabra Link 14201-40 Quick Start Quide

Connection with panasonic phones

Jabra Link 14201-40

How do I set up the Jabra EHS adapter to work with Panasonic

phones?

Prerequisites

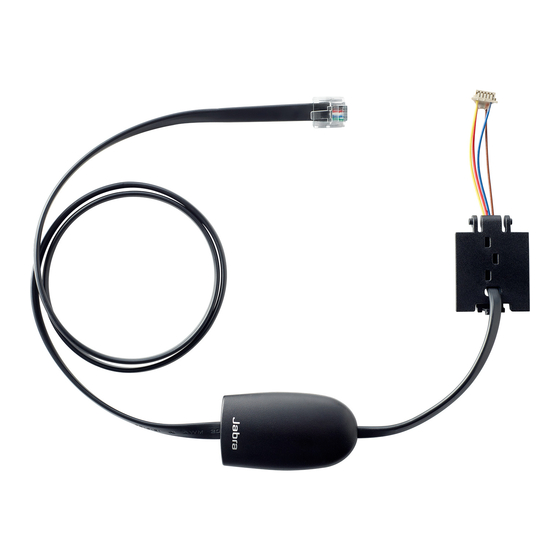

Jabra EHS Adapter 14201-40

To set up the solution for Panasonic models such as KX-NT553 and KX-

DT546, follow these steps:

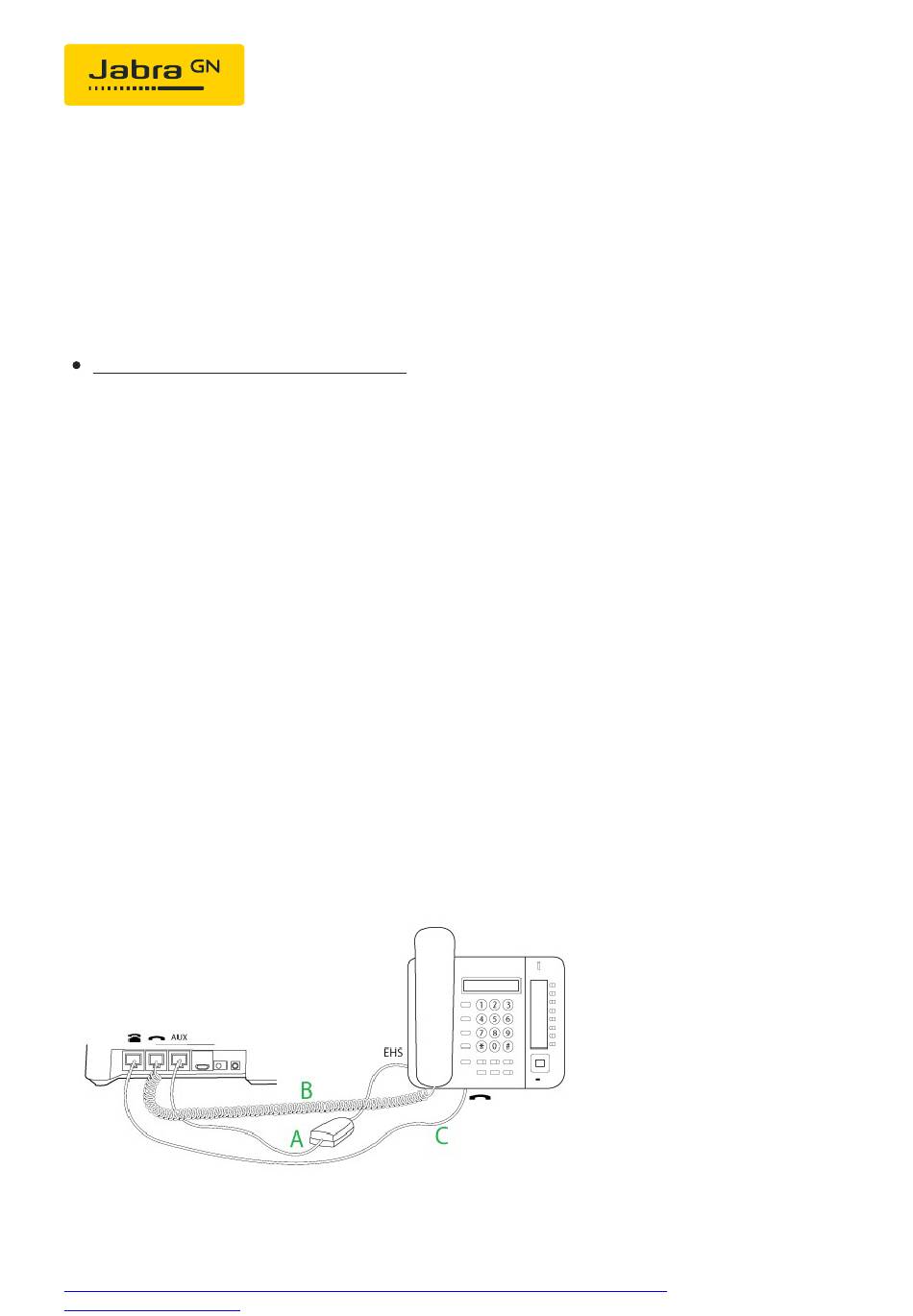

1. Connect the cables between the base of the Jabra headset and the

Panasonic phone as shown below:

a. Connect the RJ45 plug on the Jabra EHS adapter to the AUX port on

the base of the Jabra headset, and connect the 3.5 mm jack to the 3.5

mm EHS port on the Panasonic phone.

b. Connect the handset cable of the phone to the port, marked with a

handset, on the headset base.

c. Connect the Jabra phone cable (supplied with the headset) to the port

marked with a phone, on the headset base, and the port marked with a

handset, on the Panasonic phone.

2. Set the following on your Jabra headset:

https://www.jabra.co.nz/supportpages/jabra-link-14201-40/14201-40/faq/6208048c-8c59-

4664-99c4-2370f9592df7

27/06/2021 20:13

Page 1 of 2

Table of Contents

Do you have a question about the Link 14201-40 and is the answer not in the manual?

Page 1 1. Connect the cables between the base of the Jabra headset and the Panasonic phone as shown below: a. Connect the RJ45 plug on the Jabra EHS adapter to the AUX port on the base of the Jabra headset, and connect the 3.5 mm jack to the 3.5 mm EHS port on the Panasonic phone.
Page 2 27/06/2021 20:13 a. Set the Jabra headset adapter type to "IQ". b. Set the phone setup switch for the Jabra headset to position "A". Refer to the user manual of the specific Jabra headset. Note: If you connect a headset directly to the 2.5 mm jack port on the Panasonic phone, while the Jabra EHS adapter is connected to the 3.5 mm...
