How do I connect my headset with my Alcatel IP Touch 4029
or 4039?

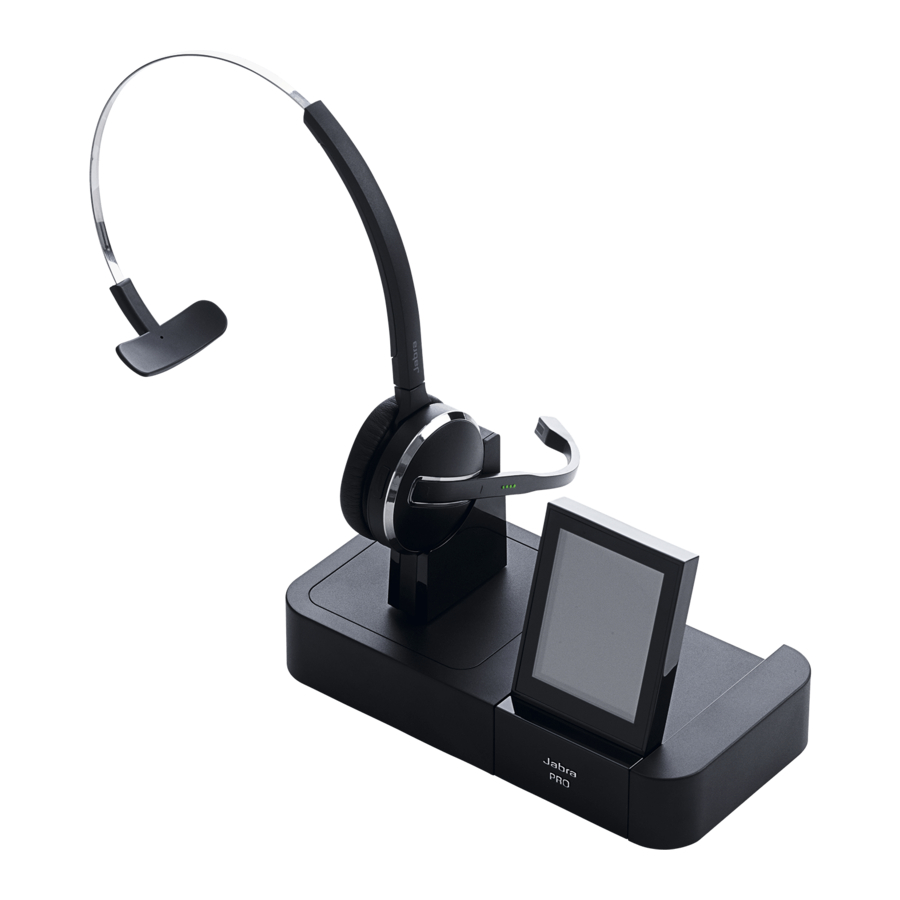

Jabra Pro 9460 Mono
Requirements:
Jabra Link 14201-36
To connect your headset, please follow these steps:
1. At the 2-sided end, plug the RJ45 connector (red band) in the red socket
marked AUX on the Jabra device base.
2. Plug the RJ9 connector (blue band) into the blue socket marked with
the phone symbol on the Jabra device base.
3. For the 2-fold Y coupling end, plug the 3.5 mm phone connector into
the headset interface.
4. Plug the RJ12 connector into the socket marked by a bell on the phone.
5. Plug the phone cable for the phone directly into the additional
connection socket of the Y-cable.
6. Then follow the instructions on the Jabra device touch screen:
a. Select Phone settings.
b. Select Connect desk phone.
c. Select Manual.
https://www.jabra.co.nz/supportpages/jabra-pro-9460/9460-25-707-103/faq/eb3212f1-
798d-437a-a9f5-c285d6e03c4d
06/04/2021 08:28
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jabra Pro 9460 Mono
Summary of Contents for Jabra Pro 9460 Mono
- Page 1 4. Plug the RJ12 connector into the socket marked by a bell on the phone. 5. Plug the phone cable for the phone directly into the additional connection socket of the Y-cable. 6. Then follow the instructions on the Jabra device touch screen: a. Select Phone settings. b. Select Connect desk phone.
- Page 2 06/04/2021 08:28 d. Select adapter type MSH. 6. For the base settings on the phone: a. Set the phone setup switch to position A. https://www.jabra.co.nz/supportpages/jabra-pro-9460/9460-25-707-103/faq/eb3212f1- Page 2 of 4 798d-437a-a9f5-c285d6e03c4d...
- Page 3 B. We recommend the microphone volume is set to 7 out of 13. Guided setup: As a part of the installation, you can dial into your local Jabra setup server, which will configure the audio path. Follow the instructions shown on the display.
- Page 4 1. Dial the phone number. 2. “Transfer” will now appear on the phone display. 3. Press the associated function button next to the phone display. 4. End the conversation using the button marked “Headset”. https://www.jabra.co.nz/supportpages/jabra-pro-9460/9460-25-707-103/faq/eb3212f1- Page 4 of 4 798d-437a-a9f5-c285d6e03c4d...
