Jabra Link 14201-40 Setup

Jabra link 14201-40 EHS Setup

To set up the solution for Panasonic models such as KX-NT553 and KX-DT546, follow these

steps:

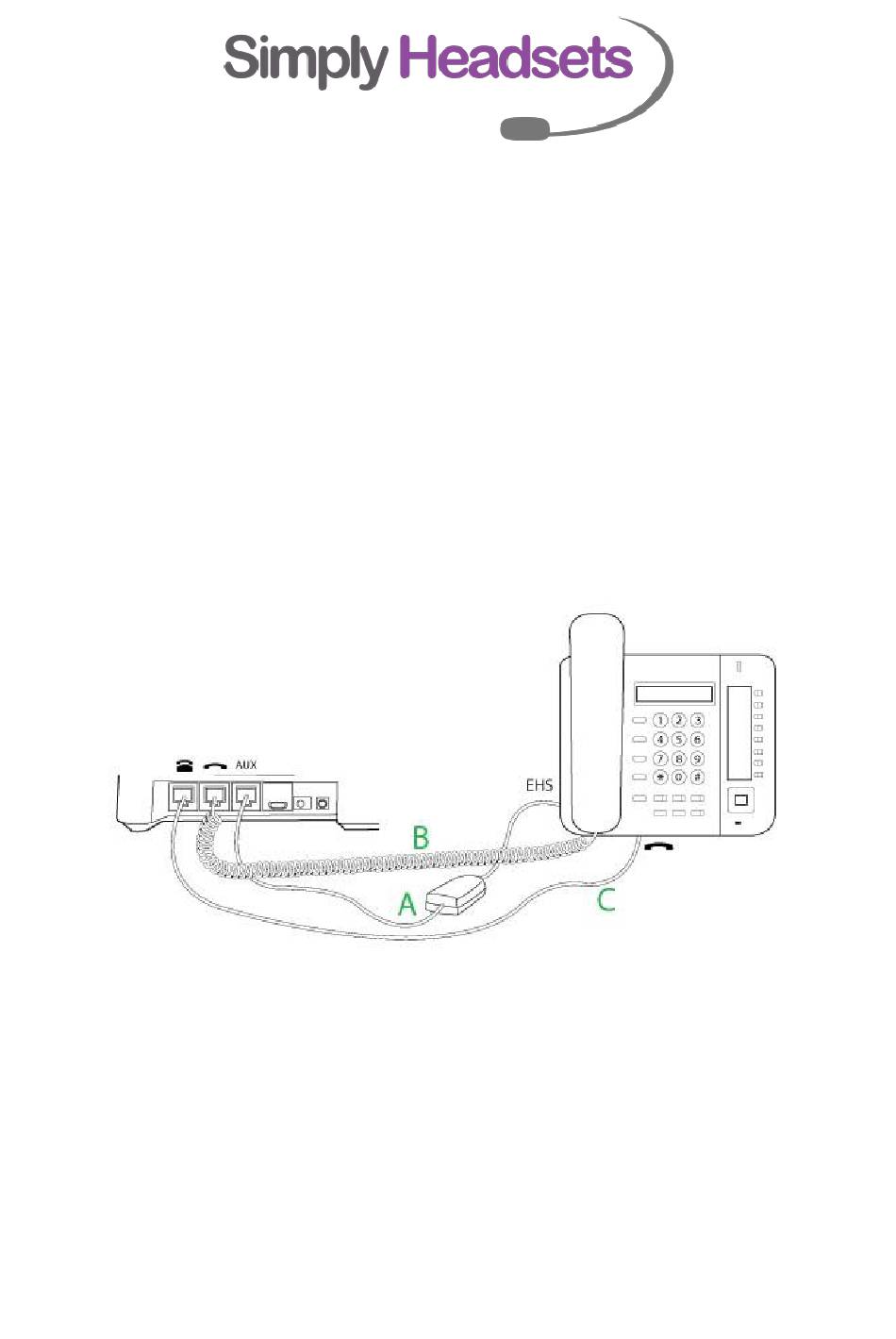

1. Connect the cables between the base of the Jabra headset and the Panasonic phone as

shown below:

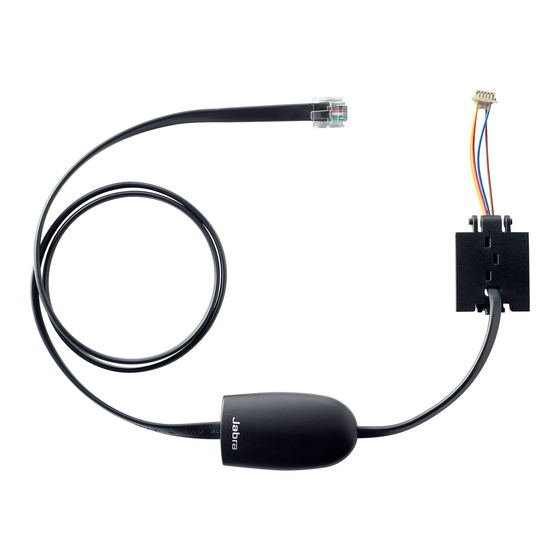

a. Connect the RJ45 plug on the Jabra EHS adapter to the AUX port on the base

of the Jabra headset, and connect the 3.5 mm jack to the 3.5 mm EHS port on

the Panasonic phone.

b. Connect the handset cable of the phone to the port, marked with a handset, on

the headset base.

c. Connect the Jabra phone cable (supplied with the headset) to the port marked

with a phone, on the headset base, and the port marked with a handset, on the

Panasonic phone.

2. Set the following on your Jabra headset:

a. Set the Jabra headset adapter type to "IQ". (see below instructions for how to

program this setting on your headset base)

b. Set the phone setup switch for the Jabra headset to position "A". (see attached

doc 'read me first' on where to find this setting)

Table of Contents

Need help?

Do you have a question about the Link 14201-40 and is the answer not in the manual?

Page 1 1. Connect the cables between the base of the Jabra headset and the Panasonic phone as shown below: a. Connect the RJ45 plug on the Jabra EHS adapter to the AUX port on the base of the Jabra headset, and connect the 3.5 mm jack to the 3.5 mm EHS port on the Panasonic phone.
Page 2 Press the black multifunction button on the side of the headset and cycle through the settings until you hear “Remote Call Control” Then press the (+) button until you hear “Jabra IQ” Then press and hold both volume buttons again until the voice prompt says “Goodbye”...
Page 3 Hook Lifter type. Once you hear this use the volume up/down buttons to cycle through the options till you hear Jabra IQ. Then use the Call button to accept this setting and move on. Then press and hold the volume up and down button to exit the settings menu and save changes.
Page 4 If you are using an Engage 75 please use these instructions: The easiest way to change settings on the Engage 75 headset is via the Jabra direct software. This is free to download from https://www.jabra.com.au/software-and-services/jabra-direct Once this has been downloaded and your headset is plugged into the PC you will be able to go directly into the headset settings and select the EHS/Hook lifter type.
