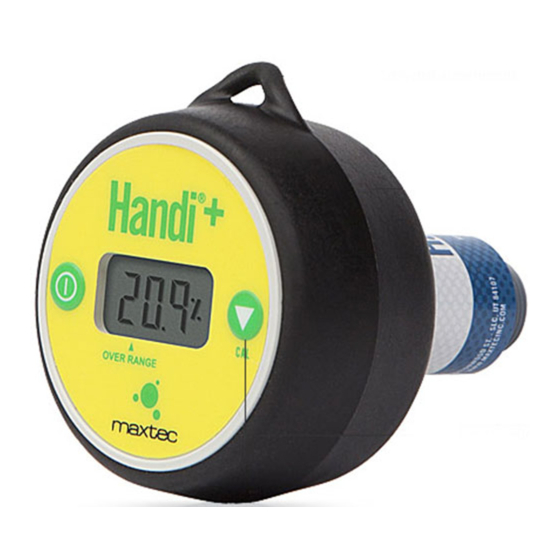

- Page 1 Handi+ R 2 1 8 P 1 6 S C U B A Operating Manual & Instructions For Use R218M16 REV.F...
-
Page 2: Classification
Maxtec warrants to the original purchaser, that the HANDI+ analyzer to be free from defects in mate- rial and workmanship for a period of two-(2) years from the date of shipment from Maxtec or from one of Maxtec’s authorized dealers. Parts found to be defective as determined by Maxtec, will be repaired or replaced free of charge if shipped prepaid to the factory in the original shipping carton. -
Page 3: Table Of Contents
3.0 CALIBRATION ................ 5 4.0 CALIBRATION ERRORS AND ERROR CODES ....5 5.0 CLEANING, MAINTENANCE, AND DISPOSAL ....6 6.0 SPECIFICATIONS ..............6 6.1 Analyzer Specifications ..............6 7.0 HANDI+ SPARE PARTS AND ACCESSORIES ..... 7 7.1 Standard Replacement Parts and Accessories ....7 2.45 in 0.90 in 866.4.MAXTEC WWW.MAXTEC.COM... -
Page 4: Warnings
◆ Never expose the HANDI+ to high temperatures. ◆ ◆ Never expose the HANDI+ directly to unregulated gas lines, cylinder gas…These may contain high ◆ gas pressures which may cause the HANDI+ to rupture. ◆ There are no internal user-serviceable parts in the HANDI+. ◆ 866.4.MAXTEC WWW.MAXTEC.COM... -
Page 5: Symbol Guide
HANDI+ for the first time. This seal ensured freshness of the HANDI+ during shipping and storage. Once the seal is removed, you should expect to obtain the normal life from the HANDI+. Included in the kit you will find the barbed adapter, which will screw onto the sensing port. 866.4.MAXTEC WWW.MAXTEC.COM... -
Page 6: Low Pressure Port
The HANDI+ has a male barbed fitting, which will adapt to a piece of 1/4” soft plastic tubing. It is rec- ommended to use the Maxtec standard BC fitting for the connection from the HANDI+ to the BC hose. Allow some gas to pass through the barbed adapter and then observe the concentration of oxygen displayed. -
Page 7: Atmospheric Pressure
2.5 Oxyknob Instructions for Use 1. Attach the Oxyknob adapter to the threaded sensor of your Maxtec analyzer. 2. Hand tighten until sensor o-ring seals against the Oxyknob. 3. Slowly crack open the tank. Listen for a slight hissing sound. -
Page 8: Calibration
CAL Err lo: Sensor voltage too low Press and hold the Calibration Button for three seconds to manually force a new calibration. If unit repeats this error more than three times, contact Maxtec Customer Service. 866.4.MAXTEC WWW.MAXTEC.COM... -
Page 9: Cleaning, Maintenance, And Disposal
Press and hold the Calibration Button for three seconds to manually force a new calibration. If unit repeats this error more than three times, contact Maxtec Customer Service. CAL Err Bat: Battery voltage too low to recalibrate Unit is at end of life, see page I for proper disposal. -
Page 10: Handi+ Spare Parts And Accessories
R218M16 ...................Manual R100P92-002 ..............Clear Tubing RP76P06 ................Lanyard R218P09 ................Handi+ Cover R218P19 .................Oxy Knob ACCESSORIES: Flow Diverter Fitting Standard BC Adaptor: #RP11P28 (For use with medical tee) #R110P10-001 To Sensor 1/8" NPT Medical tee fitting : #RP16P02 866.4.MAXTEC WWW.MAXTEC.COM... - Page 11 2305 South 1070 West Salt Lake City, Utah 84119 800.748.5355...
