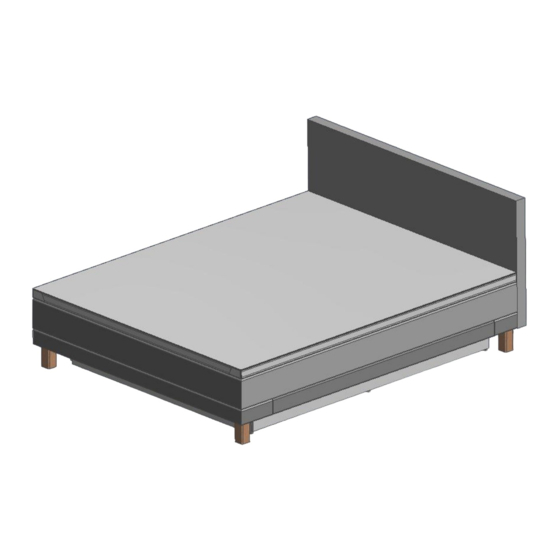

AKVA Modulex SELECT with headboard
1. Assemble the base frame. See assembly instructions for Big Box without headboard.

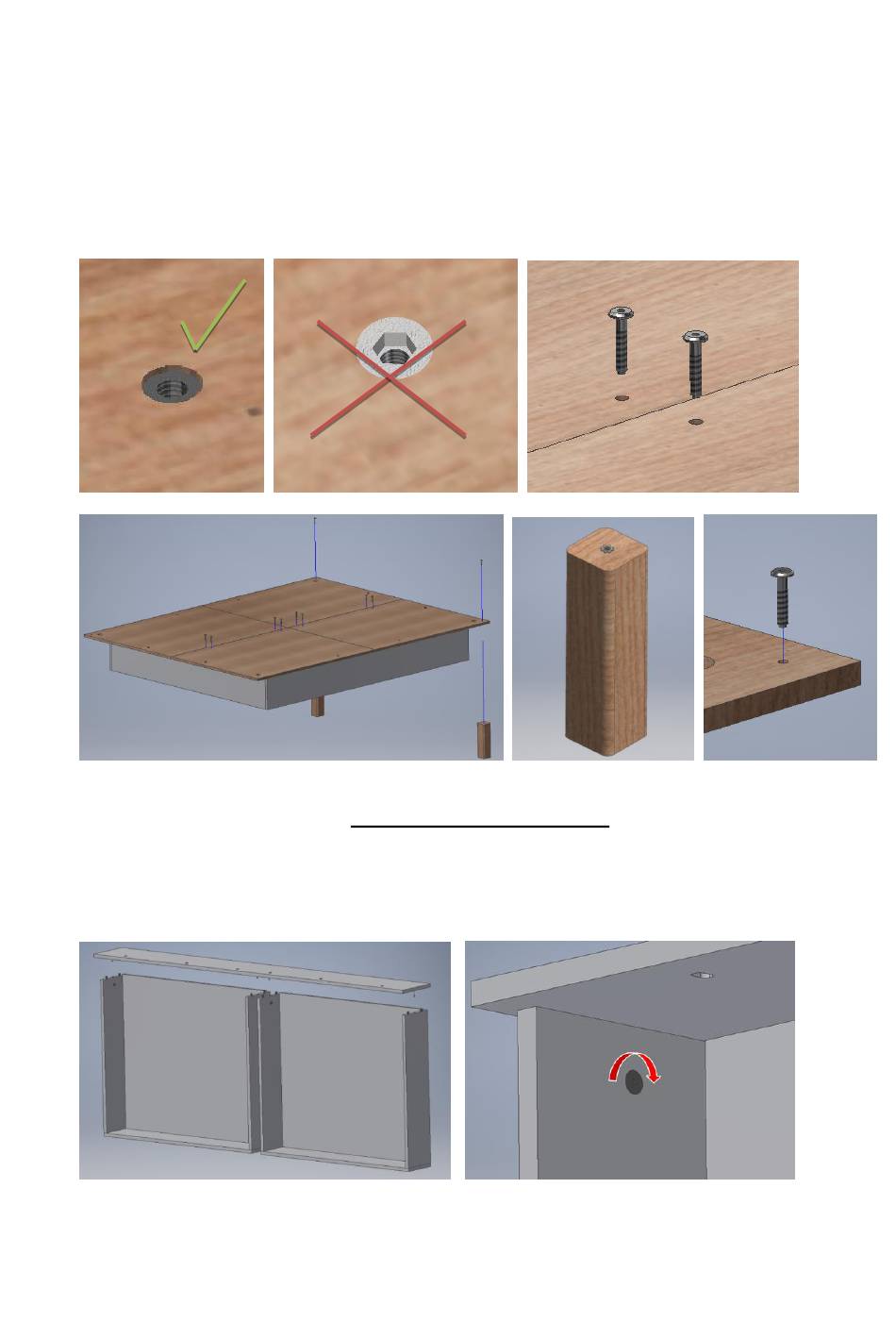

2. The bottom plates are placed on the base and attached by the screws. The threaded
bushings of the bottom plates must face up as illustrated.
3. The 2 legs at the head end are fastened with screws. A lock washer is placed between the
leg and the bottom plate.
4. Place the drawers with the front opening facing up. The front panels of the drawers are
positioned on the dowels, and the socket screws in the side pieces are fastened.
Note: Do not lift the drawer until the next point has been done, because the sides of the
drawers are not stabilized yet.
Base with drawers (see 3-6)
