Chest of drawers 2016
All pictures shown in this manual are of the lowest model: width 50 cm and height 52
cm with 2 drawers.
Rails, socket screws and dowels are fastened to the side pieces of the drawers. The
lower rail is not fastened until the sides, the bottom parts and the back pieces are
assembled.

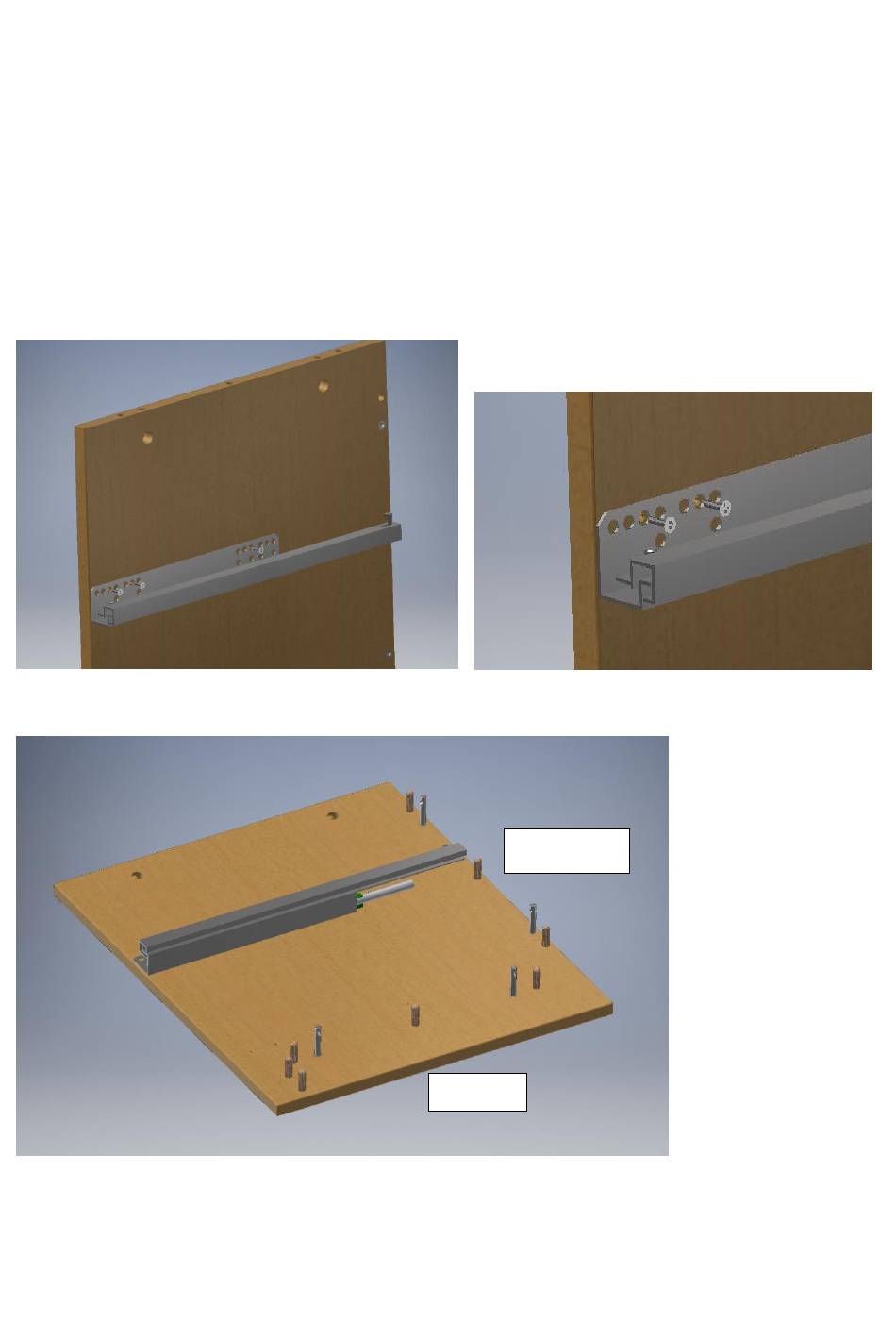

Left side: the rail is marked 400-L:
The eyelets of the socket screws should face towards the back edge and the bottom.
Back edge
bottom
Right side: the rail is marked 400-R.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akva Chest of drawers 2016
Summary of Contents for Akva Chest of drawers 2016
- Page 1 Chest of drawers 2016 All pictures shown in this manual are of the lowest model: width 50 cm and height 52 cm with 2 drawers. Rails, socket screws and dowels are fastened to the side pieces of the drawers. The lower rail is not fastened until the sides, the bottom parts and the back pieces are assembled.
- Page 2 The left side is positioned on the outer side. Bushings are placed in the bottom part, and then the bottom part is lowered onto the socket screws and dowels. The bottom part is locked with socket screws. The back piece is assembled in the same way as the bottom part was, and the base part is lowered onto the dowels on the side.
- Page 3 The bushings are placed in the bottom and back pieces, and then the right side is fastened. The lower drawer rails are now fastened with screws. The dowels and socket screws are mounted on the top part. The overhang should be on the front side above the drawer fronts.
- Page 4 The drawers are assembled. The dowels are placed on the sides, and the back piece is now fastened to the sides. It is important that the blind holes in the back piece should face towards the back and also downwards. blind hole The front of the drawer is mounted with handles, socket screws and dowels.
- Page 5 If it is a 100 cm wide drawer an angle bracket is used to secure the bottom and the front of the drawer. The bottom of the drawer is fastened, and the pre-drilled hole intended for the angle bracket should face forwards and downwards. First screw the angle bracket to the bottom and then to the drawer front.
- Page 6 Example: Width 50 cm and height 52 cm ~ 1 drawer row Width 100 cm and height 52 cm ~ 2 drawer rows Chest of drawer height: 52 cm ~ 2 drawers 84 cm ~ 4 drawers 105 cm ~ 5 drawers Chest of drawer width: 50 cm ~ 1 drawer row 100 cm ~ 1 or 2 drawer rows...
