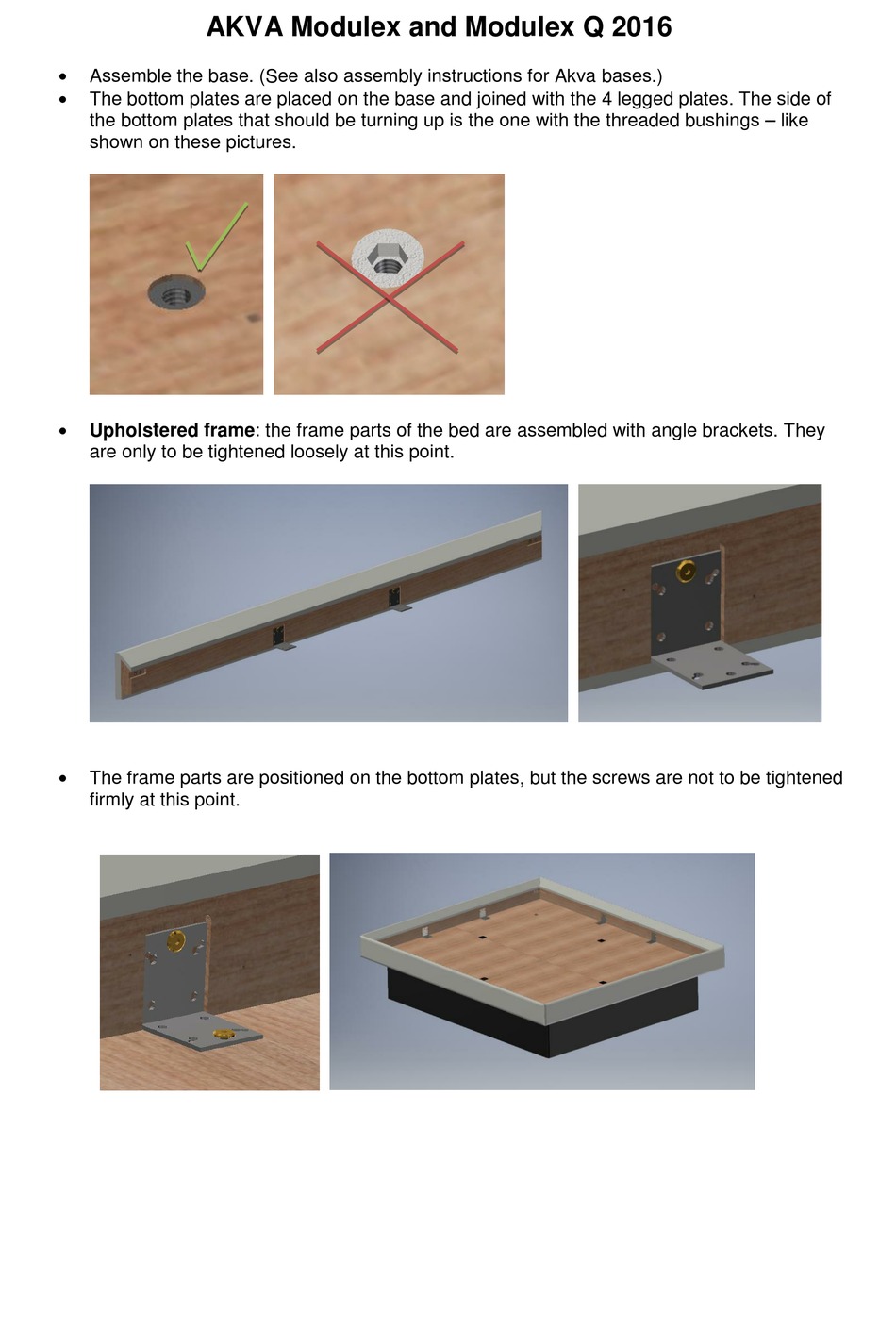

AKVA Modulex and Modulex Q 2016
Assemble the base. (See also assembly instructions for Akva bases.)
The bottom plates are placed on the base and joined with the 4 legged plates. The side of
the bottom plates that should be turning up is the one with the threaded bushings – like
shown on these pictures.
Upholstered frame: the frame parts of the bed are assembled with angle brackets. They
are only to be tightened loosely at this point.

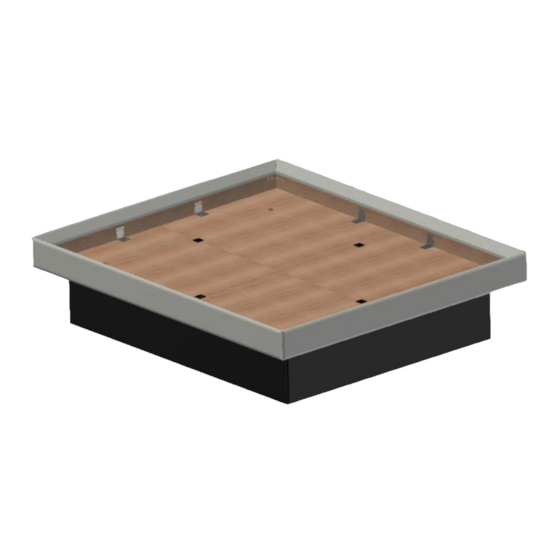

The frame parts are positioned on the bottom plates, but the screws are not to be tightened
firmly at this point.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akva Modulex
Summary of Contents for Akva Modulex
- Page 1 AKVA Modulex and Modulex Q 2016 Assemble the base. (See also assembly instructions for Akva bases.) The bottom plates are placed on the base and joined with the 4 legged plates. The side of the bottom plates that should be turning up is the one with the threaded bushings – like shown on these pictures.
- Page 2 The angle brackets are tightened loosely at the corners. Then one by one the screws at each corner are tightened firmly. It is important to begin with the inner screws. After this the angle brackets are all to be tightend firmly. ...
- Page 3 The lower part of the cover is positioned with the AKVA logo at the foot end. The top cover is zipped off and put aside. The fixing paddles are put through the holes in the lower part of the cover and fixed to the bottom plates.
