GB
Hz TIMER - Réf.: 2004960
®
S.A.S. au capital de 5 000 000 - Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
GB- Hereby, SIMU, declares that this equipment "Hz-Timer" is in compliance with the essential
requirements and other relevant provision of Directive 1999/5/EC. A declaration of Conformity
is available at the web address: www.simu.fr, heading "Normes". Usable in EU,
General specifications
1

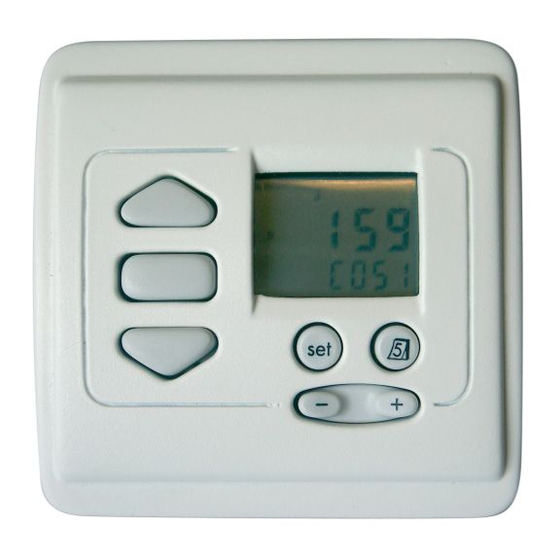

The Hz TIMER is a radio transmitter used to derive remote Hz
receivers or Hz motors with a built-in receiver. It is used to issue
individual, group or general controls.
This timer features 5 operating modes:
1 daily or weekly mode (e.g.: M 20:00)
2 cosmic modes "COS1"and "COS2", according to sunrise and sunset.
1 security mode "SEC" to simulate presence.
1 "OFF" mode, without closing nor opening time setting.
Technical specifications :
- Power supply : 2 AAA LR 03 1,5Vdc batteries.
- Frequency : 433 MHz
- Range : 200m in free field or 20 between 2 reinforced concrete walls.
- Operating temperature : +5°C / +40°C (indoor use only).
- Storage temperature : 0°C / +70°C
- Protection index : IP 30
- Operating reserve: unlimited for programming, time and date setting
when changing batteries.
- Weight : 145gr.
first use of the timer
1- Remove carefully the front cover using a flat
screwdriver.
2- Unclip the timer from its basis.
3- remove the insulation pad.
4- The timer is in "OFF" mode. To set the
clock, press the "-" key
5009577C
Read carefully these instructions
before any use.
1 / 4
