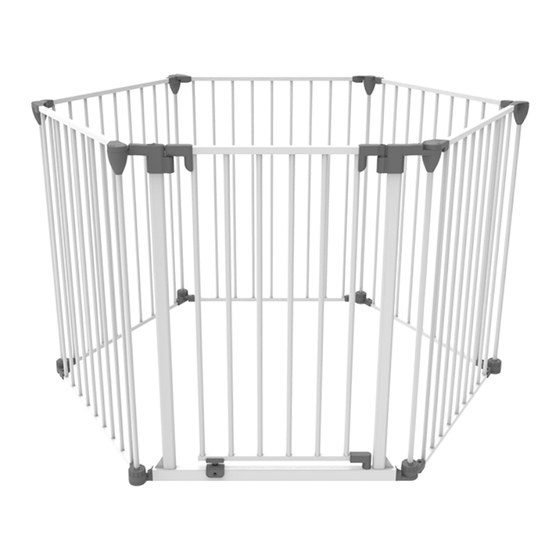

- Page 1 3-In-1 Playpen • fits openings: 73cm - 376cm Instruction Manual IMPORTANT! READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE. THIS PRODUCT CONFORMS TO EN1930:2011...
- Page 2 WARNINGS WARNING To prevent serious injury or death, securely install gate or enclosure and use according to manufacturer’s instructions. WARNING Never leave child unattended when using this product. WARNING Incorrect installation can be dangerous. WARNING Do not use the safety barrier if any components are damaged, missing or disassembled.
- Page 3 WARNINGS WARNING Any additional or replacement parts should be obtained from Kmart Australia Ltd. WARNING Barrier must be fitted between rigid surfaces such as plaster board, timber or hardwall. WARNING Always check that the safety barrier is correctly closed. WARNING Use only with the locking/latching mechanism securely engaged.
- Page 4 PARTS INCLUDES Topside Barrier Panels Underside Barrier Panels Gate Panel...
- Page 5 Top Underside Bottom Hinge Hinge Adapter Adapters Wall Brackets Top Caps Topside Wall Bracket Covers Hinge Adapters 10 x 10 x Bottom Cap Screws Wall Plugs Corner Tubes...
-
Page 6: Installation
INSTALLATION UNDERSIDE BRACKET WALL ASSEMBLY Place the Bottom Hinge Adapter over Corner Tube, and then put the Corner Tube into the Top Underside Hinge Adapter. Compress the spring into the top hole and slide the base of the Corner Tube into the Top Cap. - Page 7 Place Wall Bracket over Wall Bracket Covers. Clip Cover to hinges - Top Underside Hinge Adapter and Bottom Hinge Adapter. Ensure the small silver studs on the adapters are positively engaged in cover.
- Page 8 Place the assembled barrier against the wall and mark position. Remove Wall Bracket from cover, hold in marked location, and mark screw positions. Screw into surface with the appropriate fixing method.
- Page 9 Slide Wall Bracket Cover into the Wall Bracket, and then push Top Underside Hinge Adapter and Bottom Hinge Adapter into the Wall Bracket Cover.
- Page 10 INSTALLATION TOPSIDE BRACKET WALL ASSEMBLY Place the Bottom Hinge Adapter over Corner Tube, and then put the Corner Tube into the Topside Hinge Adapter. Compress the spring into the top hole and slide the base of the Corner Tube into the Bottom Cap.
- Page 11 Place Wall Bracket over Wall Bracket Covers. Clip cover to hinges - Topside Hinge Adapter and Bottom Hinge Adapter. Ensure the small silver studs on the adapters are positively engaged in cover.
- Page 12 Place the assembled barrier against the wall and mark position. Remove Wall Bracket from cover, hold in marked location, and mark screw positions. Screw into surface with the appropriate fixing method.
- Page 13 Slide Wall Bracket Cover into the Wall Bracket, and then push Top Underside Hinge Adapter and Bottom Hinge Adapter into the Wall Bracket Cover.
- Page 14 INSTALLATION ROOM DIVIDER OR SAFETY BARRIER Up to 6 panels including the gate may be used in open configurations providing the 2 end panels are securely fixed to a wall with the fixings provided.
- Page 15 INSTALLATION PLAYPEN ASSEMBLY Align the Gate Panel and one of the other panels together. Place the Corner Tube into the top hole first, pull the Corner Tube up so you can position the bottom of the Corner Tube into the base knob.
- Page 16 INSTALLATION TO ADD EXTRA PANELS Align opposite ends of panels, place the Corner Tube into the top hole first, then pull the Corner Tube up so you can position the bottom of the Corner Tube into the base knob. UNLOCKED LOCKED...
- Page 17 INSTALLATION TO REMOVE PANELS Turn base knob to the unlocked position, pull up on the Corner Tube and slide the bottom of the Corner Tube out from the base knob. With the Corner Tube removed, you can lift and remove the unwanted panel.
