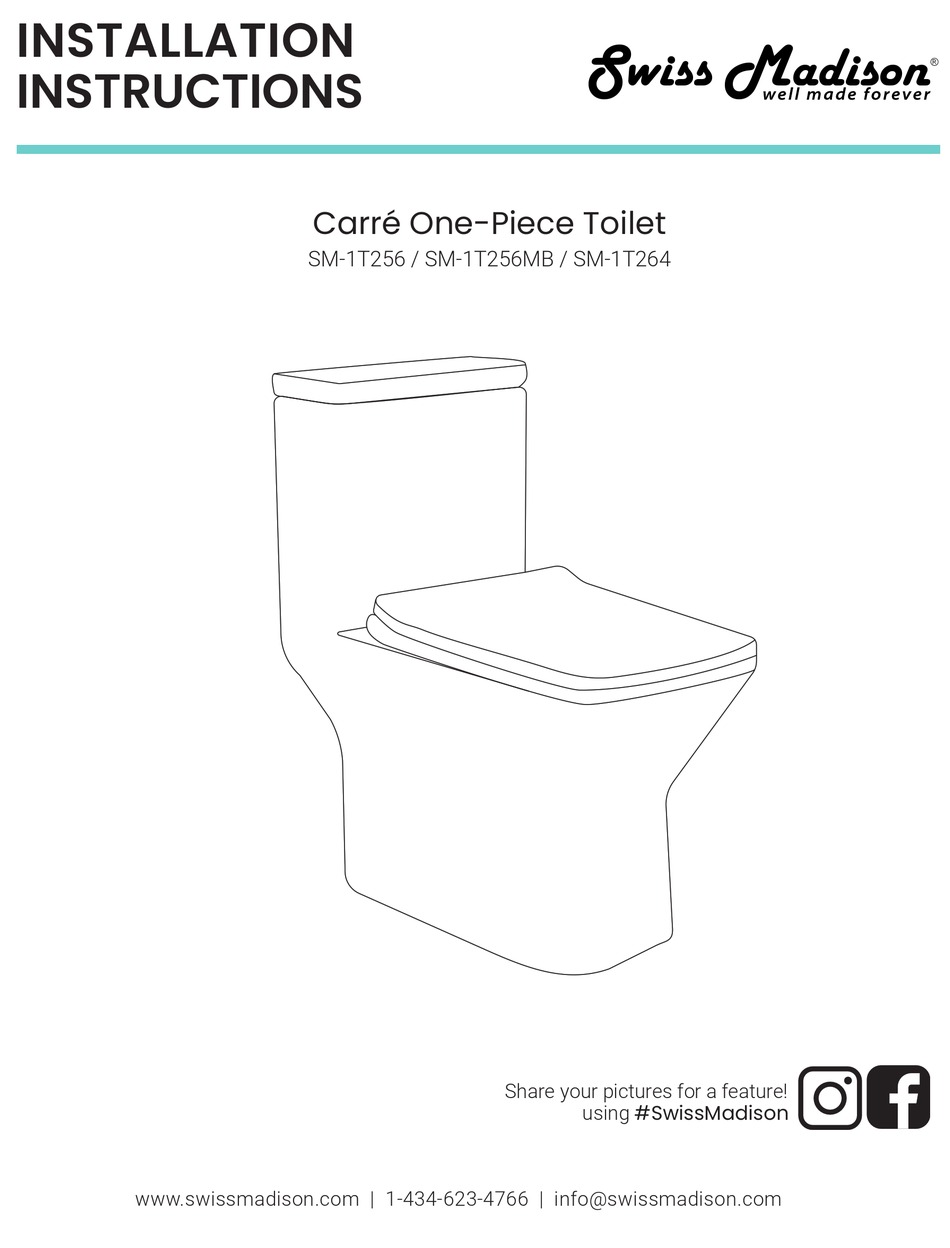

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Carré One-Piece Toilet SM-1T256 / SM-1T256MB / SM-1T264 Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison One-Piece Toilet. We appreciate your business and know you will enjoy your toilet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 3 ONE-PIECE TOILET ROUGH DIMENSIONS NOTE: Distance from wall to closest flange centerline must be listed as below. 15 ³⁄16” 5 5⁄8” 29 7⁄8” 25 ³⁄16” 16 ³⁄4” 15” 12” Rough-in Carré SM-1T256 - White SM-1T256MB - Matte Black 25 ³⁄16” x 15 ³⁄16“ x 29 7⁄8” 15 ¹⁄8”...
-
Page 4: Parts List
Putty Knife Flexible Supply Tube Hacksaw Screwdriver PARTS LIST · One-Piece Toilet · Wax Ring/ Gasket · Bolts · Side Cover Caps NOTE: Specialized tools may be necessary to install a Swiss Madison One-Piece Toilet, plumbing not included. — 3 —... -
Page 5: Installation Instructions
ONE-PIECE TOILET INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison One-Piece Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. - Page 6 ONE-PIECE TOILET INSTALLATION INSTRUCTIONS 3. Install Closet Bolts Install closet bolts to flange channel, turn 90° and slide into place 6” (152mm) apart and parallel to wall. · Closet Flange Closet Bolts 4. Install Wax Seal Invert toilet on floor (use cushion to prevent damage), and install wax ring evenly around waste flange ·...
- Page 7 ONE-PIECE TOILET INSTALLATION INSTRUCTIONS 5. Position Toilet on Flange Unplug floor waste opening and install toilet on closet flange so bolts project through mounting holes. · Loosely install retainer washers and nuts. Side of washers marked “THIS SIDE UP” must face up! ·...
- Page 8 ONE-PIECE TOILET INSTALLATION INSTRUCTIONS Toilet Seat Installation 1. Dissassemble · Disassemble the cover cap and the hinge. Pull 2. Construct Hinges · Insert screw and nut into the hole on the hinge. · Attach blind hole screw fixing to the bottom on the screw. 3.
- Page 9 ONE-PIECE TOILET INSTALLATION INSTRUCTIONS 4. Adjust and Cover Hinges · Be sure the hinge is all the way forward for proper seat fitting. · Place the covers onto the hinges. Incorrect: Correct: 5. Adjust and Attach Seat · Align seat to the hinges then firmly tighten the hinges. ·...
- Page 10 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
