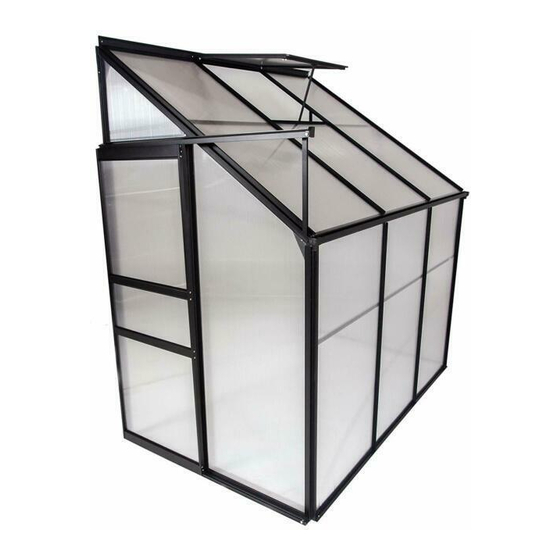

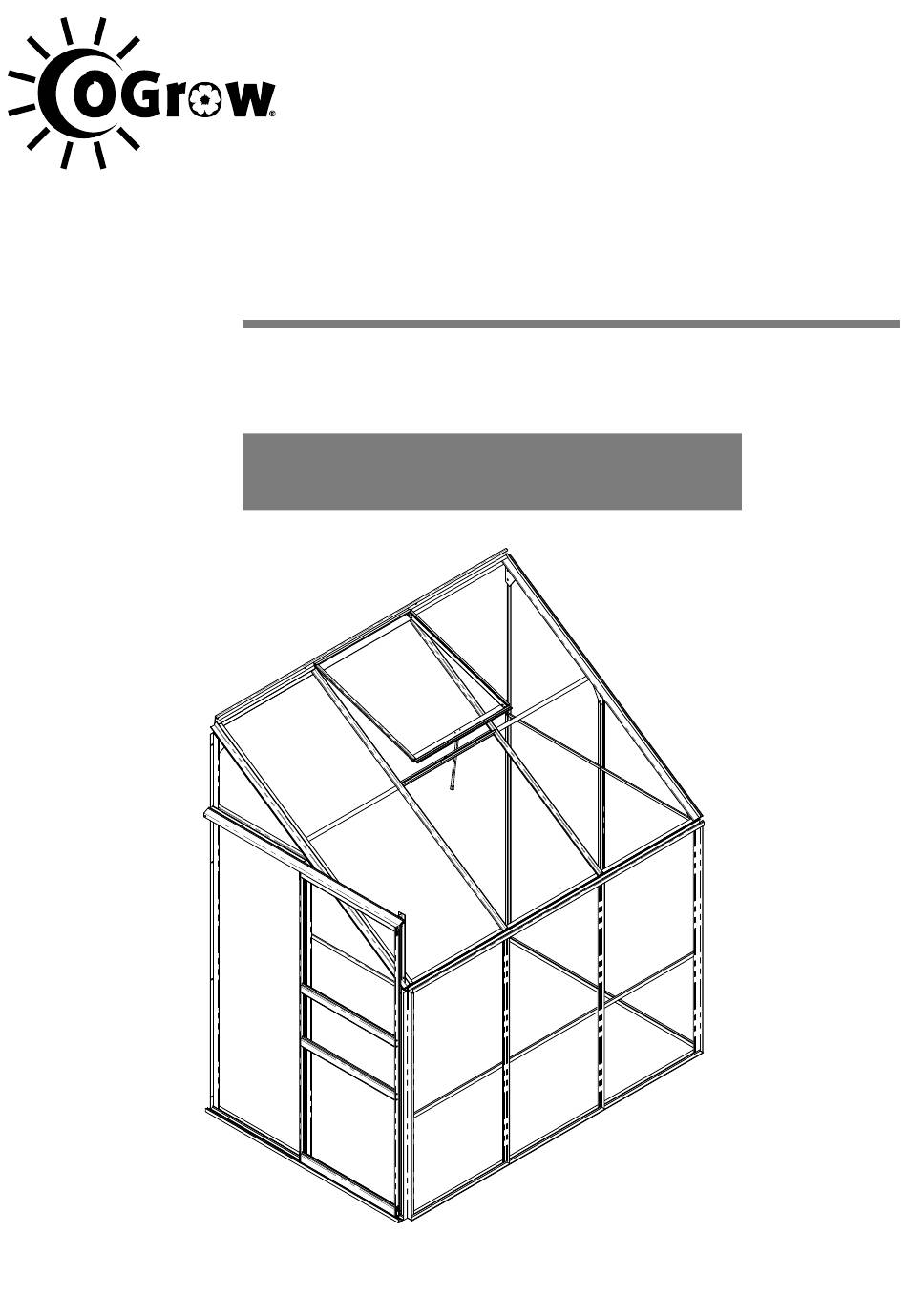

- Page 1 OGAL-46A GREENHOUSE ASSEMBLY I NSTR UCTIONS 1.888.965.3331...
- Page 2 TO PREVENT INJURY, READ AND UNDERSTAND THE GREENHOUSE ASSEMBLY INSTRUCTIONS BEFORE USE. Notes: 1. It takes about 2-3 hours to assemble the greenhouse by 2-3 persons. 2. The UV-protected side of the sheet is covered with opal white film and must face towards the sun.
- Page 3 www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 4 Rear Front Notes. 1. Remove approximately 5mm of film from all sheet edges before installing. Remove all film immediately after the construction completed. 2. The UV-protected side of the sheet is covered with opal white film and must face towards the sun. POLYCARBONATE PANEL Opal white film PC sheet...
- Page 5 Parts Image Image Item # Size Item # Size ST4x10 ST4x8 www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 6 OGAL-46A ASSEMBLY INSTRUCTIONS | Parts used in this section. Image Quantity Item # Align parts K-03b, K-A02, and K-04 each at a right angle, ensuring that the grooves are on the outside. www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 7 OGAL-46A ASSEMBLY INSTRUCTIONS | 2.3 & 2.4 Slide one bolt each into the two outside K-05 frames and the two inside K-A03. Then place K-A15 on theinside, connecting through those bolts. 2.1 & 2.2 Insert the bolts (K-A31) in through the holes in K-03b, K-A02 &...
- Page 8 OGAL-46A ASSEMBLY INSTRUCTIONS | 3.1 Slide each of the three K-A24 panels all the way down into each section along the longer wall. 3.2 Slide top frame K-A06 over all three panels. 3.3 Secure K-A06 with nuts and bolts, but do not tighten yet.
- Page 9 4 . 2 S l i d e t h r e e b o l t s i n t o K - 1 9 , K - 2 0 ( t a l l e s t f r a me s a d j a c e n t t o y o u r h o u s e ) a n d K - 0 9 .
- Page 10 OGAL-46A ASSEMBLY INSTRUCTIONS | 5.1 Slide the taller K-A22 panel in the section closest to the house, opposite of the door. 5.2 Slide K-A21 into the section adjacent to the door and K-A20 to the section across from K-A21. 5.3 Slide K-06 over the top of K-A21 and opening for the door.
- Page 11 OGAL-46A ASSEMBLY INSTRUCTIONS | 6.1 Connect K07 & K-A06 with K-21 by bolts and nuts. 6.2 Connect K-07 & K-09 with K-21 by bolts and nuts. 6.3 Connect K-07 & K-20 with K-23 by bolts and nuts. Parts used in this section.
- Page 12 OGAL-46A ASSEMBLY INSTRUCTIONS | Parts used in this section. Image Quantity Item # 7.1 Connect K-A07 and K-07 by the bolts and nuts. NOTE: the place for the bolts. www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 13 OGAL-46A ASSEMBLY INSTRUCTIONS | Parts used in this section. Image Quantity Item # 8.1 Slide the K-A23 window up 8.2 Insert K-17 frame to K-5 corner into the corner between K-19 and frame using K-21 brace and nuts K-06. Then insert the K-12 frame and bolts.
- Page 14 OGAL-46A ASSEMBLY INSTRUCTIONS | Parts used in this section. Image Quantity Item # 9.1 Insert the two K-A04 roof frames with bolts in K-A07 and tighten with nuts. 9.2 Slide two bolts into each K-A04, and align with holes in K-A06. Secure with nuts.
- Page 15 OGAL-46A ASSEMBLY INSTRUCTIONS | 10.1 Slide longer K-A25 panels into outer sections. 10.2 Slide shorter K-A27 panel into the middle section. Parts used in this section. Image Quantity Item # www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 16 OGAL-46A ASSEMBLY INSTRUCTIONS | 11.1.1 Insert two bolts into the grooves of K-13. 11.1.2 Align the bolts in the outer door frame K-13 with the holes in inner door frame K-12 and tighten the nuts. Parts used in this section.
- Page 17 OGAL-46A ASSEMBLY INSTRUCTIONS | 12.1 Connect K-A12 to the roof with K-07 by bolts and nuts. Parts used in this section. Image Quantity Item # 12.2 & 12.3 Connect K-A11 and K-A04 with the bolts left in K-A04 and tighten the nuts.
- Page 18 OGAL-46A ASSEMBLY INSTRUCTIONS | 13.1 Attach the two K-A09 sides to K-A08 top and K-A10 bottom. 13.2 Secure with two K-A31 nuts and bolts in each bottom corner and one same nuts and bolts in each top corner. 13.3 Slide K-A26 window panel into the created frame.
- Page 19 p a n e l p a n e l s...
- Page 20 OGAL-46A ASSEMBLY INSTRUCTIONS | 15.3 Secure door frame with nuts and bolts at bottom corners. Parts used in this section. Image Quantity Item # 15.1 & 15.2 Slide the assembled door, ensuring the pulley wheels align to the the middle notch of K-13 on top and K-03b on the bottom.
- Page 21 OGAL-46A ASSEMBLY INSTRUCTIONS | Slide the window into K-A07, check details as shown above. You should be able to pivot it up and down www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 22 OGAL-46A ASSEMBLY INSTRUCTIONS | 17.1 Drill holes into the wall of your house adjacent to the Parts used in this section. ten holes in the outer frames of the greenhouse (K-19 and Image Quantity Item # K-20 at the sides and K-A07 at the top). Insert wall mounts.
- Page 23 OGAL-46A ASSEMBLY INSTRUCTIONS | 18.1 18.2 18.3 18.1 18.2 18.1 Slide the two G-P2 connectors into where F-C07 and F-C07a each joins F-06 and F07. 18.3 Parts used in this section. Image Quantity Item # 18.2 and 18.3 Cap off F-13 with G-P3L at the left end and G-P3R at the right end.
- Page 24 Advice It is not necessary but we would advise: For additional strength, you can also use some glue or tapes between the polycarbonate panel and the aluminium frame to enhance the stability. Note: Silicone sealant and glue gun are not included in our tool kit.
