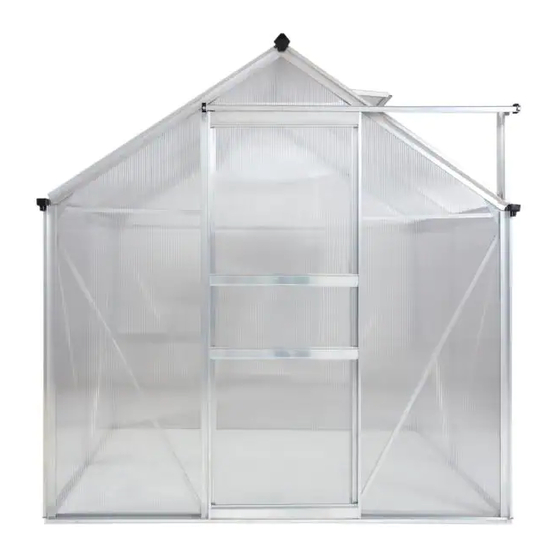

- Page 1 OGAL-466A GREENHOUSE ASSEMBLY INS TRU CTION S 1.888.965.3331...
- Page 2 TO PREVENT INJURY, READ AND UNDERSTAND THE GREENHOUSE ASSEMBLY INSTRUCTIONS BEFORE USE. Notes: 1. It takes about 2-3 hours to assemble the greenhouse by 2-3 persons. 2.The UV-protected side of the sheet is covered with opal white film and must face towards the sun. 3.Remove approximately 2 inches of film from all sheet edges before installing.Removing all film immediately after the construction is completed...
- Page 3 OGAL-466A 77 inches x 72 inches x 48 inches www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 4 www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 5 www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 6 | OGAL-466A ASSEMBLY INSTRUCTIONS www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 7 OGAL-466A ASSEMBLY INSTRUCTIONS | 2.1.1 Insert the bolts (F-B14) into the holes. 2.1.2 Insert F-05 into the bolts. Parts used in this section. Image Item# Quantity 2.1.3 & 2.1.4 Screw and tighten with nuts. www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 8 C o n n e c t F - 0 5 , F - 1 9 b , F - 1 8 b y t h e u p p e r b o l t . O n c e t h e n o t c h o n F - 1 9 b i s a l i g n e d w i t h t h e t o p o f F - 0 5 , y o u c a n s c r e w t h e n u t t i g h t o n t h e b o l t .
- Page 9 OGAL-466A ASSEMBLY INSTRUCTIONS | 4.1 Connect F-41 & F-29 to F-05 with bolts and nuts. Maintain a 3/4 of an inch distance between the bolt and top of F-05. 4.2 Connect F-29 to F-A02 with F-A14 bolt, do not tighten the nut yet.
- Page 10 | OGAL-466A ASSEMBLY INSTRUCTIONS 5.1 Insert F-23 into the bolt to connect to F-04 and tighten the nuts. 5.2 Insert one bolt into F-23. Then perpendicularly attach F-41, and tighten the nut. Maintain a 3/4 of an inch from top of F-23 to bolt.
- Page 11 OGAL-466A ASSEMBLY INSTRUCTIONS | 6.1 Connect F-30 and F-05 to the lowest 6.2 Connect F-30 and F-04 with bolts and nuts. notch of F-19b with bolts and nuts. NOTICE: DON'T TIGHTEN NUTS. NOTICE: The notch of F-19b MUST be aligned with the top of F-05.
- Page 12 | OGAL-466A ASSEMBLY INSTRUCTIONS 7.1 Insert F-08/09/10/11 into the bolt and tighten the nuts. 7.2 Insert one bolt into F-08/09, connect F-18 and F-08/09 with the bolt & nut and tighten. Image Item# Quantity 7.3 Insert bolt into F-10/11, connect F-17 and F10/11 with bolt & nut, connect F-17 to F-05 by the hole of the bolt &...
- Page 13 OGAL-466A ASSEMBLY INSTRUCTIONS | Insert the panels into each designated area. Parts used in this section. Image Item# Quantity www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 14 | OGAL-466A ASSEMBLY INSTRUCTIONS 9.1 Insert the bolts and nuts into each hole of 9.2 Slide the bolts into the grooves of F-23. F-A06, but don't tighten the nuts yet. Slide the bolts into the grooves of F-05. Parts used in this section.
- Page 15 OGAL-466A ASSEMBLY INSTRUCTIONS | 10.1 Insert the bolts and nuts into each hole of 10.2 Insert two bolts into F-08/09/10/11. F-A06, but don't tighten the nuts yet. 10.3 Insert bolts and nuts into the hole of F-19b as shown. Parts used in this section.
- Page 16 | OGAL-466A ASSEMBLY INSTRUCTIONS 11.1 Insert F-06/07 through the bolts in F-19b and F-A06. Tighten the nuts. Parts used in this section. Image Item# Quantity 11.2+11.3 Insert two bolts into the grooves of F06 and F07. Then attach F-19 perpendicularly side which has three holes should face upward.
- Page 17 OGAL-466A ASSEMBLY INSTRUCTIONS | 12.1 Secure one bolt into F-06 and F-07 through the hole in F-A7. 12.2 Insert one bolt into F-06. Parts used in this section. www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 18 | OGAL-466A ASSEMBLY INSTRUCTIONS 13.1 Insert F-40 into the top corner joining F-06 and F07. Connect F-12 and F-19 by bolt & nut. Image Item# Quantity Parts used in this section. www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 19 S l i d e t w o b o l t s i n t o F - 2 4 w h i c h i s i n t h e r i g h t s i d e a n d o n e b o l t i n t o F - 2 4 i n t h e l e f t s i d e . 1 4 .
- Page 20 | OGAL-466A ASSEMBLY INSTRUCTIONS Image Item# Quantity www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 21 OGAL-466A ASSEMBLY INSTRUCTIONS | Slide F-A05 into F-A06 as shown. 16.1 Connect F-28 and F-24 with the bolts placed into F-24 and tighten the nuts. Parts used in this section. Image Item# Quantity www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 22 1 7 . 1 . 2 1 7 . 1 . 1 I n s e r t t h r e e b o l t s i n t o t h e g r o o v e s o f F - 1 3 .
- Page 23 OGAL-466A ASSEMBLY INSTRUCTIONS | 18.1 Slide two units F-26 over the sides of the F-37 window panel. Parts used in this section. 18.2 Slide F-27 over the bottom of the F-37 window panel. Image Item# Quantity Slide F-25 over the top edge of the window panel.
- Page 24 | OGAL-466A ASSEMBLY INSTRUCTIONS 19.1 Slide the window into F-A07 according to the diagram. www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 25 p a n e l p a n e l s...
- Page 26 | OGAL-466A ASSEMBLY INSTRUCTIONS 21.1 & 21.2 Slide the assembled door, ensuring the pulley wheels align to the middle notch of F-13 on top and F-03b on the bottom. 21.3 Secure door frame with nuts and bolts at bottom corners.
- Page 27 OGAL-466A ASSEMBLY INSTRUCTIONS | 22.1 & 22.2 Insert four G-P1 units into the corners of front and back walls of the greenhouse by sliding the rectangular section into each F-C05a panel. Parts used in this section. Image Item# Quantity www.kshbrands.com support@kshbrands.com...
- Page 28 | OGAL-466A ASSEMBLY INSTRUCTIONS 23.1 Slide the two G-P2 connectors into where F-A07 joins F-06 and F07. 23.2 & 23.3 Cap off F-13 with G-P3L at the left end and G-P3R at the right end. Secure with nuts and bolts.
- Page 29 OGAL-466A ASSEMBLY INSTRUCTIONS | When the window is closed, the handle of F-20 could be rotated to the right and xed in place. www.kshbrands.com support@kshbrands.com 1.888.965.3331...
- Page 30 | OGAL-466A ASSEMBLY INSTRUCTIONS www.kshbrands.com support@kshbrands.com 1.888.965.3331...
