Power On/Off; Additional Information; Warranty Information; Quick Installation - D-Link DSN-6200 Series Quick Installation Manual

3. If you purchased the DSN-6200/6500 Series with a
second controller (for redundancy) please install the

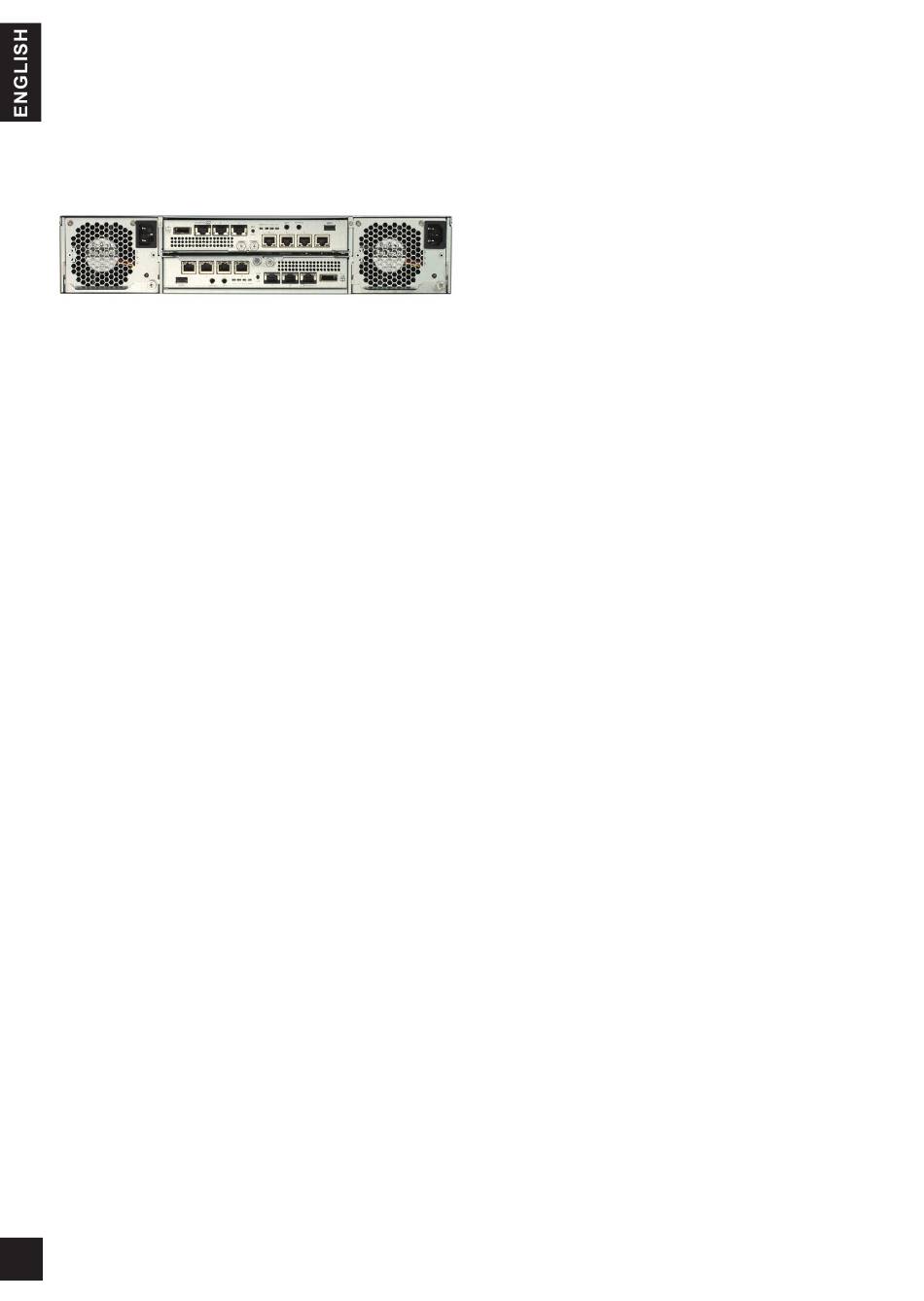

controllers as pictured below
Note: When inserting the upper controller please make sure
you insert it upside down. If inserted incorrectly it will
damage the connector pins.

Power On/Off

The power button is located next to the right front handle.
To turn the system on, press the power button once. The
system will perform a booting process which takes a few
minutes.
If it becomes necessary to power down the system, it is
recommended to do a normal, controlled shutdown
through the Web UI to ensure all data is flushed from the
cache first.
Configuration
The D-Link DSN-6200/6500 Series includes a simple-to-
use web UI for integration and management. Be sure to
connect the LAN cable, open a browser and enter:
http://192.168.0.32
A dialog box for authentication will pop up. Please enter
the following information.
User name: admin
Default password: 123456
After login, select the functions listed on the left hand side
to start your configuration.

Quick Installation

To make sure that there are some free drives installed
in the system, check the hard drive details in "/ Volume
configuration / Physical disk".
4
D-Link DSN-6200/6500 Series Quick Installation Guide
.
1
1. Click "Quick installation" and follow the steps to set
up the system name and date / time.
2. Confirm the management port and DNS IP addresses
are correct and click "Next".
3. Set up the data port IP and click "Next".
4. Set up the RAID level and volume size and click
"Next".
5. Check all items, and click "Finish".
Setup Microsoft iSCSI initiator
To download the latest iSCSI initiator, please visit the
Microsoft website. This example is based on Microsoft
Windows Server 2008 R2.
1. Run Microsoft iSCSI Initiator.
2. Input the IP address or DNS name of the target and
then click "Quick Connect".
3. Click "Done".
4. Your Computer can now connect to an iSCSI disk.

Additional Information

If you are encountering problems setting up your
network, please refer to the DSN-6200/6500 Series user
manual that can be obtained from the D-Link website.
It contains many more rules, charts, explanations, and
examples to help you get your network up and running.
Additional help is available through our offices listed at
the back of the user manual or online. To find out more
about D-Link products or marketing information, please
visit the website http://www.dlink.com.

Warranty Information

The D-Link Limited Lifetime Warranty information is
available at http://warranty.dlink.com/
The images used in this manual may not reflect that of
1
the supplied product.
