Summary of Contents for Soltaro AIO2-BTLV Series

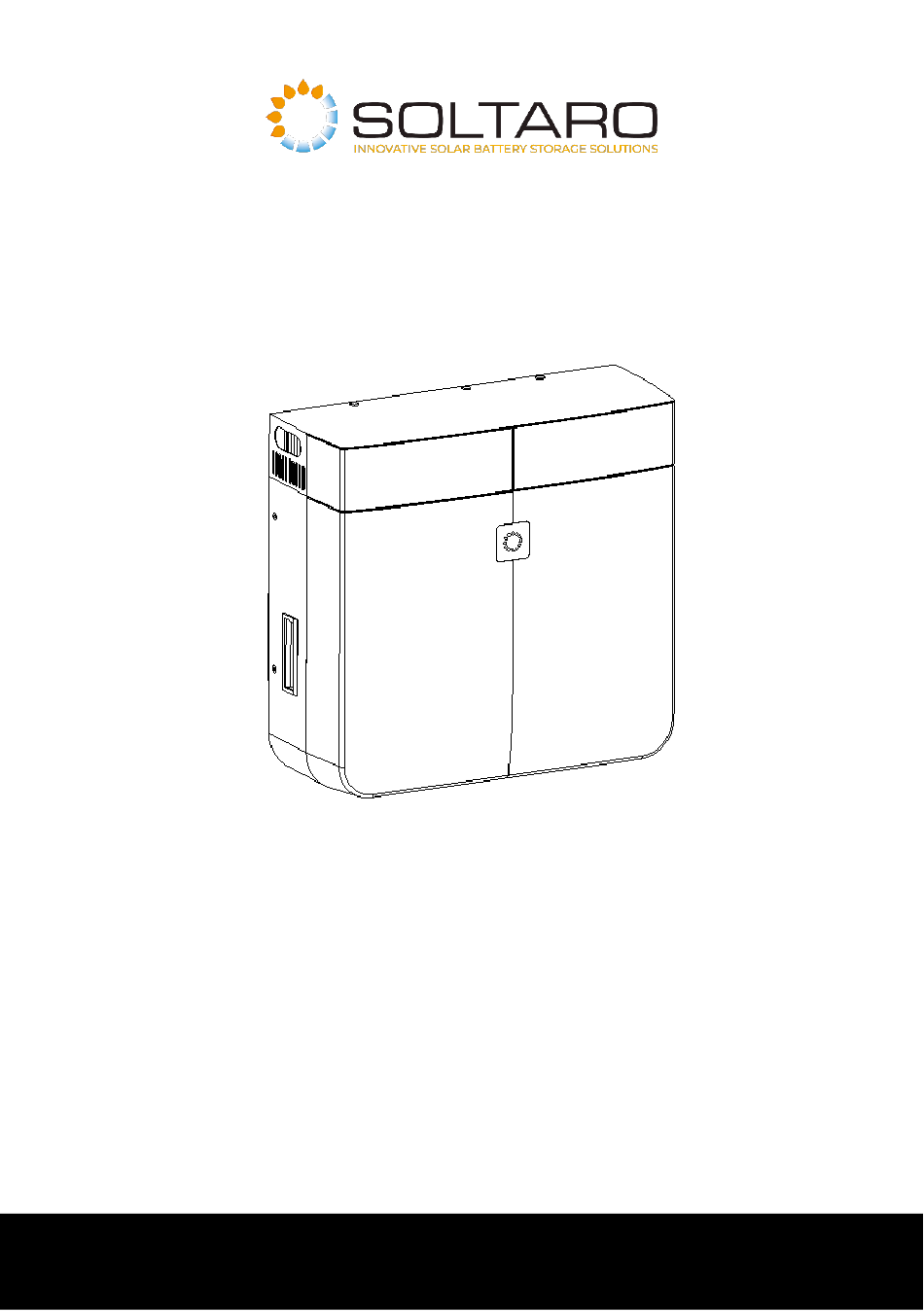

- Page 1 Operating Manual AIO2-BTLV Series Version:DM-AIO2-BTLV-EN 1. 0...
-
Page 2: Table Of Contents
CONTENTS About This Manual ................1 Products Covered by This Manual ........... 1 Symbols Used ................ 1 Storage of the Manual ............1 Safety ....................2 Intended Use ................2 Important Safety Instructions ........... 2 Scope of Delivery ................3 Product Description ................ -
Page 3: About This Manual
1. About This Manual 1.1 Products Covered by This Manual AIO2-BTLV Series Li-ion batteries. AIO2-BTLV-5KWH AIO2-BTLV-10KWH Target Group This document is intended for qualified electricians. Any electrical installation and maintenance on this inverter must be performed by qualified electricians in compliance with standards, wiring rules or requirements of local grid authorities or bodies. -
Page 4: Safety
2. Safety 2.1 Intended Use The AIO2-BTLV Series is a lithium battery for an energy storage system. It must only be connected with a SOLTARO hybrid inverter/battery inverter. To prevent personal injury and property damage and to ensure long- term... -
Page 5: Scope Of Delivery
3. Scope of Delivery Item Designation 5kWh/10kWh Battery 5kWh/10kWh Wall Mounting Bracket 5kWh/10kWh Screws for Fixing Mounting Bracket Manual Accessories for different applications may be different. -
Page 6: Product Description
4. Product Description Thank you for choosing a SOLTARO battery. Features of the SOLTARO battery are ahead of the field and should be understood prior to install. Figure 1. View of the AIO2-BTLV Series Lithium Battery Position Designation Connection Area Cover For All-in-one application with hybrid inverter, the cover is not included. -
Page 7: Electrical Schematic For Aio2-Btlv
5. Electrical schematic for AIO2-BTLV 6. Mounting 6.1 Requirements for Mounting Check to make sure the installation site does not fall into any of the following conditions: If it does, then a risk assessment will be required. Please apply safe lifting procedures when installing the battery. 2 people or mechanical aids are recommended. - Page 8 Prone to be damaged by sea water. • Prone to be flooded or high levels of snow falls. • Close to corrosive gas or liquid (for example, locations where • chemicals are processed or stored). Can be installed indoors or outdoors •...
-
Page 9: Mounting The Battery (5Kwh)
6.2 Mounting the Battery (5kWh) Procedure: The battery must be mounted in upright position with a maximal tilt angle of 15 degree. ＜15° Space Recommendation Position Min.size Left Right 1200（inverter not included） Bottom Front STEP 1: Prepare the battery box and remove the upper cover (fixed by buckle) - Page 10 STEP 2: Install the remaining bottom frame accessories on the 5 kW battery (when installing, take out the 3 rubber plugs on the bottom frame accessories, and then use 3 M5-10 stainless steel cross round head triple combination screws to fix the bottom frame on the battery, and then put back the rubber plug) STEP 3 : Drill holes on the wall (diameter 12mm, drilling depth≥...
- Page 11 STEP 4: Install the rack with 5 M8-60 hexagon socket screws unscrewed from the expansion screws in step 3. STEP 5: Hang the battery (note: make sure that the four hanging buckles on the side are locked, otherwise the strength is not enough) STEP 6: Install the front cover...
-
Page 12: Mounting The Battery (10Kwh)
6.3 Mounting the Battery (10kWh) Procedure: The battery must be mounted in upright position with a maximal tilt angle of 15 degree . ＜15° Space Recommendation Position Min.size Left Right 1200（inverter not included） Bottom Front STEP 1: Prepare the battery box and remove the upper cover (fixed by buckle) - Page 13 STEP 2: Install the remaining bottom frame accessories on the 10 kW battery (when installing, take out the 3 rubber plugs on the bottom frame accessories, and then use 3 M5-10 stainless steel cross round head triple combination screws to fix the bottom frame on the battery, and then put back the rubber plug) STEP 3 : Drill holes on the wall (diameter 12mm, drilling depth≥...
- Page 14 STEP 4: Install the rack with 6 M8-60 hexagon socket screws unscrewed from the expansion screws in step 3. STEP 5: Hang the battery (note: make sure that the six hanging buckles on the side are locked, otherwise the strength is not enough) STEP 6: Install the front cover...
-
Page 15: Electrical Connection
7. Electrical Connection 7.1 Overview of the Connection Area Position Designation Battery Power Ports DC Isolator (125A) BMS Ports Grounding Port Power Switch 7.2 Battery Power Connection Battery connection diagram... -
Page 16: Bms Communication Connection
Procedure: Before connecting the power cable, make sure the battery is turned off, and the DC isolator is disconnected. Power Cables are supplied with included accessories kit, please confirm they are correct before installation. STEP 1: Install the connectors to battery power ports; make sure the polarities •... -
Page 17: Parallel Connection Of Multi-Batteries
7.4 Parallel Connection of Multi-batteries Up to 3 units of AIO2-BTLV Series batteries with the same capacity can be parallel connected in one system. Parallel Connection Diagram ・・・up to 5 units Procedure: STEP 1: Connect all the positive terminals of power ports of each battery. -
Page 18: Operating Of The Battery
8. Operating of the Battery 8.1 LED Indicator The LED indicates the operating state of battery and also battery SOC. Battery status can be monitored remotely via inverter monitoring portal when installed with Soltaro Hybrid Inverters. Explanation The battery’s status is normal; Blue... -
Page 19: Technical Data
When carrying out battery maintenance, please pay attention to the following matters: Only authorized service personnel are allowed to install the • battery or perform servicing and maintenance. The battery case can be cleaned by dry cloth or soft brush if •... -
Page 20: Contacts
Contacts: Head Office & Showroom 8 Mohr Street, Tullamarine, VIC, Australia 3043 Tel:+61 1300 276 582 Email: service@soltaro.com Support Head Office service.au@soltaro.com Australian Support UK/Europe Office Unit 8, High Grounds Industrial Est., Worksop, Notts, S80 3AF, United Kingdom Tel:+44 (0)1909 807 577 service.uk@soltaro.com...
