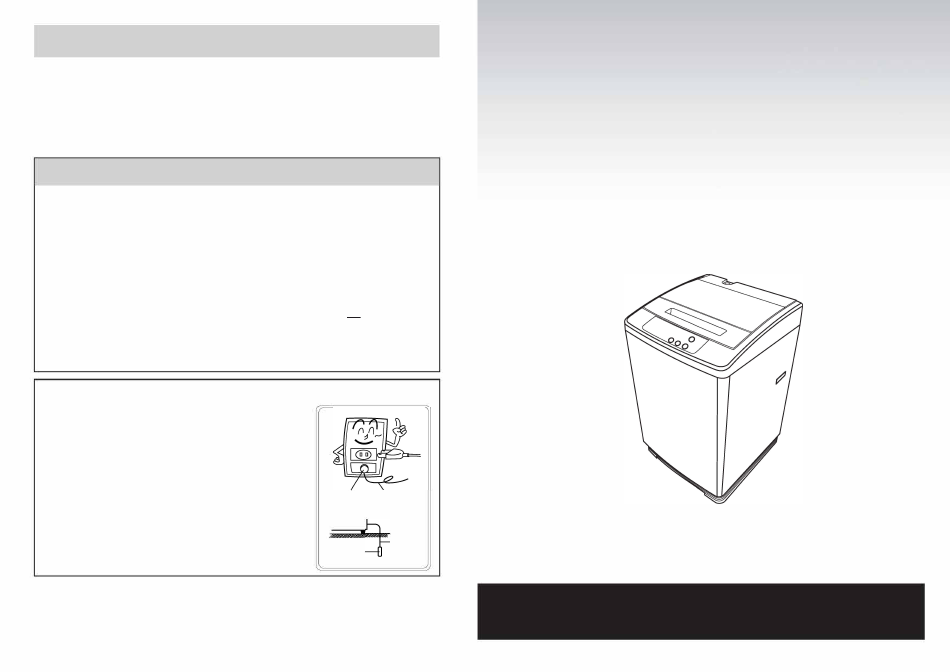

Whirlpool WVFC750AJGR Instruction Manual

SPECIFICATIONS
520(W)x535(D)x907(H) mm
Dimensions
Weight 29kg
Power Source AC220-240V 50Hz
Washing & Spin Capacity 7.5kg
350W
Power Consumption
0.03 MPa - 0.8 MPa
Required Water
( 0.3 kgf/cm
Pressure
WARNING - This appliance must be earthed.
FOR WASHER PLUG REMOVE 3 PIN
IMPORTANT
The wires are coloured in accordance with the following code:
Green/yellow: Earth Light Blue: Neutral
The wires in the this appliance may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows:
• The wire which is coloured green and yellow must be connected to the terminal
in the plug which is marked with the letter E or by the earth symbol -:!:-
or coloured green or green and yellow.
• The wire which is coloured light blue must be connected to the terminal which is
marked with the letter N or coloured white.
• The wire which is coloured brown must be connected to the terminal which is marked
with the letter L or coloured black.
FOLLOWING CAUTIONS ARE FOR WASHER USING DOUBLECORE
CORD ONLY.
• If the 2-pin type of socket-outlet has a grounding terminal,
securely attach the end of the Grounding Wire to the
terminal.
• When grounding the washer, connect the grounding wire
before plugging in the Power Cord.
• If the 2-pin type of the socket-outlet has no grounding
terminal, consult your nearest dealer or securely attach
the end of Grounding Wire to a suitable grounding point,
such as a metal cold water pipe.
Never connect the Grounding Wire to a gas pipe.
• Unplug the Power Cord before disconnecting the
Grounding Wire.
2 -8 kgf/cm 2
)
( BS Standard Plug With 13 Amp Fuse)
Brown: Live
Grounding Grounding
Terminal Wire Of
Washer
'
Grounding
Grounding
Wire
Rod
INSTRUCTION MANUAL
FULLY AUTOMATIC WASHING MACHINE
Before operating this washing machine, please
read the instructions carefully and completely.
Whft!Pool
WVFC750AJGR
