Overview - 0N3 X5 System User Manual

1 Overview
The X5 System consists of three devices: Wireless Handheld, Base Station and Charging Station battery charger.
The Wireless Handheld provides all the features of an advanced HMI panel and the potential of an on-board controller that
can interface with the most modern PLCs, all within a compact, lightweight and ergonomic design. Wireless connection
with certification for Safety Controls makes this product the ideal solution for industrial applications. Integrated devices
(Keypad, Potentiometers, Handwheel) can be fully programmed assuring a quick use with your automation project.
Wireless Handheld is fully programmable with JMobile.
The safety Wireless link between the Wireless Handheld and the Base Station can be activated/deactivated dynamically
through a dedicated pairing procedure. The activation status of the safety link is indicated on Wireless Handheld by the
illuminated emergency button and by a status LED, on Base Station by a light device installed on board the machine
and by a status LED.
All configuration and control commands selected through the Keypad or the Touchscreen Display, the Handwheel and
the Potentiometers status, the Emergency Stop Button, Enabling Button and Selector status are sent by the Wireless
Handheld to the Base Station.

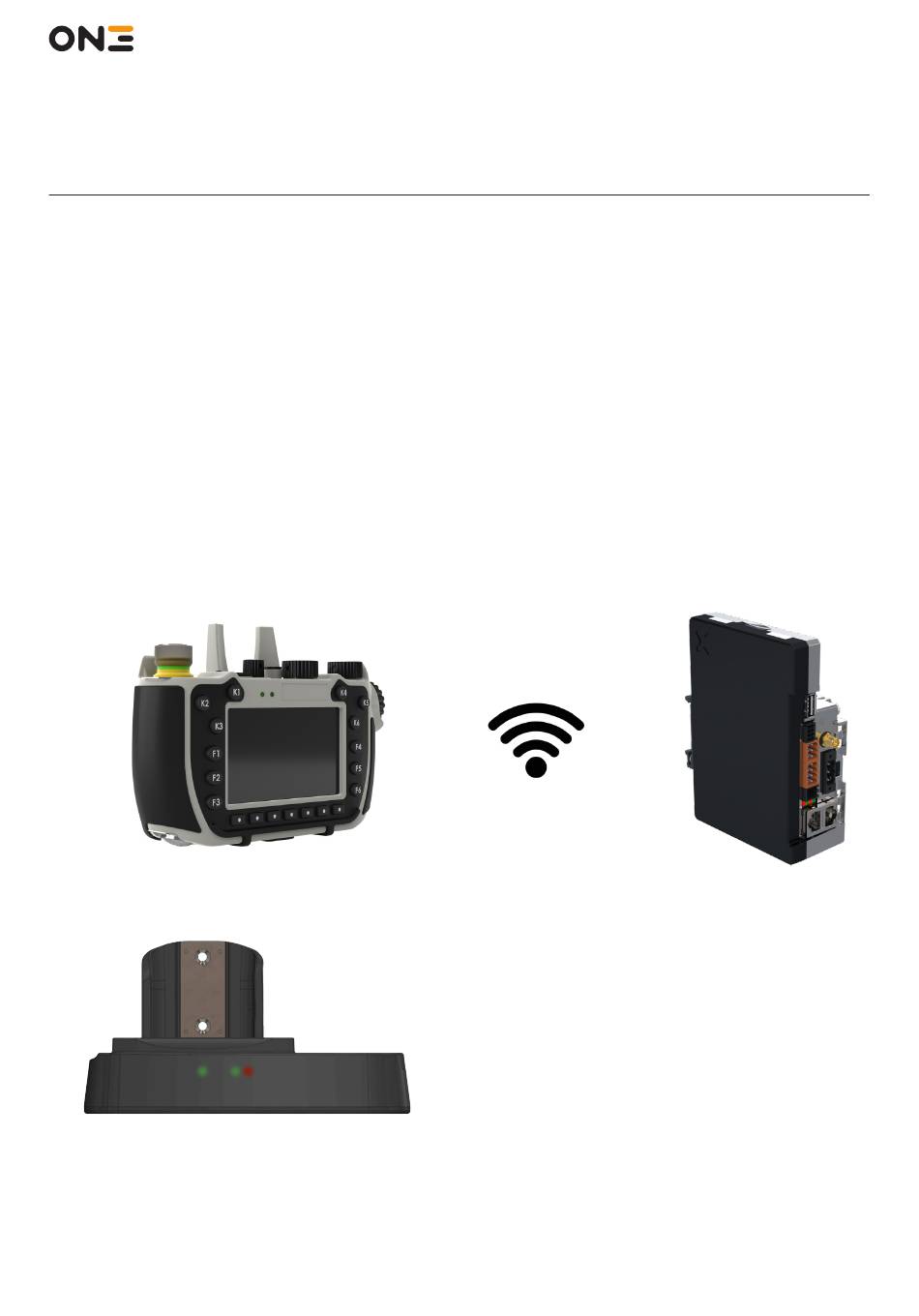

Wireless Link
Wireless Handheld Base Station
Charging Station
