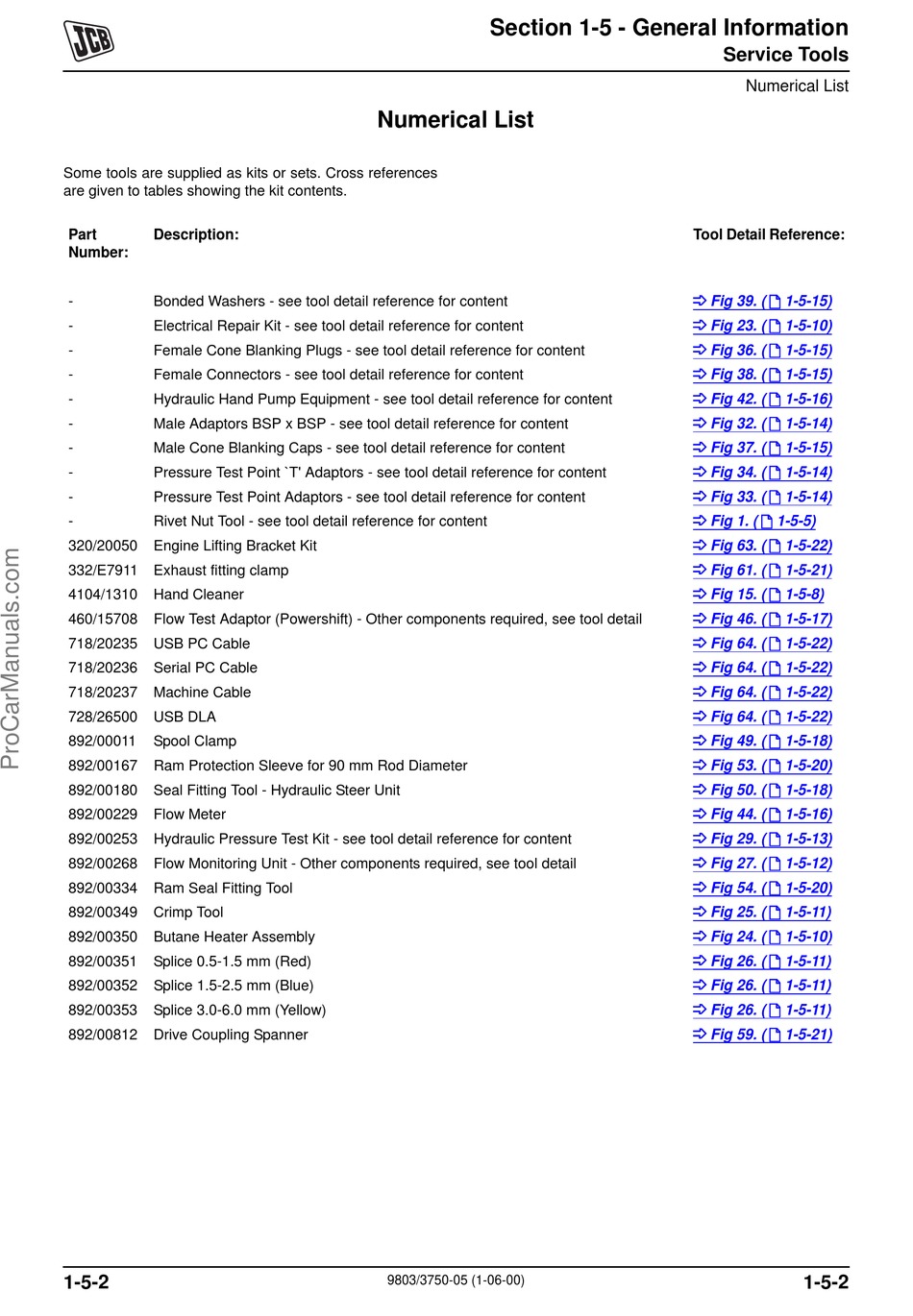

Numerical List; Service Tools - jcb 540-170 Service Manual

Some tools are supplied as kits or sets. Cross references
are given to tables showing the kit contents.
Part Description:
Number:
- Bonded Washers - see tool detail reference for content
- Electrical Repair Kit - see tool detail reference for content
- Female Cone Blanking Plugs - see tool detail reference for content
- Female Connectors - see tool detail reference for content
- Hydraulic Hand Pump Equipment - see tool detail reference for content
- Male Adaptors BSP x BSP - see tool detail reference for content
- Male Cone Blanking Caps - see tool detail reference for content
- Pressure Test Point `T' Adaptors - see tool detail reference for content
- Pressure Test Point Adaptors - see tool detail reference for content
- Rivet Nut Tool - see tool detail reference for content
320/20050 Engine Lifting Bracket Kit
332/E7911 Exhaust fitting clamp
4104/1310 Hand Cleaner
460/15708 Flow Test Adaptor (Powershift) - Other components required, see tool detail
718/20235 USB PC Cable
718/20236 Serial PC Cable
718/20237 Machine Cable
728/26500 USB DLA
892/00011 Spool Clamp
892/00167 Ram Protection Sleeve for 90 mm Rod Diameter
892/00180 Seal Fitting Tool - Hydraulic Steer Unit
892/00229 Flow Meter
892/00253 Hydraulic Pressure Test Kit - see tool detail reference for content
892/00268 Flow Monitoring Unit - Other components required, see tool detail
892/00334 Ram Seal Fitting Tool
892/00349 Crimp Tool
892/00350 Butane Heater Assembly
892/00351 Splice 0.5-1.5 mm (Red)
892/00352 Splice 1.5-2.5 mm (Blue)
892/00353 Splice 3.0-6.0 mm (Yellow)
892/00812 Drive Coupling Spanner
