jcb 540-170 Service Manual page 48

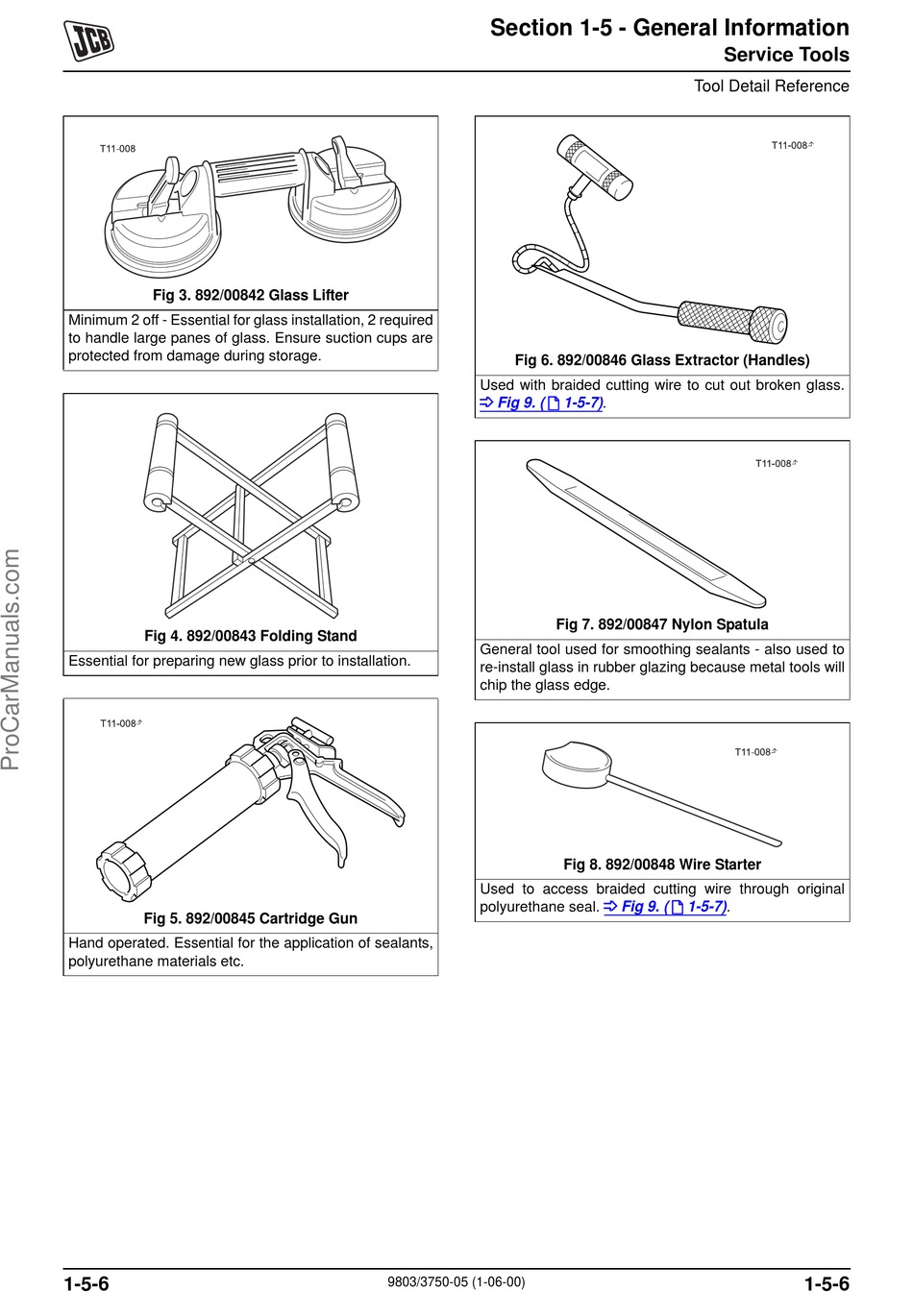

Fig 3. 892/00842 Glass Lifter
Minimum 2 off - Essential for glass installation, 2 required
to handle large panes of glass. Ensure suction cups are
protected from damage during storage.
Fig 4. 892/00843 Folding Stand
Essential for preparing new glass prior to installation.
Fig 5. 892/00845 Cartridge Gun
Hand operated. Essential for the application of sealants,
polyurethane materials etc.
1-5-6
Section 1-5 - General Information
Fig 6. 892/00846 Glass Extractor (Handles)
Used with braided cutting wire to cut out broken glass.
K Fig 9. ( T
Fig 7. 892/00847 Nylon Spatula
General tool used for smoothing sealants - also used to
re-install glass in rubber glazing because metal tools will
chip the glass edge.
Used to access braided cutting wire through original
polyurethane seal.
9803/3750-05 (1-06-00)
Service Tools
Tool Detail Reference
1-5-7).
Fig 8. 892/00848 Wire Starter
K Fig 9. ( T
1-5-7).
1-5-6
