Positional Type' Hydraulic Adaptors - jcb 540-170 Service Manual

Fitting Procedure
On a typical machine, some hydraulic components may
utilise `Positional Type' SAE Hydraulic Adaptors. When
fitting `Positional Type' Hydraulic Adaptors it is important to
adopt the following procedure. If this procedure is not
followed correctly, damage to the `O' ring seal 4-A can
occur resulting in oil leaks.

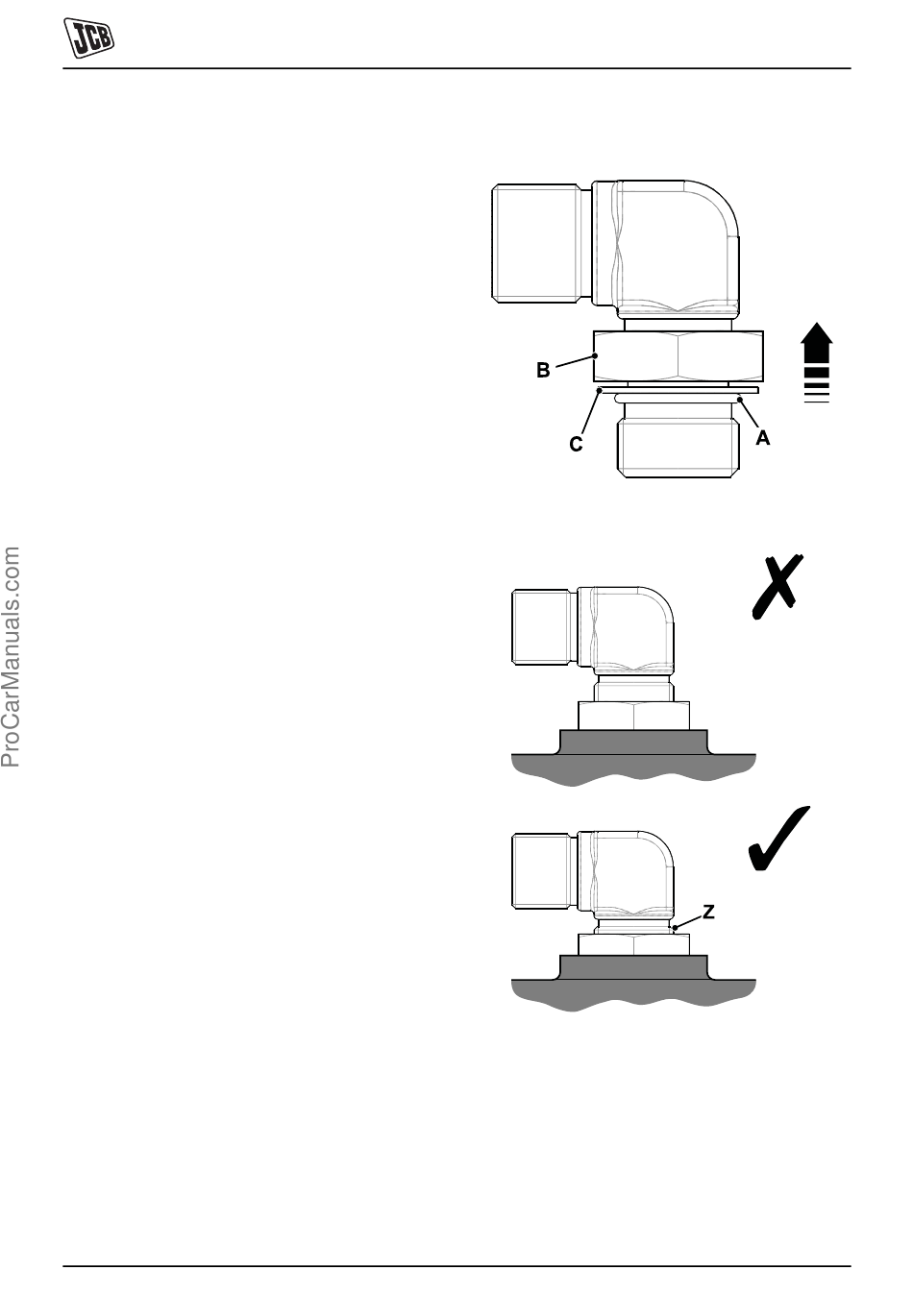

1 Ensure the locknut 4-B is screwed back onto the body
of the adaptor as far as possible as shown.
2 Check the `O' ring backing washer 4-C is a tight fit on
the adaptor. Note that the washer should not move
freely, if the washer is slack do not use the adaptor.
3 Check the `O' ring 4-A is fitted and that it is free from
damage or nicks. Before fitting the adaptor, smear the
`O' ring with clean hydraulic fluid.
Note: The dimensions and shore hardness of the `O' ring
is critical. Should it become necessary to replace the `O'
ring, ensure that only JCB Genuine Parts are used.
4 Screw the adaptor into the port of the hydraulic
component as far as possible, so that ALL the threads
engage and the `O' ring is correctly seated against
the sealing face.
5 Set the angular position of the adaptor as required,
then secure by tightening the locknut 4-B.
Note: When fitted correctly no more than one thread
should be visible at 5-Z as shown.
6 Torque tighten the locknut to 81 Nm (60 lbf ft).
1-4-10

`Positional Type' Hydraulic Adaptors

9803/3750-05 (1-05-00)
Section 1-4 - General Information
`Positional Type' Hydraulic Adaptors
Fig 4.
Fig 5.
Torque Settings
1-4-10
