KUBE FAMILY
MODELS: S6300, S6306, S6307, S6340, S6346, S6347

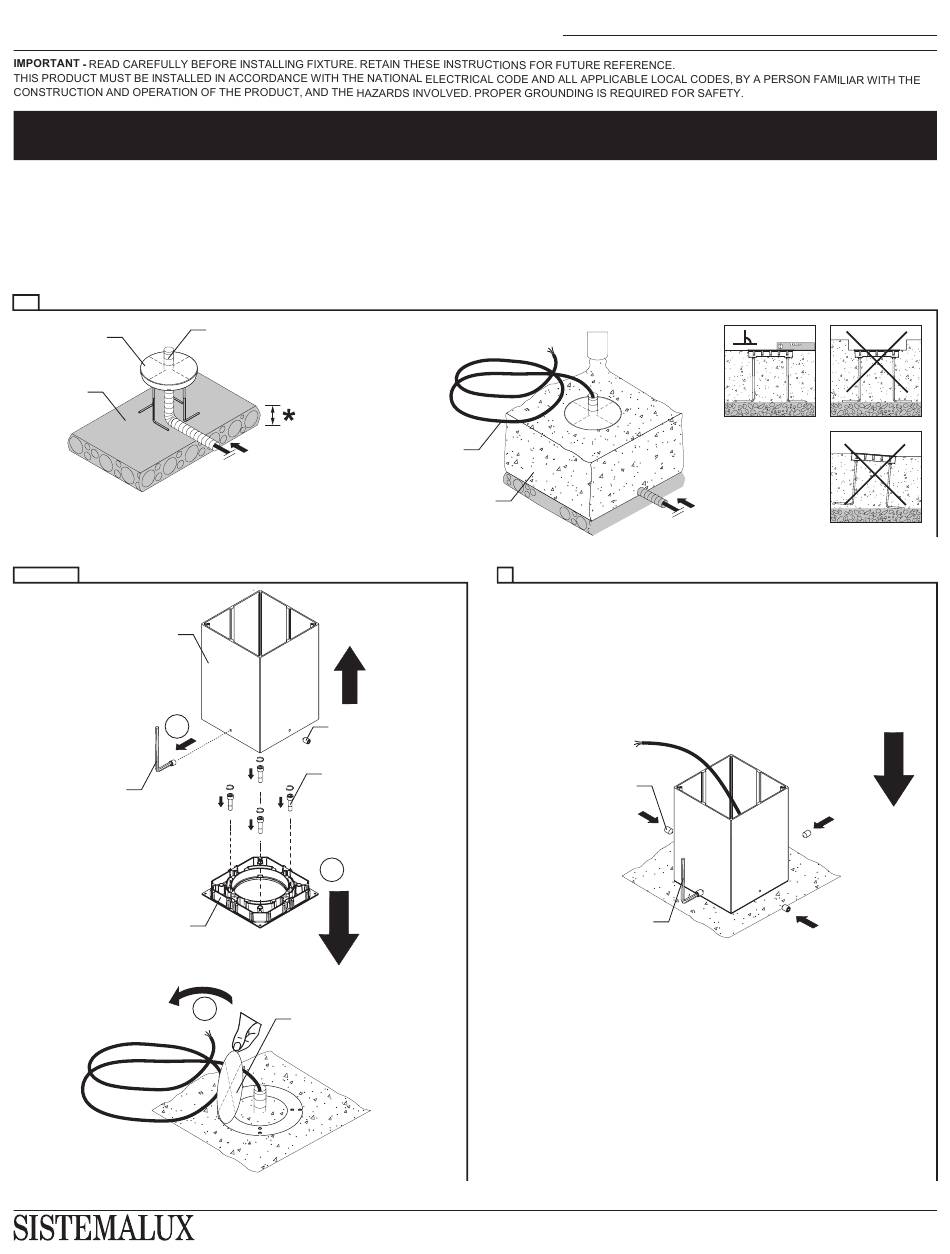

GROUND INSTALLATION IN CONCRETE WITH FLANGE (S5350, S6309).
INTEGRAL DRIVER 120V(120) OR 120-277V (UNV), DIMMING 0-10V (D10)
A- INSTALL FLANGE ACCESSORY (TO BE ORDERED SEPERATELY) IN CONCRETE, FLUSH WITH MOUNTING SURFACE
B- REMOVE STICKER FROM THE FLANGE.
C- USING THE ALLEN KEY (INCLUDED), UNSCREW THE BOLLARD'S SET SCREWS AND REMOVE THE BOLLARD BODY.
D- FIX THE BOLLARD BASE TO THE FLANGE USING THE (4) SCREWS (INCLUDED).
E- LOWER THE BOLLARD BODY ON IT'S BASE AND SCREW IT BACK WITH THE (4) SET SCREWS USING THE ALLEN KEY.
A
FLANGE
GRAVEL
B + C + D
BOLLARD BODY
C
ALLEN KEY
(INCLUDED)
BOLLARD BASE
INS-626
ELECTRICAL CONDUIT
SET SCREWS
SCREWS
(INCLUDED)
D
B
STICKER
INSTRUCTIONS SHEET
POWER
CABLE
CONCRETE
F
SET SCREWS
ALLEN KEY
OK
90°
Last update: December 10, 2020
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 of 4
NO!
NO!
DM - R9
