Marine
Elegance
Installation and Maintenance Instructions
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
WARNING:
Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this product.
Equipment damage, injury to personnel or death could result from improper installation. Raritan Engineering
Company, Inc. accepts no responsibility or liability for damage to equipment, injury or death to personnel that
may result from improper installation or operation of this product.
WARNING:
HAZARD OF SHOCK OR FIRE
Always use recommended fuse, circuit breaker and wire size.
Motors used with this product are "Ignition Protected". They are not however, explosion-proof as defined in 46CFR
110.15-65(e), Subchapter J-Electrical Engineering.
DO NOT run continuously for more than 30 seconds.
Pressurized
Freshwater Model
Sea Water Model
(Remote Pump)
1-800-352-5630
www.raritaneng. com
L490 0720jlc
Toilet
FOLLOWED DURING BOTH INSTALLATION AND OPERATION.
Manufactured after August 2016

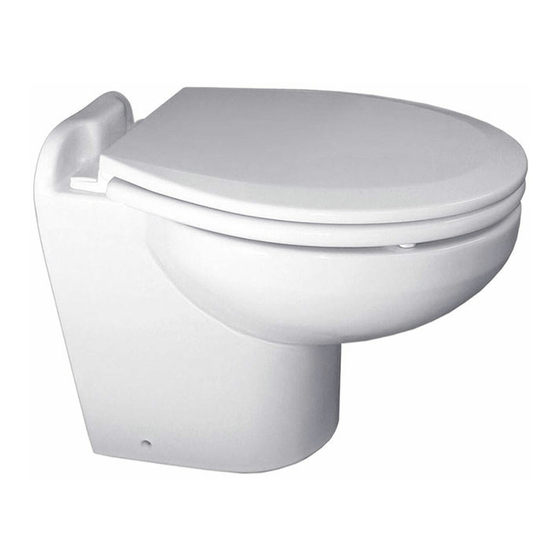

Description:
Our Marine Elegance toilet is available in 12V or 24V DC. Bowls
are available in four models: standard with angled back, standard
with straight back, tall with angled back and tall with straight
back. Fresh water model utilizes onboard freshwater, the Sea
water model utilizes a remote pump installed between raw water
source and bowl. Sea/Fresh model can switch between fresh and
raw water source.
Flush control options available:
1. Smart Toilet Control: provides timed operation and inde-
pendant control of water and discharge.
2. Multifunction Flush Panel: provides momentary operation
and independant momentary control of water and discharge.
3. Momentary Flush Switch: providing only the ability to
flush with no independant control of water or discharge.
4. Touchless Flush Sense Control:
cycle without touching the control. Simply wave your hand
within 2" of the sensor.
5. Wireless Remote Bluetooth Control: program your STC
wirelessly up to 50 ft away from the toilet. Eliminates the need
to route wires through bulkheads and cabinetry.
Model and Serial Number:
1
designed to activate a flush
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raritan Marine Elegance
Summary of Contents for Raritan Marine Elegance
- Page 1 FOLLOWED DURING BOTH INSTALLATION AND OPERATION. WARNING: Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this product. Equipment damage, injury to personnel or death could result from improper installation. Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment, injury or death to personnel that may result from improper installation or operation of this product.
-
Page 2: Important Safety Instructions
Seat and/or lid could close and strike Recommended Visual Inspection child. Always replace circuit breaker and fuses For leaks at toilet and hose connections with same rating . Use Raritan parts to maintain ignition protection requirements. Hose clamps Condition of hoses ... -
Page 3: System Start-Up
Integral and Remote Intake Pump Models Parts Required Operation: Please see instructions included 3/4” (19 mm.) I.D. intake hose approximately 3 feet with control to see how to operate your unit. (1 m.) long. 1” (25 mm.) or 1 1/2” (38 mm.) I.D. discharge hose Winterizing: approximately 3 feet (1 m.) long. - Page 4 Plumbing CONVERSIONS Maximum suction of Intake Pump 4 ft (1.2m) from Intake Pump Wire - AWG to mm (Maximum height above waterline) Maximum height of discharge vented 10 ft (3 m) from base of toilet loop 10.0 16.0 25.0 35.0 Pressurized water source minimum Minimum flow rate 3 gallons Feet to Meters...
-
Page 5: Additional Parts Required
Parts included with all models: Additional Parts Required: Toilet bowl assembly • 1” (25 mm.) or 1 1/2” (38 mm.) I.D. discharge hose Mounting bracket kit • 3/4” (19 mm.) I.D. reinforced intake hose Seat • 3/4” (19 mm.) and 1” (25 mm.) or 1 1/2” (38 mm.) hose Flush control - includes User and Installation clamps (two for each connection below waterline) guides. - Page 6 Seacock Residual Water in the Bowl FIG 4a FIG 4b The Marine Elegance is equipped with an Toilet installed below waterline integral vent to maintain water in the bowl when or below Treatment Device the plumbing lines are routed downward and or holding Tank = Upward (See FIG 4a and FIG 4b).
- Page 7 Discharge Lines Slide fitting clips back to closed position (FIG Raritan Sanitation Hose is recommended Part numbers: Connect hose from seacock to inlet port of intake 1 1/2 inch pump. If used, strainer is in-line. Use hose clamp SFH1 1 inch provided.
- Page 8 Mounting controls: Refer to instruction enclosed with control. Install the Warning Label (L322) where it can be easily seen. WIRING FIG 10 WARNING: Hazard of Shock and Fire • Always use proper wire, wire connectors and fuse/circuit breaker. See Specification Chart.
-
Page 9: Troubleshooting
The following information reflects the most probable causes and solutions to problems although not every possible cause and solution is provided. Any questions regarding servicing or operation of the Marine Elegance should be directed to our Technical Support Department in Millville, NJ. Please have model and serial number available before calling. - Page 10 Marine Elegance PARTS LIST PRESSURIZED FRESH WATER UNITS ItemNo. Part No. Description 221300 Vacuum Breaker Assembly 1245SC Seat & Cover (Slow Close) 221351 Solenoid Valve 12VDC 1245A Seat & Cover (Almond) 221352 Solenoid Valve 24VDC 221100W ME Bowl, Std Hgt, Angled Back, White 221335 Hose 1/2”...
- Page 11 L490 0720jlc...
-
Page 12: Limited Warranty
5. No other person or entity is authorized to make any express warranty, promise or affirmation of fact or to assume any other liability on behalf of Raritan in connection with its products except as specifically set forth in this warranty.
