Marine
Installation and Maintenance Instructions
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
FOLLOWED DURING BOTH INSTALLATION AND OPERATION.
WARNING: Raritan Engineering Company, Inc. recommends that a qualified person or electrician install
this product. Equipment damage, injury to personnel or death could result from improper
installation. Raritan Engineering Company, Inc. accepts no responsibility or liability for
damage to equipment, injury or death to personnel that may result from improper installation
or operation of this product.
WARNING: HAZARD OF SHOCK OR FIRE
Always use recommended fuse, circuit breaker and wire size.
Motors used with this product are "Ignition Protected". They are not however, explosion-
proof as defined in 46CFR 110.15-65(e), Subchapter J-Electrical Engineering.
DO NOT run continuously for more than 30 seconds.
Pressurized
Freshwater Model
Sea Water Model
(Remote Pump)
1-800-352-5630
www.raritaneng. com

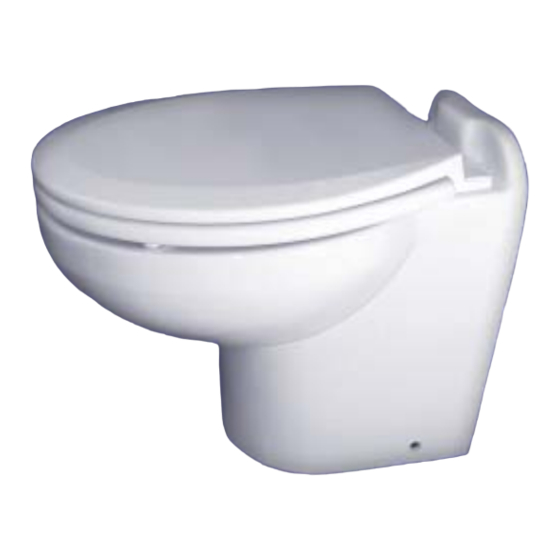

Toilet
Desription:
Marine elegance toilet is available in 12V or 24V
DC. Bowls are available in four models: standard with
angled back, standard with straight back, tall with
angled back and tall with straight back.Fresh water
model utilizes onboard freshwater, the Sea water
model utilizes a remote pump installed between raw
water source and bowl. Sea/Fresh model can switch
between fresh and raw water source.
Three different control options are available:
1. Smart flush control: provides timed operation
and independant control of water and discharge
2. ME toilet control: provides momentary opera-
tion and independant momentary control of water
and discharge
3. Push button switch: providing only the ability to
flush with no independant control of water or
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raritan Elegance
Summary of Contents for Raritan Elegance
- Page 1 THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND FOLLOWED DURING BOTH INSTALLATION AND OPERATION. WARNING: Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this product. Equipment damage, injury to personnel or death could result from improper installation.
-
Page 2: Important Safety Instructions
Children can drown in water retained in the bowl. Seat and/or lid could close and strike child. Always replace circuit breaker and fuses with same rating . Use Raritan parts to maintain ignition protection requirements. Recommended Visual Inspection •... - Page 3 A. Push Button Switch: Press push-button switch and hold until all waste is cleared from the toilet bowl. B. ME Toilet Control: 1. Press and hold “Water Only” to add water to the bowl 2. Press and hold “Empty” to evacuate the bowl 3.
- Page 4 Programming of Toilet Flush Control NOTE: Flush control is set at factory to work in most key push. Note: If the button is pushed 9 times it will installations and no additional programming is needed. start back at zero. Use following instructions to re-program if adjustment Once this is done push the “NORMAL”...
-
Page 5: System Start-Up
Integral and Remote Intake Pump Models Parts Required 3/4" (19 mm.) I.D. intake hose approximately 3 feet (1 m.) long. 1" (25 mm.) or 1 1/2" (38 mm.) I.D. discharge hose approximately 3 feet (1 m.) long. Two buckets Nontoxic antifreeze approximately 1 quart (1 liter) Steps 1. - Page 6 Plumbing CONVERSIONS Wire - AWG to mm i o t t i l Feet to Meters NOTES: for Wiring Hose Sizes INLET i n i 1/2”(12.7 mm.) for freshwater model 3/4” (19 mm.) for sea water model Discharge s t i c i f .
-
Page 7: Additional Parts Required
1. Remote pump assy. 2. Relay for remote pump Marine Elegance discharge Maximum recommended 1” PVC hose length NOTE: 1. Each 90 degree Elbow is equal to 4 feet of hose 2. Each insert coupling is equal to 2 feet of hose 3. -
Page 8: Discharge Hose
To install the toilet: A. Prepare mounting location Fig. 1 B. Install plumbing C. Install controls and complete wiring D. Connect hoses and wiring to toilet E. Mount toilet A. Preparation for Mounting Toilet Mounting surface must be flat and solid. 3/8”... - Page 9 Thru-hull fittings and seacocks must be installed where they are easily accessible. Waterline Waterline • Use only quality reinforced hoses such as Electroscan Raritan SH. Discharge Seacock • Secure all hoses properly. Remote Intake Pump Model Discharge Mounted below Waterline...
- Page 10 Intake Lines Pressurized Freshwater Models Discharge Install a shut off valve in intake line before water solenoid Inlet port valve. port 1. Connect hose from shut off valve to inlet port of water solenoid valve at the toilet. NOTE: To avoid malfunction of water solenoid due to debris in water, installation of Freshwater Strainer (190601) is recommended.
- Page 11 Mounting Remote Pump: 1. Locate remote pump between thru hull fitting and toilet bowl. 2. Locate in an area away from berth to keep noise level down. 3. Use Inline Strainer (optional) to avoid clogs. 4. Secure remote pump to the floor using four bolts through the pump base.
- Page 12 To start Electroscan from toilet control, run a wire from “to EST “ to terminal marked “EXT TRIG” inside Electroscan control module (black box). To start Elegance equipped with Smart Switch from Electroscan, connect “Head1” to “FROM EST “. For Lectra/San MC, call Raritan Customer Service...
- Page 13 Solenoid valve Push Button To EST Fuse Black Black Discharge pump BATTERY Fig. 14 Wiring for Push Button Switch Fresh water model Push Button To EST Pump Blue Relay Fuse Black Discharge pump BATTERY Fig. 14A Wiring for Push Button Switch Remote pump model...
- Page 14 Fig. 15 WIRING FOR SMART SWITCH FRESHWATER MODEL FLUSH CONTROL PANEL Solenoid Valve orange FUSE/BREAKER black black black to EST EXT TRIG Discharge Pump from EST holding tank full panel BATT Fig. 16 WIRING FOR SMART SWITCH REMOTE PUMP MODEL orange PUMP remote...
- Page 15 Fig. 17 WIRING FOR ME TOILET CONTROL FRESHWATER MODEL FLUSH CONTROL PANEL Solenoid Valve orange black fuse/Breaker black black To EST Discharge Pump Panel BATT Control Box Fig. 18 WIRING FOR ME TOILET CONTROL WITH REMOTE PUMP pump orange Relay black FLUSH CONTROL...
- Page 16 D. Connect Hoses and wiring to toilet Fig. 19 5. Route wire from control per wiring diagrams. 6. Install seat. I nstall discharge support strap between seat nut and the bowl per Fig. 19A. 7. Install toilet in place, connect hoses and wireplugs. (see Fig.
-
Page 17: Troubleshooting
Any questions regarding servicing or operation of the Marine Elegance should be directed to our Technical Support Department in Millville, NJ or Ft. Lauderdale, FL. Please have model and serial number available before calling. -
Page 18: Repair Kits
Marine Elegance PARTS LIST 162135 Cone Seal 221100 Toilet Bowl,standard, angled, White(1) 162225 O-Ring 221100A Toilet bowl Bone(1) 162305 Lower Housing includes #162315 2210012 Discharge Pump Assembly (1) 162310 Diaphragm includes #162315 221012 MOTOR: 12 VDC (1) 162315 Piston (4) - Page 19 Recommended F005 1660* Seawater strainer 162325A 163000 F172 162305 162320 162310 162410 162300W 162315 162420 162425 162225 162135 162415 162200W 162425 162420 190601 - Recommended F144 162425 freshwater strainer M23A F162VT 162405 162100W FIG 21 Marine Elegance Exploded Parts View...
- Page 20 1. TO OBTAIN WARRANTY SERVICE, Consumer must deliver the product prepaid, together with a detailed description of the problem, to Raritan at 530 Orange St., Millville, N.J. 08332, or 3101 SW 2nd Ave. Ft. Lauderdale, FL 33315. When requesting warranty service, purchaser must present a sales slip or other document which establishes proof of purchase.
