Converting PHII, PH, PHC, CPII and CP model toilets to
Read through the entire
instruction sheet before
beginning.
If you do not
fully understand the repair
procedure, or doubt your
ability to complete it, call a
qualified service technician.
•
Flush toilet until clean, Shut off seacok and flush to remove any remaining water.
•
Disconnect inlet hose and discharge hoses from pump.
Note:
1. Seawater inlet line will not be used. Close and secure intake seacock.
2. If discharge hose goes downward through deck, the hole in the decking may need to be modified.
(see fig 1). Fitting can be rotated to allow sideways discharge.
FRESH HEAD
FRESH HEAD model toilet (2500RFK)
Flush 4 to 5 clean flushes
through toilet before
beginning to work on unit.
PREPARATION
4 1 2 [114]
WARNING:
Shut-off:
• Thru-hull fittings
• Line valves
Before beginning.
6 1
[156]
8
PH series Toilet
Tools you will need:
• 3/8" nut driver
• Channel lock pliers
FIG 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raritan 2500RFK
Summary of Contents for Raritan 2500RFK

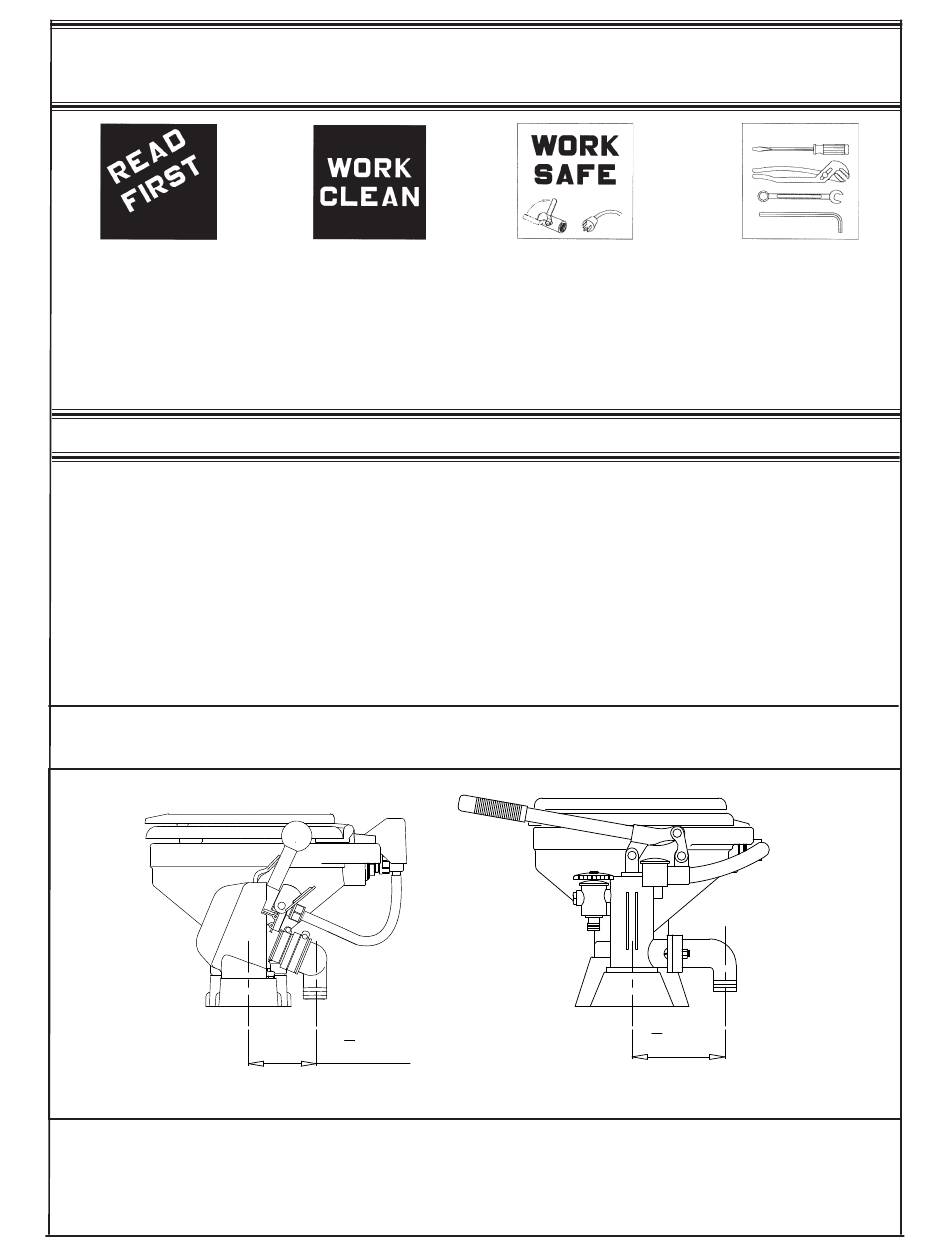

- Page 1 Converting PHII, PH, PHC, CPII and CP model toilets to FRESH HEAD model toilet (2500RFK) Flush 4 to 5 clean flushes WARNING: Tools you will need: Read through the entire through toilet before Shut-off: • 3/8" nut driver instruction sheet before beginning to work on unit.
- Page 2 Parts included in 2500RFK: Part# Description Part# Description 25200 Pump Assy 25221 Handle assy. 1228CW Flapper Valve Assy. FT001 Handle screw key 1236W Spud Assy. PLH-50P Hose inlet 1/2" 168006 Atmospheric breaker cover F099 1/4" x20 x1" screw 221300 Atmospheric Breaker...
- Page 3 Step 1 • Remove pump (PHII or others) from the base. Step 2: • Remove the spud from the bowl • Install new spud on the bowl • Install vacuum breaker Step 3: • Install pump and the flapper valve to the base •...
- Page 4 Step 5: • Install pump handle using hex wrench provided Step 6: • Connect intake water supply line and discharge hose (Refer to Fresh Head Manual) Step 7: • Turn on water supply, operate toilet (Refer to Fresh Head Manual) and check for leaks. Step 8: •...
