THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
WARNING:
Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this product.
Equipment damage, injury or death could result from improper installation. Raritan Engineering Company,
Inc. accepts no responsibility or liability for damage to equipment, injury or death that may result from improper
installation or operation of this product.
WARNING:
HAZARD OF SHOCK OR FIRE
Always use recommended fuse, circuit breaker and wire size.
Motors used with this product are "Ignition Protected". They are not however, explosion-proof as defined in 46CFR
110.15-65(e), Subchapter J-Electrical Engineering.
DO NOT Install in the area requiring ignition protected devices.
DO NOT run continuously for more than 30 seconds.

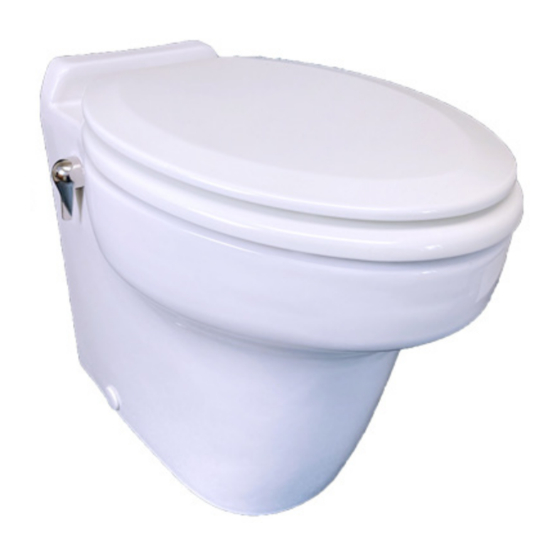

Description:
Our Marine Elegance Comfort Height Elongated Bowl is
available in 12V or 24V DC. Fresh water model utilizes
onboard freshwater, the Sea water model utilizes a remote
pump installed between raw water source and bowl.
Sea/Fresh model can switch between fresh and raw water
source.
1-800-352-5630
www.raritaneng. com
Marine
Comfort Height
Model 241E with Smart Handle
Installation and Maintenance Instructions
FOLLOWED DURING BOTH INSTALLATION AND OPERATION.
Link to online
Warranty
Registration
Elegance
Smart Toilet Control: provides timed operation and
independant control of water and discharge.
IMPORTANT: Discharge and Inlet Pump / Valve MUST
BE wired for proper operation and programming.
Operation of handle:
Pull Handle Forward:
Pull handle forward and release: starts a timed flush,
intake pump starts followed by discharge pump.
Push Handle Backward:
Push and hold: runs just the discharge pump for a "dry
.
bowl" flush
Model and Serial Number:
1
L442 1221jlc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Marine Elegance 241E and is the answer not in the manual?

Questions and answers

Summary of Contents for Raritan Marine Elegance 241E

  • Page 1 FOLLOWED DURING BOTH INSTALLATION AND OPERATION. WARNING: Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this product. Equipment damage, injury or death could result from improper installation. Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment, injury or death that may result from improper installation or operation of this product.
  • Page 2: Important Safety Instructions

    Do not use abrasive cleaners or cleaning pads. Flushing fresh water through toilet when leaving for extended periods is recommended. Using C.P. a bio-enzymatic toilet bowl cleaner (available from Raritan Engineering Part# 1PCP32) will keep the bowl clean and fresh smelling. L442 1221jlc...
  • Page 3: System Start-Up

    Remote Intake Pump Models Parts Required Operation: Please see instructions included 3/4” (19 mm.) I.D. intake hose approximately 3 feet with control to see how to operate your unit. (1 m.) long. 1” (25 mm.) or 1 1/2” (38 mm.) I.D. discharge hose Winterizing: approximately 3 feet (1 m.) long. • Improper winter lay up is a major cause of marine Two buckets toilet failure. Nontoxic antifreeze approximately 1 quart (1 liter) • Use only nontoxic antifreeze. Steps • Flush toilet several times to clear waste from Close the intake and discharge seacocks.
  • Page 4: Specifications

    SPECIFICATIONS Plumbing CONVERSIONS Maximum suction of Intake Pump 4 ft (1.2m) from Intake Pump Wire - AWG to mm (Maximum height above waterline) Maximum height of discharge vented 10 ft (3 m) from base of toilet loop 10.0 16.0 25.0 35.0 Pressurized water source minimum Minimum flow rate 5 gallons...
  • Page 5: Additional Parts Required

    Parts included with all models: Mounting Toilet Toilet bowl assembly Mounting surface must be flat and solid. Mounting bracket kit Seat must open more than 90 degrees. Seat Flush control - includes User and Installation guides. (In some cases distribution points may package and sell controls separately.) User guide and Installation guide with labels Additional Parts included with sea water model: 1.
  • Page 6 FIG 3 MARK HERE Place Mounting Template on deck, against the WALL wall with arrow located on center mark and secure with tape (FIG 3) BOWL CENTER LINE. ALIGN AT WALL. INLET HOSE See #5 under WIRES Mounting See #5 under Mounting IMPORTANT: Holes for Wires and DISCHARGE HOSE Hoses are for F and R See #5 under Mounting...
  • Page 7 Remote Intake Pump Model Mounted below Waterline where they are easily accessible. Discharge Vented Intake Vented Loop Loop • Use only quality reinforced hoses such as Raritan Saniflex (SFH) • Secure all hoses properly. Electroscan remote pump Residual Water in the Bowl...
  • Page 8 IMPORTANT: Be sure not to install plug fitting into Discharge Lines outlet port! Damage to pump will occur! Raritan Sanitation Hose is recommended. Use part number SFH for 1 ½” hose or SFH1 for 1” hose Slide fitting clips back to closed position (FIG 11) 1. Connect sanitation hose to discharge fitting on toilet. 6. Connect hose from seacock to inlet port of intake NOTE: Discharge fitting is designed for 1” or 1½”...
  • Page 9 Mounting controls: Select proper wire and fuse/circuit breaker size Refer to instruction enclosed with control. from Specifications on Installation page. Install the Warning Label (L322) where it can be easily Install fuse/circuit breaker in positive line at seen. source. WIRING Wire control to the toilet and battery using one of the wiring diagram supplied with the Smart WARNING: Hazard of Shock and Fire Toilet Control.
  • Page 10 ME Screw: Bowl Mounting (2) 22100** Discharge Pump Assembly (includes #3 thru 12 and 21 F321 ME Washer Fender Style (2) thru 28) REMOTE INTAKE PUMP UNITS ADDITIONAL ACCESSORIES AVAILABLE FROM RARITAN 166012A Pump Motor 12VDC NOT INCLUDED 166024A Pump Motor 24VDC 221147...
  • Page 11 L442 1221jlc...
  • Page 12: Troubleshooting

    3A. “Marine life” lodged in rim of bowl. 3. Foul odors from toilet area. all material. Install strainer in intake line to avoid recurrence. 3B. Replace hose with Raritan Saniflex Hose (#SFH). 3B. Permeated discharge hose. 3C. Flush toilet longer; replace hose if permeated; reroute 3C. Sewage remaining in discharge line.
