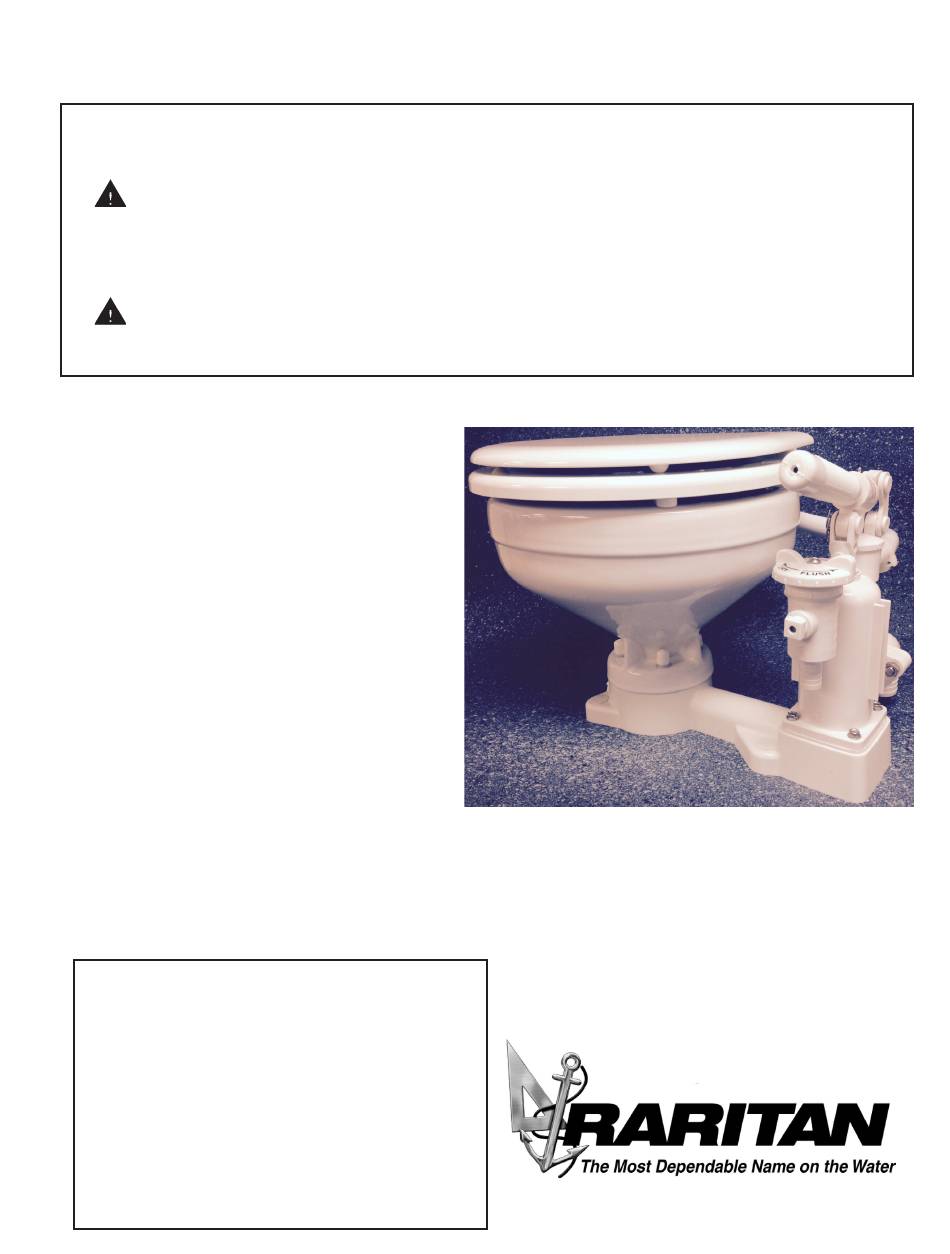

INSTALLATION AND MAINTENANCE INSTRUCTIONS
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
FOLLOWED DURING BOTH INSTALLATION AND OPERATION
WARNING: Raritan Engineering Company, Inc. recommends that a qualified person install this product.
Equipment damage, injury to personnel or death could result from improper installation. Rari-
tan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment,
or injury or death to personnel, that may result from improper installation or operation of this
product.
WARNING: Hazard of Flooding
tioned properly and all hose connections should be double-clamped. Both intake and discharge
seacocks should always be in the closed position when the toilet is not in use. Failure to do so
may result in flooding, property damage and loss of life.

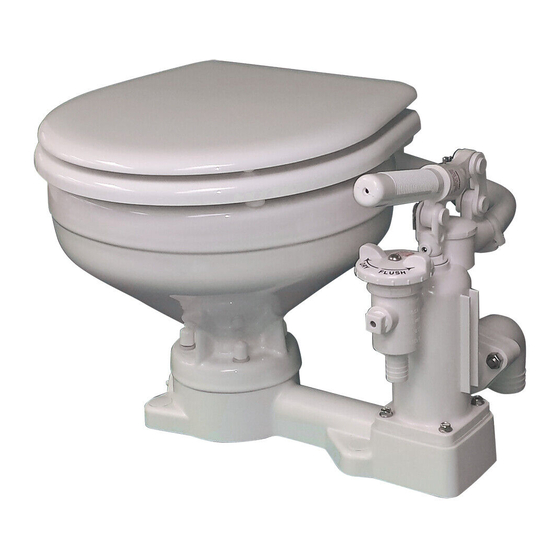

The power of the legendary PHIIPUMP on a
more universal and sleek base.
The PH Superflush combines the efficient
flushing action of the PHII with a more
"universal base" for easier upgrades from
competitive models. The PH Superflush also
includes a slow close seat.
Model and Serial #:
L563 0316kgs
PH SUPERFLUSH
Any installation made below the waterline must have vented loops posi-
-
1
All models are suitable for use in conjunction
with Raritan's Electroscan
Treatment Systems. Both are U.S. Coast Guard
Certified Type I flow-thru Marine Sanitation
Device (MSD) and/or holding tanks.
1-856-825-4900
www.raritaneng.com
and Purasan
Waste
®
®
Advertisement
Table of Contents
Related Manuals for Raritan PH Superflush
Summary of Contents for Raritan PH Superflush
- Page 1 THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND FOLLOWED DURING BOTH INSTALLATION AND OPERATION WARNING: Raritan Engineering Company, Inc. recommends that a qualified person install this product. Equipment damage, injury to personnel or death could result from improper installation. Rari- tan Engineering Company, Inc.
- Page 2 OPERATION Valve handle must be fully in the WARNING: DO NOT adjust valve handle (1209BW) "FLUSH" or "DRY" position only. while toilet is operating. 1. With valve handle in the "FLUSH" position pumping the handle will draw water in and discharge the bowl contents.
- Page 3 Before attempting repairs, refer to the Troubleshooting section of this manual. WINTERIZING recommissioning. This will protect both Improper winter lay up is a major cause of marine intake and discharge sides of the pump. toilet failures. Pouring antifreeze into the bowl will only Parts Required protect the discharge.
- Page 4 1 1/2" I.D. discharge hose 5. Secure toilet to surface. • 3/4" I.D. reinforced intake hose • Hose clamps (two for each connection below waterline) Raritan PH SuperFlush Marine Toilet Front View, Side View and Footprint SEE NOTE 1 2.16 [55] 4.33 2.76 [110]...
- Page 5 Discharging untreated sewage is forbidden in all U. S. waters within the three-mile limit. • Thru-hull fittings and seacocks must be installed where they are easily accessible. • Use only quality reinforced hoses such as Raritan Saniflex (SFH) • Secure all hoses properly. 1. Route discharge hose above discharge outlet with a vented loop.
- Page 6 • Intake line or strainer clogged rub with warm damp rag if smell transfers to rag Clean line and strainer replace hose (Saniflex (SFH) recommended). ADDITIONAL PARTS FOR RARITAN PH SUPERFLUSH RARITAN INSTALLATION ACCESSORIES BOWL & SEAT Part No. Description Part No.
- Page 7 WRONG! Correct Orientation of Flapper Valves PARTS FOR RARITAN PH SUPERFLUSH Part No. Description 25101 Base 25102 Base Plug 25103 Base O-Ring 33 1217 Discharge Valve Cap 25104 Base mounting plug 34 LWS Intake and Discharge Valve Spring (2) F081 Bowl Bolt 1/4"-20 x 2 S/S Hex head...
- Page 8 1. TO OBTAIN WARRANTY SERVICE, Consumer must deliver the product prepaid, together with a de- tailed description of the problem, to Raritan at 530 Orange St., Millville, N.J. 08332, or 3101 SW 2nd Ave. Ft. Lauderdale, FL 33315. When requesting warranty service, purchaser must present a sales slip or other document which establishes proof of purchase.
