ATLANTES FREEDOM
Installation and Maintenance Instructions
THE FOLLOWING ARE CAUTIONARY STATEMENTS THAT MUST BE READ AND
WARNING:
Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this
product. Equipment damage, injury to personnel or death could result from improper installation.
Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment,
injury or death to personnel that may result from improper installation or operation of this product.
WARNING:
HAZARD OF SHOCK OR FIRE
Always use recommended fuse, circuit breaker and wire size.
Motors used with this product are "Ignition Protected". They are not however, explosion-proof as
defined in 46CFR 110.15-65(e), Subchapter J-Electrical Engineering.
DO NOT run continuously for more than 30 seconds.
Description:

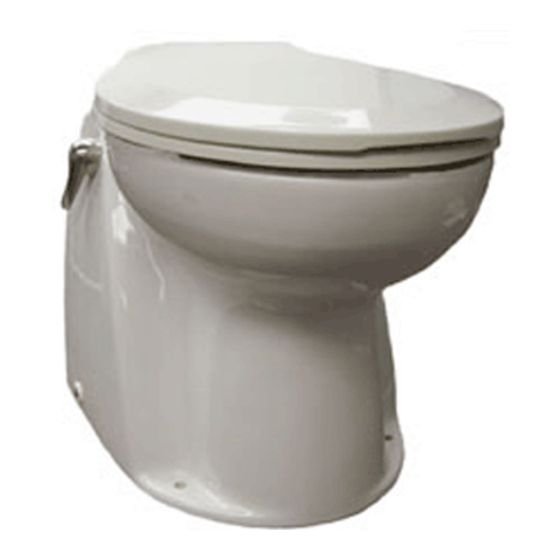

Atlantes Freedom Vortex-Vac toilet: available in 12V or
24V DC, household and elongated size bowl in White
and Almond (bone). Fresh water models utilize onboard
pressurized freshwater and sea water models utilize a
remote pump installed between raw water source and
bowl. SeaFresh model allows switching between fresh
and raw water source.
Three different control options are available:
1. Flush Handle Control: provides
momentary operation of flush water and
discharge.
2. Smart Toilet Control: provides timed operation and
independent control of flush water and discharge with
handle or wall switch.
3. Multifunction Momentary Control: provides
momentary operation and independent momentary
control of flush water and discharge.
Model and Serial#:
L476 0719jlc
FOLLOWED DURING BOTH INSTALLATION AND OPERATION.
TM
VORTEX-VAC
MODEL AV
1
TOILET
TM
Pressurized
Freshwater Model
Sea Water Model
(Remote Pump)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raritan ATLANTES FREEDOM VORTEX-VAC AV
Summary of Contents for Raritan ATLANTES FREEDOM VORTEX-VAC AV
- Page 1 FOLLOWED DURING BOTH INSTALLATION AND OPERATION. WARNING: Raritan Engineering Company, Inc. recommends that a qualified person or electrician install this product. Equipment damage, injury to personnel or death could result from improper installation. Raritan Engineering Company, Inc. accepts no responsibility or liability for damage to equipment, injury or death to personnel that may result from improper installation or operation of this product.
-
Page 2: Important Safety Instructions
Seat and/or lid could close and strike child. Recommended Visual Inspection Always replace circuit breaker and fuses with For leaks at toilet and hose connections same rating . Use Raritan parts to maintain Hose clamps ignition protection requirements. Condition of hoses ... -
Page 3: System Start-Up
SYSTEM START-UP Open seacock(s). NOTE: Pressurized freshwater models; open water IMPORTANT: If toilet does not flush properly source valve. or if water does not enter the bowl within 10 seconds, refer to Troubleshooting. Turn on power to toilet. Flush toilet per Operation Instructions. Check for leaks. - Page 4 Plumbing Maximum suction of Intake pump 4 Ft. (1.2m) from Intake Pump. (Maximum height above waterline) CONVERSIONS Wire - AWG to mm Maximum height of discharge vented loop 10 Ft. (3 m) from base of toilet. Minimum fLow rate 3 gallons Pressurized water source minimum (11.3 liters )per minutes, Minimum requirements...
- Page 5 Parts included with all models Additional Parts Required Toilet bowl assembly • Two stainless steel mounting bolts or lag screws Mounting hardware (minimum 1/4” [6mm]) and washers) Seat • 1” (25 mm.) or 1 1/2” (38 mm.) I.D. discharge hose One of the following flush controls: •...
- Page 6 MOUNTING FIG 1 Mounting surface must be flat and solid. Place toilet where it will be located. Make sure there is room to route hoses. Make sure seat will open properly. Using a pencil, mark location of bowl mounting holes (FIG 2). A.
- Page 7 Seacock • Thru-hull fittings and seacocks must be installed Remote Pump where they are easily accessible. • Use only quality reinforced hoses such as Raritan SANIFLEX (part# SFH). FIG 7a FIG 7b • Secure all hoses properly. Toilet installed below waterline...
- Page 8 Intake Lines FIG 9 Pressurized Freshwater Models Install a shut off valve in intake line before water solenoid valve. Connect hose from shut off valve to inlet port of water solenoid valve at the toilet (FIG 9). INLET NOTE: To avoid malfunction of water solenoid DISCHARGE PORT PORT...
-
Page 9: Troubleshooting
3A. Remove and flush bowl with pressure hose to remove all material. Install strainer in intake line to avoid recurrence. 3B. Replace hose with Raritan sanitation hose (#SFH). 3B. Permeated discharge hose. 3C. Sewage remaining in discharge line 3C. Flush toilet longer; replace hose if permeated; reroute hose making a shorter run if possible. - Page 10 VCAP+ Vinyl Cap (2) 162420 Fitting Clip (3) 162000W Remote Intake Pump w/o Motor 162410 3/4” Hose Barb Straight ADDITIONAL ACCESSORIES AVAILABLE FROM RARITAN 162425 O-Ring (3) 221147 1 1/2” Thru Wall Discharge Kit 162415 Plug Fittting 221148 1” Thru Wall Discharge Kit 162405 3/4”...
- Page 11 Atlantes Freedom Vortex Vac Exploded Parts View L476 0719jlc...
- Page 12 No other person or entity is authorized to make any express warranty, promise or affirmation of fact or to assume any other liability on behalf of Raritan in connection with its products except as specifically set forth in this warranty.
