Conventional Fire System

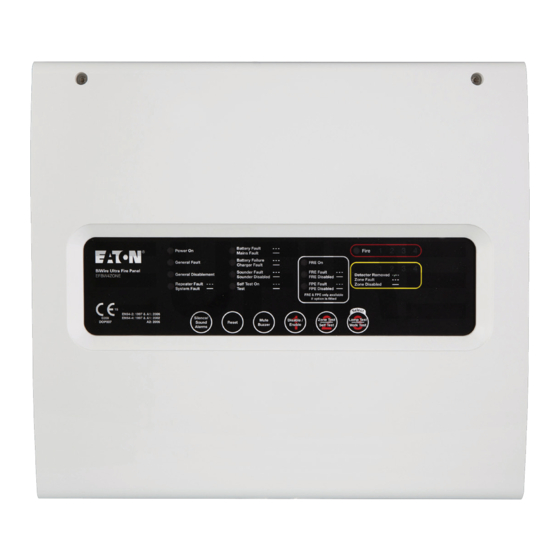

BiWire Flexi Fire Panel
EFBW8ZONE-FLEXI / EFBW4ZONE-FLEXI / EFBW2ZONEFLEXI
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiWire Flexi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton BiWire Flexi

Summary of Contents for Eaton BiWire Flexi

  • Page 1 Conventional Fire System BiWire Flexi Fire Panel EFBW8ZONE-FLEXI / EFBW4ZONE-FLEXI / EFBW2ZONEFLEXI User Manual...

  • Page 2: Table Of Contents

    1.1 Purpose..................................3 1.2 Definitions ..................................3 Premises Management ..............................3 Competent Person ............................... 3 1.3 About The BiWire Flexi System ........................... 3 What is BiWire Flexi?..............................3 What are Zones? ................................3 What are Sounder Circuits?............................3 What is FRE? ................................3 What is FPE? ................................

  • Page 3: Introduction

    The number of zones required to provide coverage of the entire premises will govern the fi re panel model required, 2, 4 or 8 zones are available in the BiWire Flexi range. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER)

  • Page 4: General System Conditions

    ONLY REACT AS DEFINED IN THE TEST CONDITION (REFER TO 6.7 FOR MORE DETAILS). ALL OTHER ZONE NOT IN THE TEST CONDITION WILL REACT TO FIRES UNDER NORMAL FIRE CONDITIONS. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 5: Access Levels

    While the panel is at access level 2 the buzzer will give a fast pulsing tone. If no function is selected within 30 seconds the access level will time out and the panel will return to access level 1. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 6: What To Do Instructions

    8 for more details). • Note the time the fault was noticed and log the fault event in the log book. • Notify the service company of the fault condition. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 7: Routine Testing

    DURING A WEEKLY TEST. IF AN AUTO-DIALLER OR ALARM RECEIVING CENTRE (ARC) IS CONNECTED TO THE FIRE SYSTEM THEN THE WEEKLY TEST SCHEDULE MUST BE COMMUNICATED TO THEM AS WELL. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 8: Operating Instructions

    Note: When performing a reset, any test cases will be cleared EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 9: Mute Buzzer

    1 (4 times) + 3 1 (6 times) + 3 1 (10 times) + 3 • Pressing “Select” button (3) will accept the selected enablement/disablement and exit back to Access Level 1. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 10: Individual Zone Test

    • Each indicator on the front of the panel will turn on in turn and then turn off in turn (excluding the Power On indicator). • This function will immediately exit back to Access Level 1. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 11: About The Log Book

    Quantities of each conventional device where the sounder type will be entered here per circuit. Wall circuits cover on the and Base Sounders/VADs may be added site separated on the log book. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...
  • Page 12 ADDITIONAL INFORMATION / VARIATIONS This will list any other additional information such as the implementation of the class change input, repeaters, and any major variations from BS5839 part 1. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 13: Fire Alarm Log Book

    Contact Number (Working hours) 0123 4567890 Contact Number (Other Times) 0123 4567890 These sections should be fi lled in by the Premises Management and copied across to each new log book. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...
  • Page 14 This table should be fi lled in by the Premises Management when a fault occurs; there is a disablement, enablement, a genuine fi re condition, and weekly tests. EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...

  • Page 15: Status Indications

    FPE disabled Zone Disabled Zone is disabled from fi re detection Individual Zone Test Active ON SLOW An individual zone is in test mode and awaiting a fi re activation EATON BiWire Flexi User Manual (PR215-216-519-03 15-03-16, PINSTFLEXIUSER) March 2016 www.eaton.com...
