SQUASHNI MICRO & SQUASHNI MICRO/E
Technical Data
Wire Termination
Operating Voltage
Operating Current
Current Consumption Nom
Operating temperature (min/max)
Monitoring Mode
Second Tone
Internal Fuse
Case Material
Environment Category
Ingress Protection
www.acornfiresecurity.com
SQUASHNI MICRO & SQUASHNI MICRO/E
0.28mm
~ 2.5mm
2
2
24V Nom (18 ~ 28Vdc)
9-18Vdc non-EN54-3
3 ~ 15mA
See Tones Table
-10 °C ~ +55 °C
Polarizing Diode
Connect third wire to -ve
N/A
ABS
Type A
IPC21C (With Base Supplied)
www.acornfiresecurity.com
EN54-3 Fire Alarm Device - Sounder
Dispositif d'alarme incendie EN54-3 – Avertisseur d'incendie
EN54-3 Fire Alarm Device - Sounder
EN54-3 Feueralarmgerät – Töner
Dispositivo di allarme antincendio a norma EN54-3 - Sirena
EN54-3 Pożarowe urządzenia alarmowe - Sygnalizatory akustyczne
EN54-3 Brandalarm – sounder
Dispositivo de alarma de incendios EN54-3 – Timbre de alarma
EN54-3 Brandvarnare – Signalgivare
1
2
Effective October 2020
G 206024
2831
DoP0064
08
Advertisement
Related Manuals for Eaton SQUASHNI MICRO
Summary of Contents for Eaton SQUASHNI MICRO

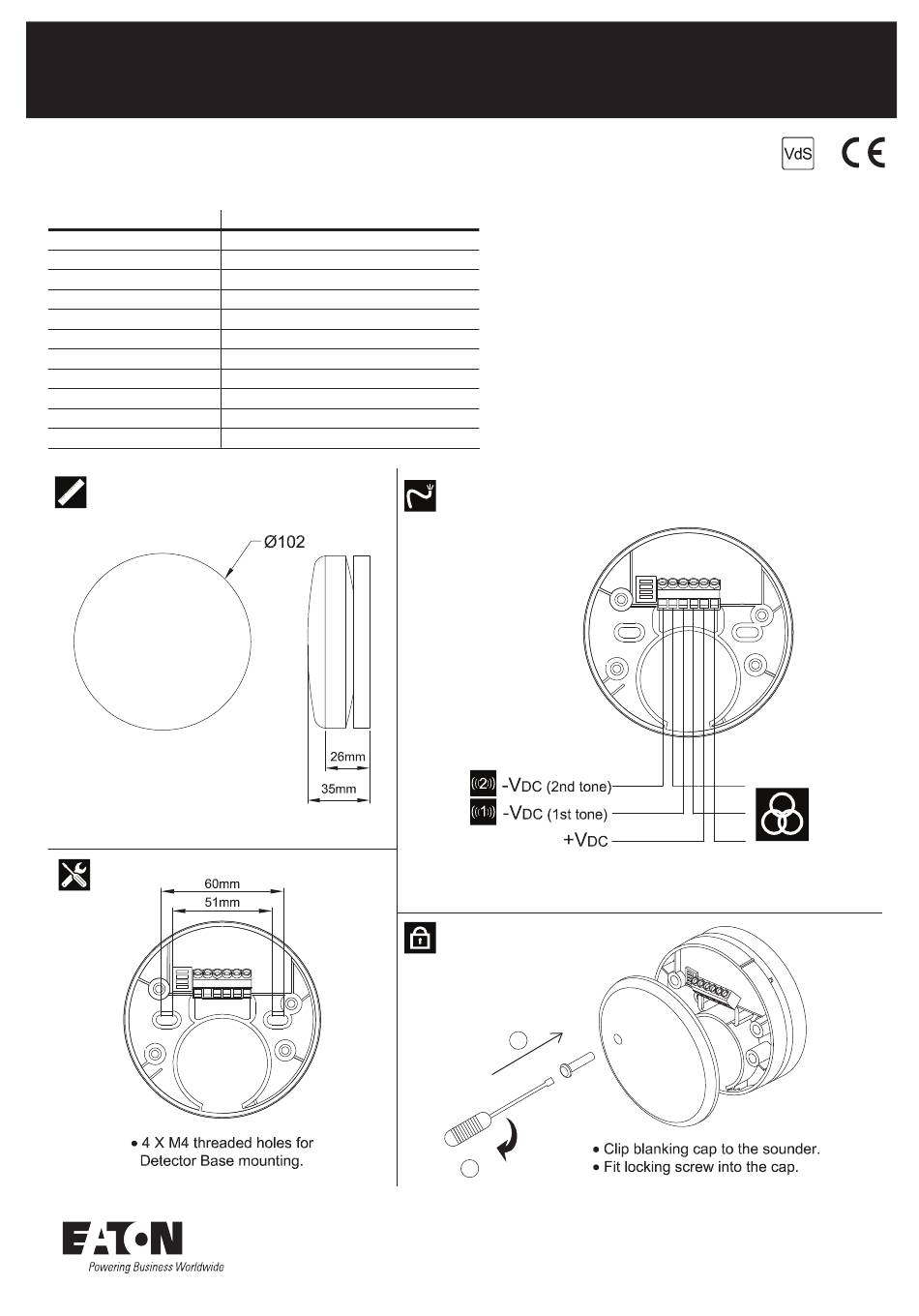

- Page 1 SQUASHNI MICRO & SQUASHNI MICRO/E Effective October 2020 Technical Data G 206024 2831 DoP0064 SQUASHNI MICRO & SQUASHNI MICRO/E EN54-3 Fire Alarm Device - Sounder Wire Termination 0.28mm ~ 2.5mm Dispositif d’alarme incendie EN54-3 – Avertisseur d’incendie EN54-3 Fire Alarm Device - Sounder...
