Bartec TC 75EX-NI Quick Start Manual

Touch computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
TC 75
ex
-NI / TC 75X
ex
-NI Touch Computer
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC 75EX-NI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartec TC 75EX-NI

Summary of Contents for Bartec TC 75EX-NI

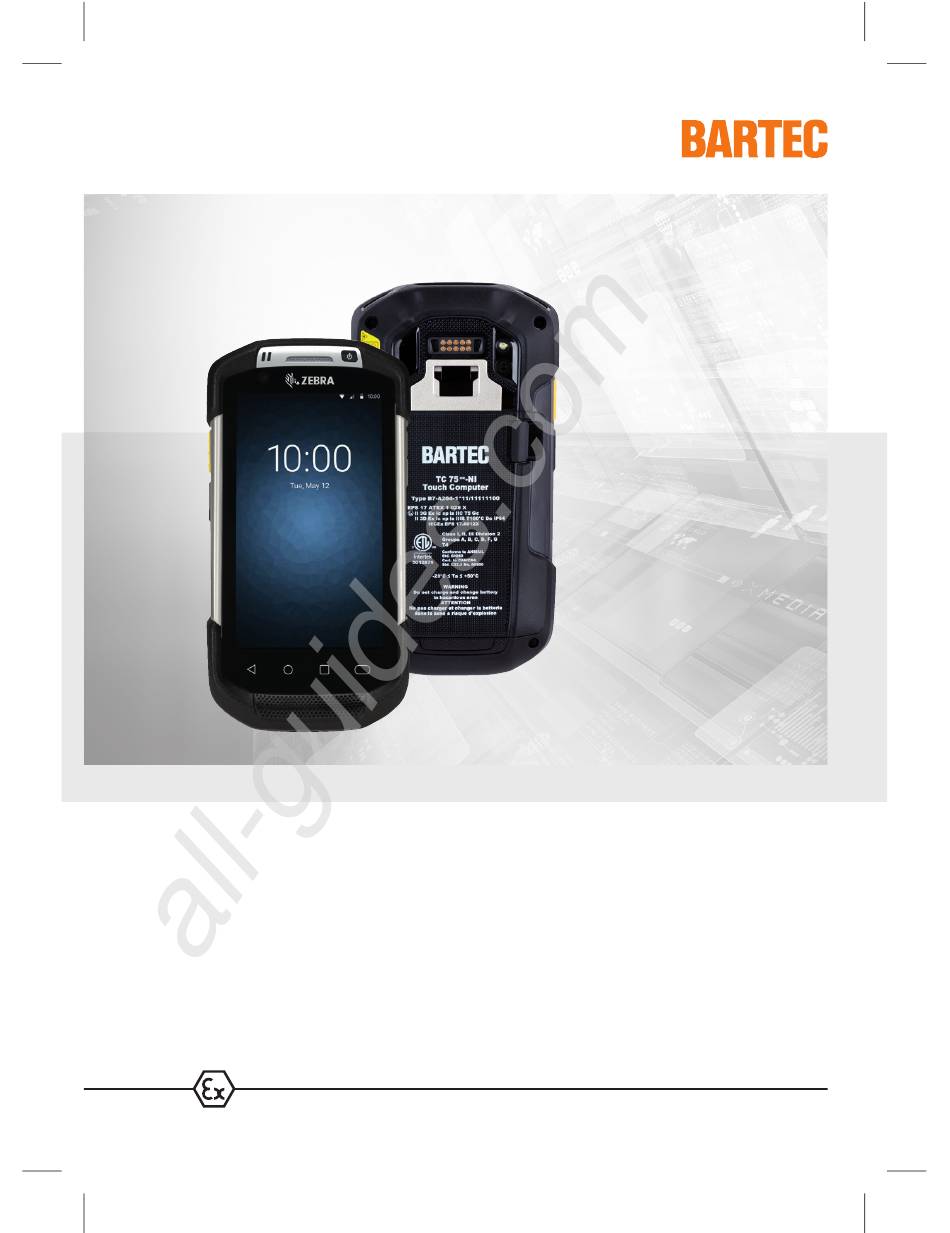

  • Page 1 All manuals and user guides at all-guides.com TC 75 -NI / TC 75X -NI Touch Computer Quick Start Guide...
  • Page 2 Touch Computers TC 75 -NI/TC 75X ATEX / IECEx Zone 2 and Zone 22 ETL Class I, II, III DIV 2 Document No.: B1-A264-7E0001 Status: 30/10/2018 BARTEC GmbH Support: Phone: +49 7931 597-0 Max-Eyth-Straße 16 service-mobilecomputing@bartec.de Fax: +49 7931 597-119...
  • Page 3 All manuals and user guides at all-guides.com...
  • Page 4 All manuals and user guides at all-guides.com Touch Computer 1 Information about this TC 75 -NI/TC 75X Quick Start Guide Information about this Quick Start Guide Read carefully before commissioning the device. The Quick Start Guide is an integral part of the device. The Quick Start Guide is directed at all persons who are entrusted with handling the device.
  • Page 5 All manuals and user guides at all-guides.com Touch Computer 1 Information about this TC 75 -NI/TC 75X Quick Start Guide 1.1.2 Symbols and means of presentation Symbol Explanation Important advice and information for the effective, efficient and environmentally sound use of the product.

  • Page 6: Reference Documents

    BARTEC (global): www.bartec.de ‒ BARTEC (ACS): http://automation.bartec.de ‒ ZEBRA (ZEB): www.zebra.com ‒ In the event of overlaps with Zebra user manuals, the instructions in the BARTEC Quick Start Guide apply. The BARTEC Quick Start Guide takes priority. Document Explanation Version BARTEC...

  • Page 7: Intended Use

    All manuals and user guides at all-guides.com Touch Computer 2 Safety TC 75 -NI/TC 75X Safety Intended use The Touch Computer TC 75 -NI, TC 75X -NI are used for the mobile capture, processing and transfer of data within potentially explosive atmospheres. The Touch Computer have been modified for use in the following potentially explosive atmospheres: Configuration Approved zone...

  • Page 8: Personnel Qualifications

    Read the instructions in this Quick Start Guide thoroughly and follow them when using the device.  In the event of overlaps with user manuals from Zebra, the instructions in the BARTEC Quick Start Guide apply. The BARTEC Quick Start Guide takes priority.

  • Page 9: Residual Risks

     Remove the Touch Computer from the potentially explosive atmosphere immediately. – Send the Touch Computer to BARTEC. – Corrosion: loss of explosion protection The enclosure of the Touch Computer has protection class IP64, however constant exposure to moisture can lead to corrosion.
  • Page 10 – Do not touch the broken area. Do not use the Touch Computer. – Send the faulty Touch Computer to BARTEC. – 2.4.4 Health hazard in the case of incorrect disposal Lithium ion batteries on the Touch Computer contain pollutants that can be harmful to health.
  • Page 11 All manuals and user guides at all-guides.com Touch Computer 2 Safety TC 75 -NI/TC 75X Preventing damage to property 2.5.1 Short circuit caused by incorrect connection Incorrect electrical connection can cause a short circuit, thereby damaging the Touch Computer. Always have the Touch Computer connected by a qualified electrician in accordance with the connection ...

  • Page 12: Approval, Standards

    Class I Div 2 Class I Div 2 Groups A,B,C and D T4 Conforms to ANSI/UL Std. 60950 Cert. to CAN/CSA Std. C22.2 No. 60950 Further approvals and certificates can be found at www.bartec.de TC 75X Standard Ex protection type...

  • Page 13: Product Description

    All manuals and user guides at all-guides.com Touch Computer 4 Product description TC 75 -NI/TC 75X Product description The TC 75 -NI and TC 75X -NI is a Touch Computer for capturing 1D/2D barcodes. The barcodes are captured by a 1D/2D scan engine. The ergonomic design permits 1-handed operation. Construction of the Touch Computer Description Pos.
  • Page 14 All manuals and user guides at all-guides.com Touch Computer 4 Product description TC 75 -NI/TC 75X Description Pos. Function Microphone Use for communications in Handset mode. Charging Contacts Provides power to the device from cables and cradles. Speaker Provides audio output for video and music playback.
  • Page 15 All manuals and user guides at all-guides.com Touch Computer 4 Product description TC 75 -NI/TC 75X Description Pos. Function Interface Connector Provides USB host and client communications, audio and device charging via cables and accessories. Provides data capture using the imager. Exit Window Microphone Use during video recording and for noise...
  • Page 16 All manuals and user guides at all-guides.com Touch Computer 4 Product description TC 75 -NI/TC 75X 4.1.1 Meaning of LED display LED display Colour Meaning Data Capture LED Green Good Decode Data capture in progress Blue Application notification Slow blinking amber Charging/Notification LED Battery charging Solid green...

  • Page 17: Operation

    All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X Operation Touch Computer TC 75 -NI/TC 75X 5.1.1 SIM/SAM/SD Card Installation DANGER Inserting or replace the SIM/Micro SD card! Only insert or replace the SIM7Micro SD card outside of the potentially explosive atmosphere ...
  • Page 18 5.1.3 Changing the battery DANGER Mixing up the batteries! Loss of function and risk of explosion. Only use batteries that have been certified by BARTEC.  Only the following batteries are approved: Zone / Div Battery type Zone 2 / Div 2...
  • Page 19 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X 5.1.4 Battery installation DANGER Spark formation when changing the battery! Explosion. Only insert or remove the battery outside the potentially explosive atmosphere.  Make sure that step 3 of the battery installation is completely done. ...
  • Page 20 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X 5.1.5 Battery replacement Remove any accessory attached to the device. Press the Power button until the menu appears. Touch Battery Swap. Follow the on-screen instructions. Wait for the LED to turn off.
  • Page 21 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X VORSICHT VORSICHT Replace the battery within two minutes. After two minutes the device reboots and data may be lost. 10. Insert the replacement battery, bottom first, into the battery compartment in the back of the TC 75. 11.
  • Page 22 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X 5.1.6 Hand strap installation Remove hand stap filter plate Insert the hand trap plate into the handstrap slot Insert the bottom of the battery into the battery compartment Rotate the battery down into the battery compartment and press the battery down until it snaps into position Place the hand strap into the hand strap attachment slot and pull down to lock into place Subject to technical modifications...
  • Page 23 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X Inspection to be conducted prior to use Check the following points before operating the device:  Final inspection of TC 75 -NI/TC 75X Check points Scan window free from damage, e.g.
  • Page 24 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X Avoid extreme wrist angles Subject to technical modifications 23 / 28 30/10/2018...
  • Page 25 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X Scanning During scanning, the scanners in the TC 75 –NI/TC 75X –NI emit a scanner beam. Ensure that an application is open and a text field is in focus (tect cursor in text field). Point the exit window at the bar code.
  • Page 26 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X Optimal scan position Right: The Touch Computer can also read barcodes when the scanner beam is not directly centred on the barcode. Wrong: The Touch Computer cannot decode/scan a barcode if the scanner beam does not capture the whole width of the barcode.
  • Page 27 All manuals and user guides at all-guides.com Touch Computer 5 Operation TC 75 -NI/TC 75X Camera Photo Open the camera application. Point the TC 75 camera at an object. Touch the on screen shutter button. Subject to technical modifications 26 / 28 30/10/2018...

  • Page 28: Approved Accessories

    All manuals and user guides at all-guides.com Touch Computer 6 Annex TC 75 -NI/TC 75X Annex Approved accessories 4-Slot Battery charging station G7-A0Z0-0020 Basestation G7-A0Z0-0022 Subject to technical modifications 27 / 28 30/10/2018...
  • Page 29 All manuals and user guides at all-guides.com Touch Computer 6 Annex TC 75 -NI/TC 75X Notice Subject to technical modifications 28 / 28 30/10/2018...
  • Page 30 All manuals and user guides at all-guides.com Your partner for safety technology. Challenge us! BARTEC GmbH Max-Eyth-Str. 16 Phone: +49 7931 597-0 97980 Bad Mergentheim info@bartec.de Germany www.bartec.de...
