- Page 1 Operating instructions for the SZ8085 control set...
- Page 2 Fax +49 7720 6928-970 info@steinel.com Copyright STEINEL Normalien AG All rights reserved. Operating instructions for the SZ8085 control set Edition 1.0 English Date of issue 02/2020 Changes to the design and product that serve to improve the product remain reserved.
-
Page 3: Table Of Contents
3.2.3 Charging adapter 3.2.4 Charging tubing 3.2.5 Pressure reducer 3.2.6 Valve key 3.2.7 Transition adapter 4 Filling of the nitrogen cylinder 4.1 Filling the nitrogen cylinder 4.2 Nitrogen filling pressure table Version 05.2020 Operating instructions for the SZ8085 control set... - Page 4 Table of contents 5 Filling of the manifold plate, compo site tube and composite plate system 5.1 Safety instructions 5.2 Filling of the manifold plate, tube composite and composite plate system Operating instructions for the SZ8085 control set Version 05.2020...
-
Page 5: Introduction
Dear technical supervisor, You are facing the task of filling the nitrogen systems using the STEINEL control set. The STEINEL control set is used for filling, the variable pressure setting of and for checking the gas pressure in various nitrogen systems. -
Page 6: Warranty And Liability
ƒ external elements or force majeure ƒ performance of maintenance work (repairs) In order to maintain functional reliability, only original spare parts, tools and appliances of the manufac- turer may be used. Operating instructions for the SZ8085 control set Version 05.2020... -
Page 7: Symbols In These Operating Instructions
This symbol points to texts that contain important instructions/comments and tips. 1.6.2 Danger symbols Warns of dangers leading to serious (irreversible) injuries and possibly death! Warning of hazardous or irritant substances Warning of explosive substances Warning of hand injuries Version 05.2020 Operating instructions for the SZ8085 control set... -
Page 8: Prohibiting Symbols
This means: Refer to (in chapter 4 of this manual) position number 1 of figure 4. Numbers in a square with a red frame refer to positions in the figures. Operating instructions for the SZ8085 control set Version 05.2020... -
Page 9: Safety
Other components of the control set must be checked regularly for wear or damage, and replaced if so required. Non-observance may void the guarantee or warranty. In addition, STEINEL Normalien AG is not liable for damage caused by improperly maintained/replaced materials! 2.3 Danger from hidden hazards/remaining risks... -
Page 10: Application
and appropriately trained personnel. 2.4 Application The STEINEL control set is used for filling, the variable pressure setting of and for checking the gas pres- sure in various nitrogen systems. ƒ Self-sufficient nitrogen cylinders ƒ Tube connected nitrogen cylinders* ƒ... -
Page 11: Personal Protective Equipment
A helmet must also be worn when putting the system into service, as well as during assembly and disassembly work. Observe all safety instructions found in the respective operating instructions for nitrogen systems. Version 05.2020 Operating instructions for the SZ8085 control set... -
Page 12: Control Set Components

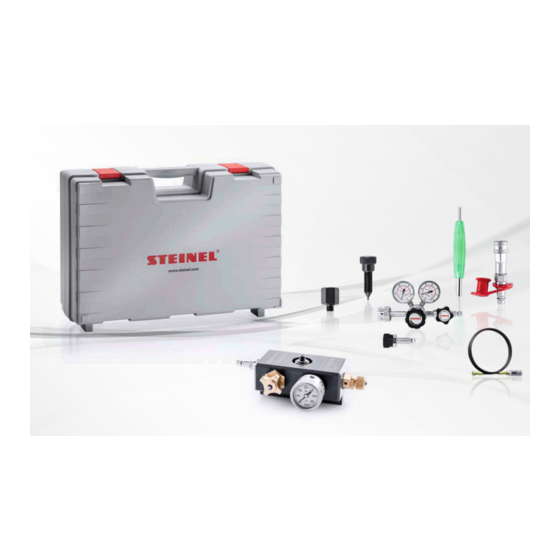

Control set components 3.1 Control set Please find information on the control set and individual components in our current product catalogue under: www.steinel.com » Downloads » Catalogue » Nitrogen systems Position Designation SZ8085.8 SZ8085.9 ü ü Base body ü ü Discharging screw ü... -
Page 13: Components
.2 nitrogen SZ7045 22 cylinder 019-038 SZ8063.1.050 SZ7045 23 all .2 nitrogen cylinder 050-063 SZ7045 24 SZ8063.1.063-095 all .2 nitrogen cylinder 075-120 G1/8 all .2 nitrogen SZ7045 25 cylinder V, VB Version 05.2020 Operating instructions for the SZ8085 control set... -
Page 14: Charging Tubing
Connection for charging tubing M12 x 1.5 Pressure adjustment valve for filling pressure Part number SZ8085.6 3.2.6 Valve key The valve key is used for the assembly/disas- sembly of the changeable valves. Part number K100-000-0300 Operating instructions for the SZ8085 control set Version 05.2020... -
Page 15: Transition Adapter
Control set components 3.2.7 Transition adapter The transition adapter is required for a prede- cessor system. The adapter is used for connect- ing the charging tubing to the filling system. Part number SZ7045.9 Version 05.2020 Operating instructions for the SZ8085 control set... -
Page 16: Filling Of The Nitrogen Cylinder
2. Connect the charging tubing to the nitrogen bottle pressure reducer. 3. Connect the charging tubing to the quick-fit connector on the base body. First close the control set regulating valve, and then the outlet valve. Operating instructions for the SZ8085 control set Version 05.2020... -
Page 17: Nitrogen Filling Pressure Table
6. For other nitrogen cylinders that have to be filled with the same pressure, repeat step 5. 7. Following a functionality and tightness test, the nitrogen cylinders can be used again. 8. For the tightness test, STEINEL Normalien AG provides a force measuring device. STEINEL Normalien AG Winkelstraße 7 78056 Villingen-Schwenningen ... - Page 18 1. Connect the charging tubing to the nitrogen bottle pressure reducer. 2. Shut the regulating valve at the control panel. 3. Connect the hose at the control panel. Operating instructions for the SZ8085 control set Version 05.2020...
- Page 19 6. When the desired filling pressure has been reached, close the regulating valve on the pressure reducer. The charging tubing can now be decoupled at the control panel. Version 05.2020 Operating instructions for the SZ8085 control set...
- Page 20 We do not accept liability for printing errors and mistakes. Progress results in improvements as well as changes to design, dimensions and materials. We therefore reserve the right to make technical changes. Copyright STEINEL Normalien AG. design by com-a-tec.de...
