Summary of Contents for Heatmiser SP OpenTherm neoHub Mini OT

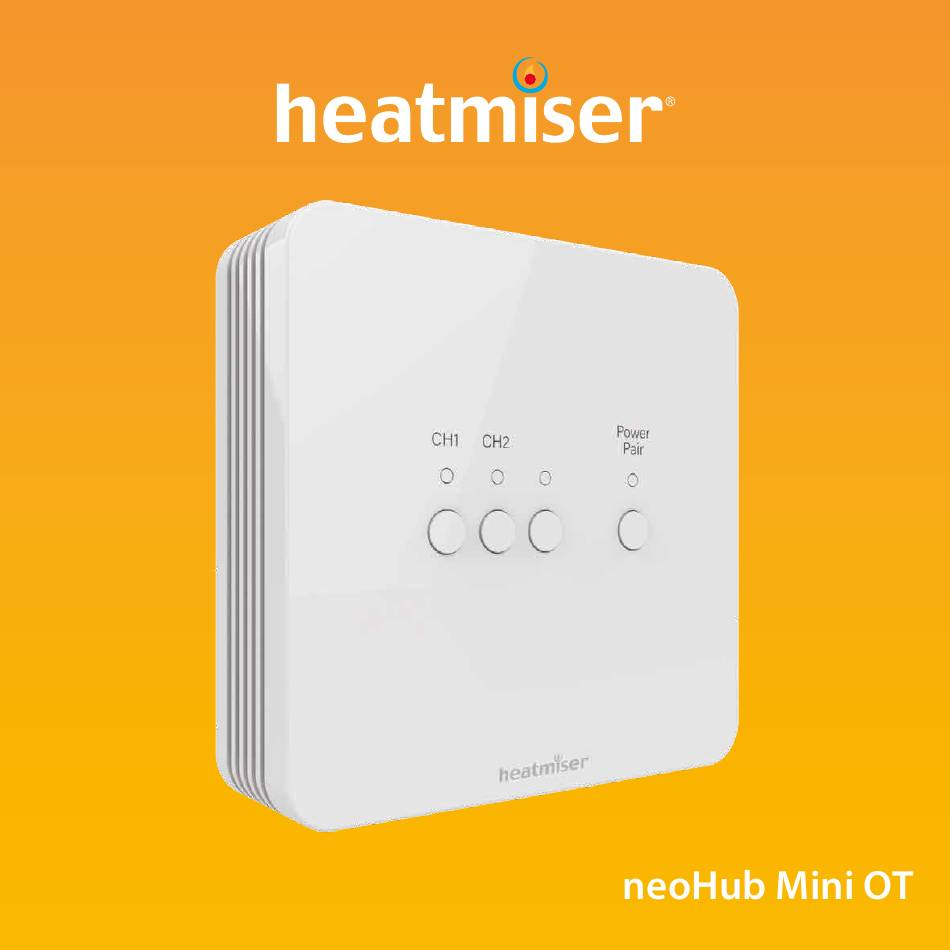

- Page 1 Model:...
- Page 2 mini...
- Page 3 Product Image Table of contents Installation Procedure neoHub Mini Explained neoHub Outputs OpenTherm Pairing the neoAir V2 to the neoHub Mini Pairing the neoHub Mini to WiFi Wiring Diagram 11-1 Reset Factory Reset mini...
- Page 4 Step 1 Using a small screwdriver, slightly loosen the screws located at the base of the neoHub Mini. You can then carefully separate the front panel from the back plate. Step 2 Step 3 Terminate the cables to the ub according to your system type, examples are shown in the wiring diagrams at the back of this manual.
- Page 5 mini...
- Page 6 Power/WiFi Status L neoHub Mini Explained Not Connected to WiFi Connected to WiFi Connected to Heatmiser CH1 & CH2 Output status lights Output On Pairing Mode Output Overridden On Reset Power/Pair/Reset button Zone Pairing/Override buttons Press and hold for 15 Press and hold to enable pairing mode seconds to factory reset.
- Page 7 The neoHub Mini gives you control heating zones. To control configure the neoAir in mode 1, then pair the neoAir to CH1 heat output. OpenTherm increases the efficiency of the heating system by automatically adjusting the boiler’s water temperature This is calculated by using the actual/target temperature, plus the demand from the system.
- Page 8 On the neoHub Mini... Press and hold the ‘CH1’ or ‘CH2’ button for seconds The zone on the Hub will flash to indicate pairing mode is active, example shown below pairing to CH1...
- Page 9 On the neoAir... • Use the Left / Right arrow keys to scroll to • Press and hold the Tick key for 3 seconds to turn off the display. • SETUP is now highlighted, press the tick key once. • The display will show a small 01 in the top right hand corner. •...
- Page 10 Once the neoAir has successfully paired to the neoHub Mini, the zone on the ub will turn off. he neoAir To test the neoAir is switching the output on/off, use the up/down keys to raise the set temperature above the current room temp, press the tick key once.
- Page 11 mini...
- Page 14 Warning - This reset will remove any thermostats that have paired and will also reset the WiFi connection settings. You will have to reconfigure these after resetting. To reset all settings stored in the neoHub Mini; Press and hold the Power/Pairing button for 15 seconds. The CH1 CH2 lights will start flashing.
- Page 15 Notes ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................mini...
- Page 16 Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical speci cations directly on our website: www.heatmiser.com Heatmiser UK Ltd Units 1-5 Hurstwood Court, Mercer Way Shadsworth Business Park, Blackburn, Lancashire, BB1 2QU, United Kingdom. Twitter: @heatmiseruk Facebook: facebook.com/thermostats...
