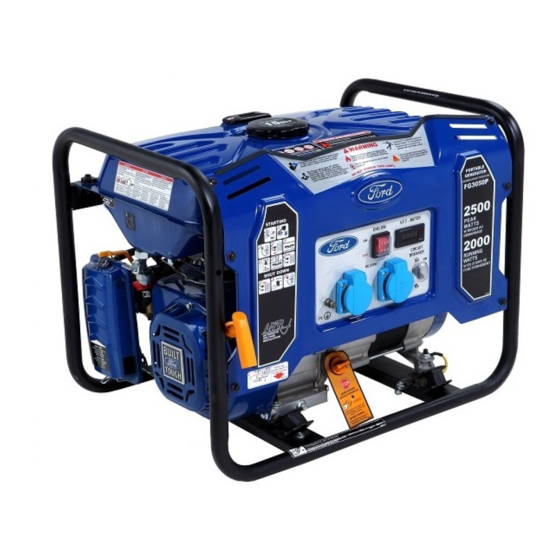

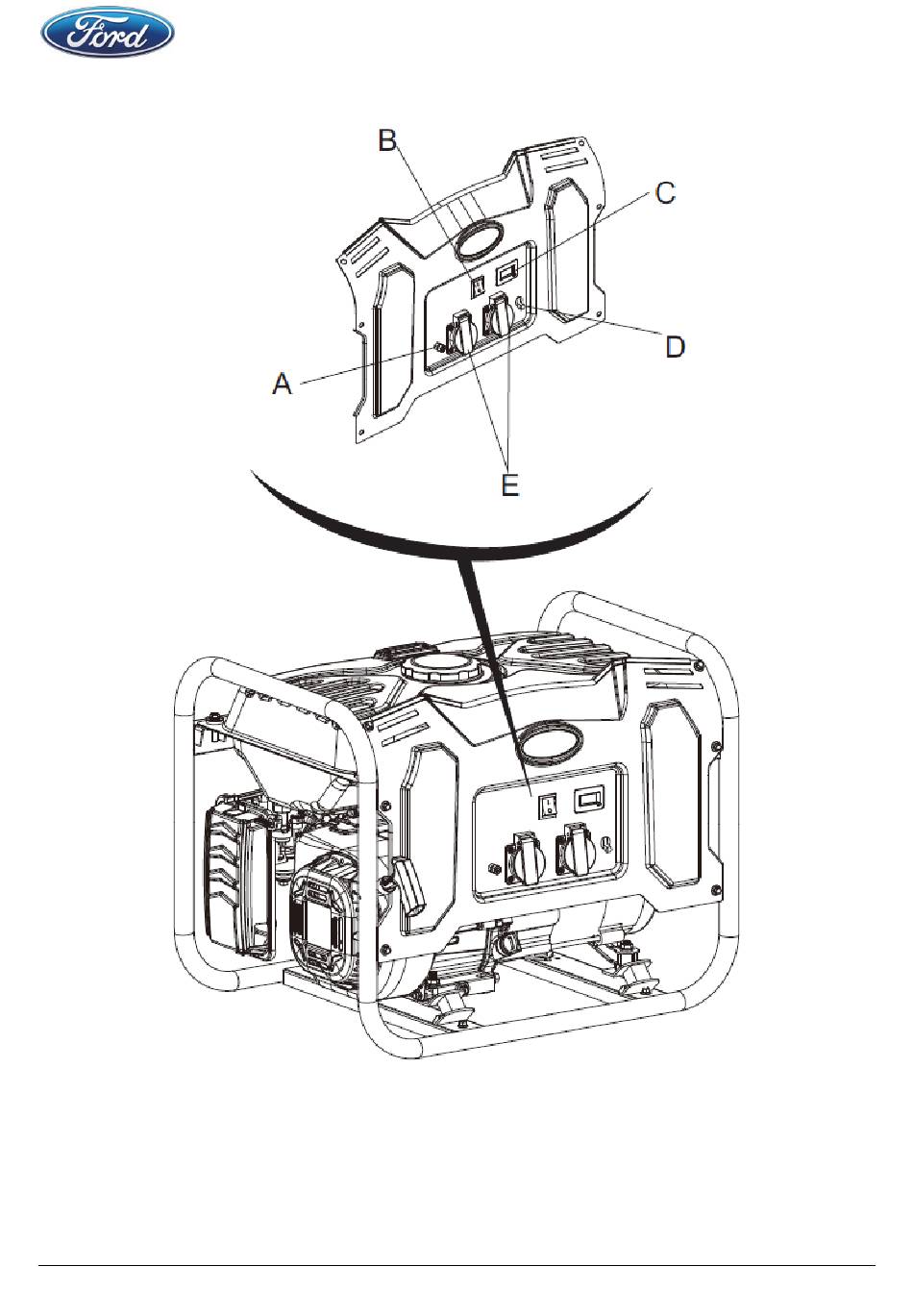

  • Page 1 FG3050P / FG4050P / FG4650P Fig.A1 Copyright © 2016 P a g e www.fordpowerequipment.co.uk...
  • Page 2 FG3050P / FG4050P / FG4650P Fig. A2 Copyright © 2016 P a g e www.fordpowerequipment.co.uk...

  • Page 3: Table Of Contents

    FG3050P / FG4050P / FG4650P APPLICATION ..............5 DESCRIPTION (FIG. A1 & A2) ..........5 PACKAGE CONTENT LIST ............ 5 Unpacking ................... 5 SAFETY SYMBOLS ............... 6 SAFETY INSTRUCTIONS ............6 ASSEMBLY ................9 Remove shipping bracket (See Fig. 1) ..........9 Recoil starting (Fig.
  • Page 4 FG3050P / FG4050P / FG4650P OIL RECOMMENDATIONS ..........16 AIR FILTER (SEE FIG. 15) ..........17 CHECKING SPARK PLUG (SEE FIG. 16) ......17 SPARK ARRESTOR ............. 17 COOLING SYSTEM ............. 17 CARBURETTOR ADJUSTMENT ..........17 REPLACING FUEL FILTER (SEE FIG. 17) ......18 DRAINING FUEL TANK AND CARBURETTOR ......

  • Page 5: Application

    GASOLINE GENERATOR FG3050P / FG4050P / FG4650P Thank you for purchasing this superior quality portable generator from Ford Power Equipment. When operating and maintaining this product as instructed in this manual, your generator will give you many years of reliable service.

  • Page 6: Safety Symbols

    FG3050P / FG4050P / FG4650P 4 SAFETY SYMBOLS The following symbols are used in this manual and/or on the machine: Indicates a potentially hazardous situation which could result in serious injury or death if not avoided. WARNING! Indicates a potentially hazardous situation which could result in damage to equipment or property.
  • Page 7 FG3050P / FG4050P / FG4650P WARNING! Engine exhaust contains chemicals that lead to cause cancer and birth defects.  Always wash hands after handling generator WARNING! To reduce the risk of serious injury, avoid attempting to lift the generator alone WARNING! Never exceed generator’s wattage/amperage capacity.
  • Page 8 FG3050P / FG4050P / FG4650P WARNING! Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which could result in injury.  To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly.

  • Page 9: Assembly

    FG3050P / FG4050P / FG4650P WARNING! Never operate this unit if there are any broken or missing parts and only use Ford Power Equipment replacement parts specifically designed for this unit.  Improper treatment of generator can damage the unit and shorten its life.

  • Page 10: Adding / Checking Engine Oil (See Fig. 3)

    FG3050P / FG4050P / FG4650P 6.3 Adding / Checking engine oil (See Fig. 3)  Place generator on a level surface.  Remove the crankcase dipstick to ensure you do not overfill the engine.  Insert a funnel into the crankcase dipstick...

  • Page 11: Operating Instructions

    FG3050P / FG4050P / FG4650P  Use a ground fault circuit interrupter GFCI (North America) or RCD (EU) in a damp or highly conductive area, such as metal decking or steel work.  Never plug electronic devices into generator having frayed, worn, or bare wires. Never touch bare wires or make contact with receptacles.

  • Page 12: How To Stop The Engine (See Fig. 10-12)

    FG3050P / FG4050P / FG4650P can let go which could result in injury.  To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly. Fig. 7 Fig. 6 SKIP THIS IF THE ENGINE IS WARM OR HOT Fig.

  • Page 13: Receptacles And Extension Cords

    FG3050P / FG4050P / FG4650P 7.4 Receptacles and extension cords Only use high quality, well-insulated, grounded extension cords in good condition with generator receptacles. Follow each load manufacturer’s power rating recommendation when selecting receptacle and extension cord. CAUTION! Do not connect 3-phase loads to generator.

  • Page 14: Power Management

    FG3050P / FG4050P / FG4650P  When the Run/Maintenance Timer displays P100, it is reminding you to change/clean the air filter, clean the air filter, and change the oil. Fig 13 11 POWER MANAGEMENT  Start engine without anything connected to generator.

  • Page 15: Pre-Operation Steps

    FG3050P / FG4050P / FG4650P WARNING! Before inspecting or servicing this machine, make sure the engine is off and no parts are moving. Disconnect the spark plug wire and move it away from the spark plug. 14 PRE-OPERATION STEPS Before starting the engine, perform the following pre-operation steps: ...

  • Page 16: Oil Recommendations

    FG3050P / FG4050P / FG4650P 18 OIL RECOMMENDATIONS  Do not use special additives.  Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected. Note: Below 40°F (4°C) the use of SAE 30 will result in hard starting.

  • Page 17: Air Filter (See Fig. 15)

    FG3050P / FG4050P / FG4650P 19 AIR FILTER (SEE FIG. 15)  A dirty air filter will reduce the life span of the engine, make it difficult to start the engine, and reduce the unit’s performance.  To clean, remove the air filter cover.

  • Page 18: Replacing Fuel Filter (See Fig. 17)

    FG3050P / FG4050P / FG4650P 24 REPLACING FUEL FILTER (SEE FIG. 17) Occasionally the fuel filter may become clogged and need replacing. To purchase a replacement fuel filter contact your supplier (see manual back) or your local small Engine repair shop.

  • Page 19: Storage And Transportation Of The Generator (See Fig. 18)

    FG3050P / FG4050P / FG4650P 26 STORAGE AND TRANSPORTATION OF THE GENERATOR (SEE FIG. 18)  Remove any debris that has collected on the generator and around the muffler and control panel. Use a brush or vacuum to remove loose dirt.

  • Page 20: Troubleshooting

    FG3050P / FG4050P / FG4650P 30 TROUBLESHOOTING Problem Cause Solution Engine is running, but AC Open circuit breaker Reset circuit breaker output is not available Poor connection Check and repair Defective cord set Check and repair Connected device is faulty...

  • Page 21: Electrical Diagram (Recoil Starter Type)

    FG3050P / FG4050P / FG4650P 31 ELECTRICAL DIAGRAM (RECOIL STARTER TYPE) Copyright © 2016 P a g e | 21 www.fordpowerequipment.co.uk...

  • Page 22: Service

    FG3050P / FG4050P / FG4650P 32 SERVICE How to contact us: (To order parts, receive warranty assistance, or other services inquiries) Please see contact data on the back of this manual. Record the following information bellow for service or warranty assistance...
