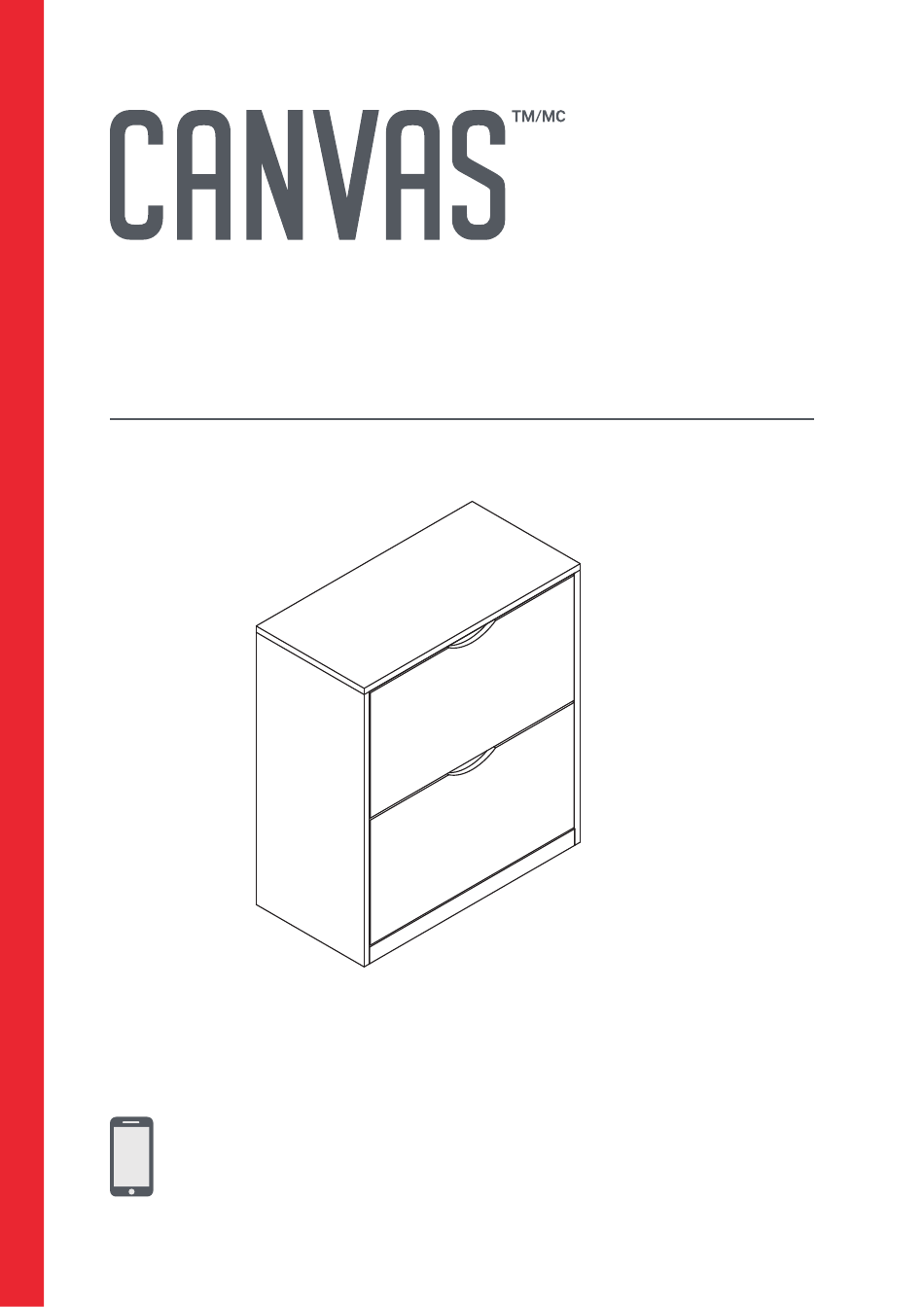

- Page 1 HUBBARD 2-TIER SHOE STORAGE CABINET MODEL NO. 168-0081-8 ASSEMBLY INSTRUCTIONS HAVING TROUBLE? TOLL-FREE: 1-888-670-6684...
-
Page 2: Tools Required
READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE ASSEMBLING AND USING THE STORAGE CABINET. how it makes up the fabric of your home. That's why the CANVAS assortment gets • This product is intended for domestic indoor use only. its inspiration from Canadians and the •... -
Page 3: Parts List
PARTS LIST EXPLODED VIEW ITEM DESCRIPTION QUANTITY Left End Right End Drawer Fronts Divider Fronts Divider Backs Drawer Bottoms Support Rail Skirt Skirt Back Backs HUBBARD 2-TIER SHOE STORAGE CABINET HUBBARD 2-TIER SHOE STORAGE CABINET... - Page 4 PARTS LIST EXPLODED VIEW ITEM DESCRIPTION QUANTITY Angle Head Screws Wood Dowels Hidden Cams Silver Flat Head Screws Fasteners Screws Long Screws Pan Head Screws Left Flip Frames Right Flip Frames Anti-Tip Hardware Expanding Screws HUBBARD 2-TIER SHOE STORAGE CABINET HUBBARD 2-TIER SHOE STORAGE CABINET...
- Page 5 S T EP- BY - STE P I N S T RUCTI O N STEP 1 STEP 2 REQUIRES D, I, J, 4 REQUIRES D, I, J, 6, 7 NOTE: Two people are needed to build this unit. Fasten LEFT FLIP FRAME (I) and RIGHT FLIP FRAME (J) to DIVIDER BACK (6) and Fasten LEFT FLIP FRAME (I) and RIGHT FLIP FRAME (J) to DRAWER FRONT (4), Drawer Bottom (7) , using eight SILVER FLAT HEAD SCREWS（D).
- Page 6 S T E P- B Y -STE P I N S TRUCTI O N STEP 3 STEP 4 REQUIRES A, 2, 3 REQUIRES A, K, H, 1 Insert four ANGLE HEAD SCREWS (A) into the TOP (1). Insert three ANGLE HEAD SCREWS (A) into LEFT END (2). Hand tighten the ANGLE HEAD SCREWS.
- Page 7 S T EP- B Y - STE P I N S T RUC TIO N STEP 5 STEP 6 REQUIRES B, C , 2 , 3 , 8 , 9, 10 REQUIRES 2, 3, 11 Insert four WOOD DOWELS (B) into SKIRT (9) and SKIRT BACK (10). Insert the BACK (11) into the groove between the LEFT END (2) and the RIGHT END (3).
- Page 8 S T EP- B Y- STE P I N S T RUC TI O N STEP 8 STEP 7 REQUIRES D, E, I, J, 2, 3 REQUIRES B, C, F, 1, 2, 3, 8, 11 Retrieve completed drawers. Insert four WOOD DOWELS (B) to THE TOP (1). Insert FASTENER (E) to aflix it to the LEFT FLIP FRAME (I), using one Insert four HIDDEN CAMS (C) into LEFT END（2）and RIGHT END（3）.
- Page 9 S TE P- B Y - S TEP IN S T RUC TIO N STEP 10 STEP 9 REQUIRES G, K, L REQUIRES D, I, J, 5 Carefully stand your unit upright and place in its final location. Fasten DIVIDER FRONT (5) to LEFT FLIP FRAME (I) and RIGHT FLIP FRAME (J), Using ANTI-TIP HARDWARE as a guide, mark 2 spots on the wall.
-
Page 10: Maximum Weight Capacity
S TEP-B Y - STE P I N S T RUC TIO N MAXIMUM WEIGHT CAPACITY This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. Please make sure that all the objects are removed before moving the assembled unit. -
Page 11: Warranty
WARRANTY This CANVAS™ product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse.
