Instruction Manual

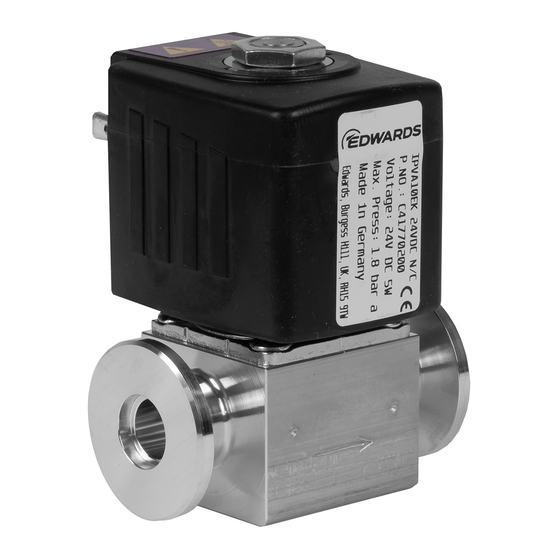

IPVA10EK Air Admittance Valve
C417-60-880
Issue A Original
Item Number
C417-60-000
C417-60-100
C417-60-200
C417-70-000
C417-70-100
C417-70-200
Advertisement
Table of Contents
Related Manuals for Edwards IPVA10EK
Summary of Contents for Edwards IPVA10EK
- Page 1 C417-60-880 Issue A Original Instruction Manual IPVA10EK Air Admittance Valve Description Item Number Normally open valve - 230 V a.c. C417-60-000 Normally open valve - 110 V a.c. C417-60-100 Normally open valve - 24 V d.c. C417-60-200 Normally closed valve - 230 V a.c.
- Page 2 Declaration of Conformity Edwards Limited, Crawley Business Quarter, Manor Royal Crawley, West Sussex, RH10 9LW, UK declare under our sole responsibility, as manufacturer and person within the EU authorised to assemble the technical file, that the product(s) Normally open valves: 230 V a.c.
- Page 3 The relevant technical documentation has been compiled in accordance with Annex VII Part B. In response to a reasoned request by the national authorities, Edwards Ltd undertakes to provide relevant information on the partly completed machinery (via email).
- Page 4 This page intentionally blank.
-
Page 5: Table Of Contents
For return of equipment, complete the HS Forms at the end of this manual. Illustrations Figure Page Valve dimensions ......................4 Electrical supply socket ....................6 © Edwards Limited 2013. All rights reserved. Page i Edwards and the Edwards logo are trademarks of Edwards Limited. - Page 6 C417-60-880 Issue A This page has been intentionally left blank. Page ii © Edwards Limited 2013. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
-
Page 7: Introduction
The units used throughout this manual conform to the SI international system of units of measurement. Description The IPVA10EK valve is solenoid-operated and is designed for the automatic admittance of air or vent gas into a vacuum system. The vacuum system is isolated from atmosphere (or the vent gas supply) by a fluoroelastomer pad on the base of the valve-plunger which seals against the body of the valve. -
Page 8: Technical Data
110 V a.c. ±10% 24 V d.c. +10%, -5%* * Voltage tolerance reduced at elevated ambient temperatures; maximum recommended ambient temperature: 40°C Page 2 © Edwards Limited 2013. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited. -
Page 9: Materials
C417-60-000 240 V a.c. C417-70-000 110 V a.c. C417-60-100 110 V a.c. C417-70-100 24 V d.c. C417-60-200 24 V d.c. C417-70-200 © Edwards Limited 2013. All rights reserved. Page 3 Edwards and the Edwards logo are trademarks of Edwards Limited. -
Page 10: Valve Dimensions
C417-60-100 Figure 1A 110 V a.c. C417-70-100 Figure 1A 24 V d.c. C417-60-200 Figure 1A 24 V d.c. C417-70-200 Figure 1B Page 4 © Edwards Limited 2013. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited. -
Page 11: Installation
Unpack and inspect Remove all the packing materials and protective covers and check the IPVA10EK valve. If the valve is damaged, notify the supplier and carrier in writing within three days; state the Item Number of the valve together with the order number and the supplier's invoice number. -
Page 12: Electrical Supply Socket
Sealing gasket Retaining screw Supply (-ve/N or +ve/L) Connector block Sealing gland Earth Electrical supply socket Strain-relief nut Supply (+ve/L or -ve/N) Page 6 © Edwards Limited 2013. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited. -
Page 13: Operation
WARNING Do not touch the surface of the valve coil during operation. It may be hot. Once correctly installed, the operation of the IPVA10EK valve is dependent only upon the switching of the electrical supply to the valve: Normally-open valves close when the electrical supply to the valve is switched on; the valve opens ... -
Page 14: Maintenance
250°C or more. These breakdown products are very dangerous. IPVA10EK valves do not require routine maintenance during normal operational life and cannot be serviced by the user. Carry out the following checks when maintaining the vacuum system: Check that the connection to the vacuum system (and to the vent gas supply, if fitted) is secure. -
Page 15: Storage And Disposal
C417-60-880 Issue A Storage and disposal Storage Place protective covers over the valve-ports and store the IPVA10EK valve in cool, dry conditions until required for use. When required, prepare and install the valve as described in Section Disposal Dispose of the valve and any components removed from it safely in accordance with all local and national safety and environmental requirements. - Page 16 C417-60-880 Issue A This page has been intentionally left blank. Page 10 © Edwards Limited 2013. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
