M18 HCCT

Advertisement

loading
Need help?

Need help?

Do you have a question about the Heavy Duty M18 HCCT and is the answer not in the manual?

Questions and answers

Related Manuals for Milwaukee Heavy Duty M18 HCCT

Summary of Contents for Milwaukee Heavy Duty M18 HCCT

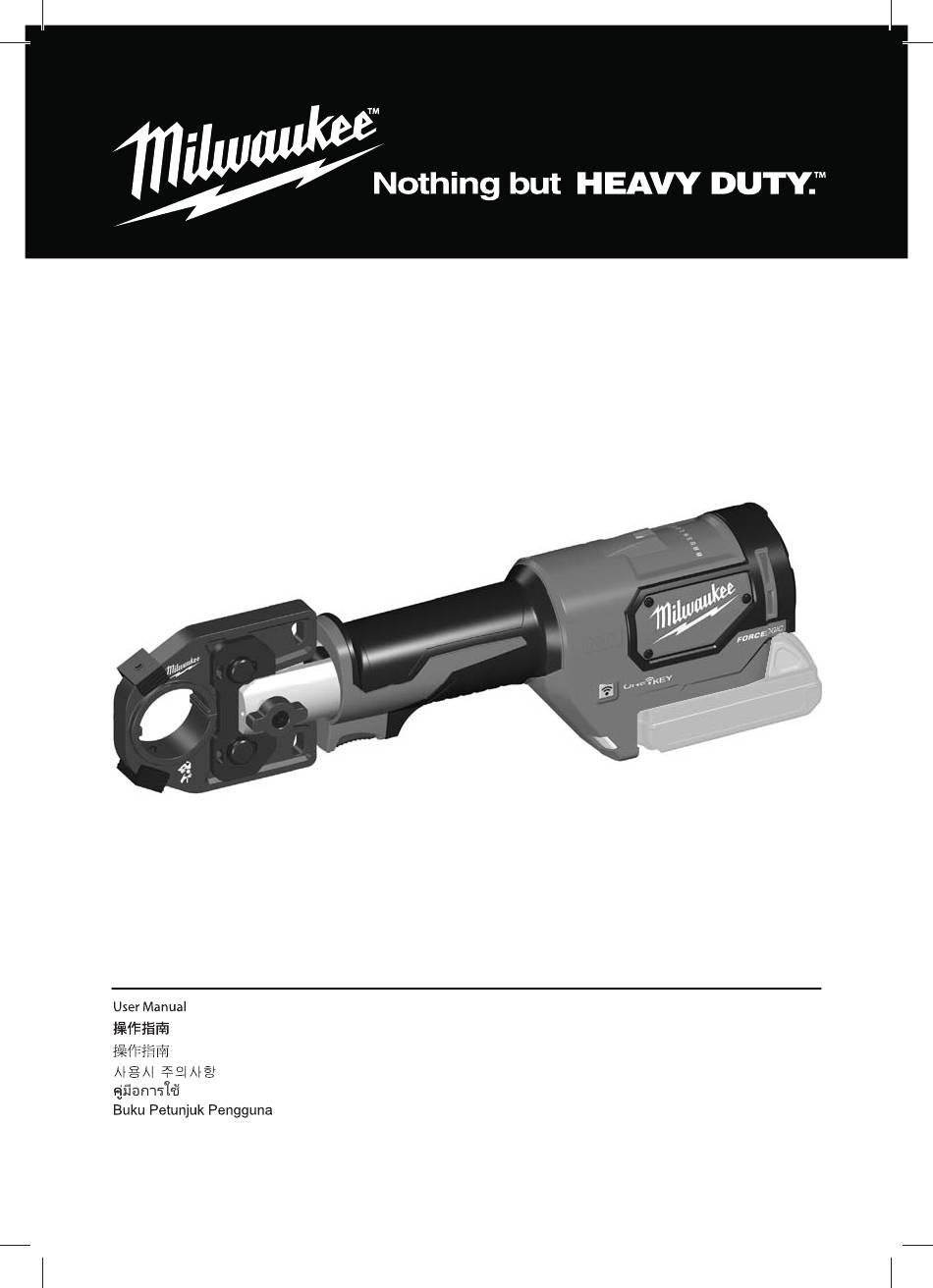

  • Page 1 M18 HCCT...
  • Page 2 M18 HCCT...
  • Page 3 Accesso ry Aksesori...
  • Page 5 78-100 % 55-77 % 33-54 % 10-32 % <10 %...
  • Page 6 Crimp 1 Crimp 2 ACSR CU/AL www.milwaukeetool.
  • Page 7 > 340° 90° 90° START...
  • Page 8 Auto Stop...
  • Page 9 Auto Stop...
  • Page 10 STOP...
  • Page 12 > 350° 90° 90°...
  • Page 13 START Auto Stop...
  • Page 14 STOP...
  • Page 16 Service...

  • Page 17: Technical Data

    TECHNICAL DATA M18 HCCT Frequency band 2402–2480 MHz Battery voltage 18 V Nominal force 53 kN Compression range: Diameter max. Copper 300 mm Aluminium 150 mm Cutting range depends on material ACSR: Aluminium- / Steel-cable max. 22.5 mm Copper- / Aluminium-cable max. 35 mm Other materials and their diameter depend on the speci c jaws.

  • Page 18: Safety Warnings

    Green (after Solid WARNING! displayed. Green or Solid Red) MILWAUKEE recommends that the tool be inspected and This device contains a button-type/coin cell preventative maintenance lithium battery. A new or used battery can cause completed.
  • Page 19 ADDITIONAL BATTERY SAFETY WARNINGS CRIMPING TOOL SAFETY WARNINGS WARNING! To reduce the risk of re, personal Crimping tools and crimping devices must only be used injury, and product damage due to a short circuit, by trained personnel in electrotechnical applications. never immerse your tool, battery pack, or charger in Check crimping tool, jaws, and dies for cracks and other uid or allow a uid to ow inside them.

  • Page 20: Maintenance

    WORKING INSTRUCTIONS FOR CUTTING Cutting Before cutting, ensure cutting blades are properly Set-up of the working area installed. Before work begins, the cables or cords must be 1. Guide the cable at right angles to the cutting of the disconnected and it must be ensured that they remain cable cutter.

  • Page 21: Transporting Lithium Batteries

    Should components need to be replaced Ensure that battery pack is secured against which have not been described, please contact one movement within packaging. of our MILWAUKEE service agents (see our list of Do not transport batteries that are cracked or that guarantee/service addresses). leak.
  • Page 22 Accessory - Not included in standard equipment, available as an accessory. Do not dispose electric tools, batteries/ rechargeable batteries together with household waste material. Electric tools and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
  • Page 38 M18 HCCT 2402–2480 MHz 18 V 53 kN 300 mm 150 mm ACSR: 22.5 mm 35 mm EPTA 01/2003 (Li-lon 2.0 / 9.0 Ah) 3.7 kg – 4.3 kg 3.7 kg – 4.3 kg -18°C – +50°C M18B M12-18 EN 62841 = 3dB(A)) 74.6 dB (A) = 3dB(A))
  • Page 39 6. LED 8. LED / System M18 System 30,000 MILWAUKEE...
  • Page 40 60 kN 33% ( 33% (...
  • Page 41 90° “ “) 30,000 MILWAUKEE MILWAUKEE ( 4–5 50°C (122°F) 27°C 30% - 50%...
  • Page 42 MILWAUKEE...

  • Page 43: Data Teknis

    DATA TEKNIS M18 HCCT Pita frekuensi 2402–2480 MHz Tegangan baterai 18 V Gaya nominal 53 kN Kisaran kompresi: Maks. Diameter. Tembaga 300 mm Aluminium 150 mm Rentang pemotongan tergantung pada material: ACSR: Diameter maks. kabel Baja/Aluminium 22,5 mm Diameter maks. kabel Tembaga/Aluminium 35 mm Bahan lain dan diameternya tergantung pada jenis rahang.

  • Page 44: Peringatan Keselamatan

    Hijau Terang atau Hanya gunakan pengisi daya System M18 untuk ditampilkan. Merah Terang) mengisi daya paket baterai System M18. Jangan MILWAUKEE menggunakan unit baterai dari sistem lain. merekomendasikan alat ini Untuk menghindari cedera dan kerusakan, jangan diperiksa dan perawatan merendam perkakas, baterai lepasan atau pengisi...
  • Page 45 PERINGATAN! Pemotong Kabel Sebelum proses pemotongan dimulai, akses masuk harus disekat sesuai dengan peraturan setempat. Peranti ini mengandung baterai sel litium berbentuk kancing/koin. Baterai baru atau bekas Hanya diizinkan memotong kabel yang telah dapat menyebabkan luka bakar internal yang parah dilepaskan dari catu daya.
  • Page 46 Mengaktivasi sakelar kontrol akan memulai proses PERINGATAN! Untuk menghindari risiko ledakan, pengempaan, yang ditandai dengan cetakan crimping tersengat listrik dan kerusakan pada bangunan dan bergerak menyatu. peralatan, jangan memotong kabel beraliran listrik. Pengguna bertanggung jawab untuk memeriksa dan Perangkat tidak berinsulasi.
  • Page 47 Pastikan bahwa terminal kontak baterai terlindungi cadang MILWAUKEE. Jika komponen harus diganti, dan terisolasi untuk mencegah korsleting. namun belum ada penjelasannya, hubungi salah satu agen servis MILWAUKEE kami (lihat daftar alamat Pastikan wadah baterai sudah dikencangkan penggaransi/servis). agar tidak terpengaruh oleh pergerakan di dalam pengemasannya.
  • Page 48 memperoleh pemberitahuan lebih lanjut. SIMBOL Baca petunjuk dengan cermat sebelum memulai menggunakan produk. Gunakan kacamata pelindung. Produk ini mengandung baterai sel litium berbentuk kancing/koin. PERHATIAN! PERINGATAN! BAHAYA! Lepaskan paket baterai sebelum memulai pekerjaan apa pun pada produk. Bahaya sengatan listrik PERINGATAN! Terdapat risiko cedera dari fragmen yang terlontar.
  • Page 49 Bahasa Indonesia...
