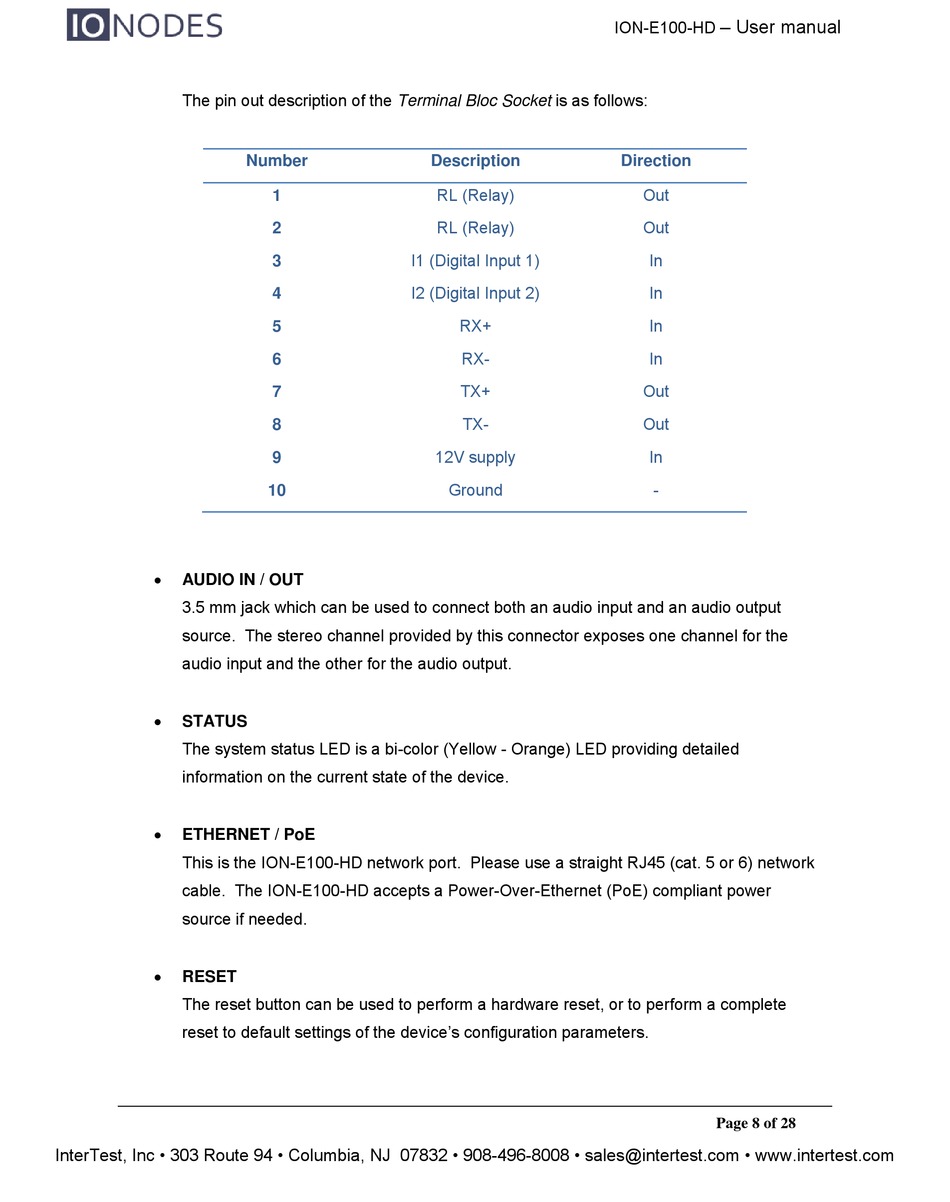

InterTest IONODES ION-E100-HD User Manual page 8

The pin out description of the Terminal Bloc Socket is as follows:

AUDIO IN / OUT
3.5 mm jack which can be used to connect both an audio input and an audio output
source. The stereo channel provided by this connector exposes one channel for the
audio input and the other for the audio output.

STATUS
The system status LED is a bi-color (Yellow - Orange) LED providing detailed
information on the current state of the device.

ETHERNET / PoE
This is the ION-E100-HD network port. Please use a straight RJ45 (cat. 5 or 6) network
cable. The ION-E100-HD accepts a Power-Over-Ethernet (PoE) compliant power
source if needed.

RESET
The reset button can be used to perform a hardware reset, or to perform a complete
reset to default settings of the device's configuration parameters.
InterTest, Inc • 303 Route 94 • Columbia, NJ 07832 • 908-496-8008 • sales@intertest.com • www.intertest.com
Number
1
2
I1 (Digital Input 1)
3
I2 (Digital Input 2)
4
5
6
7
8
9
10
Description
RL (Relay)
RL (Relay)
RX+
RX-
TX+
TX-
12V supply
Ground
– User manual
ION-E100-HD
Direction
Out
Out
In
In
In
In
Out
Out
In
-
