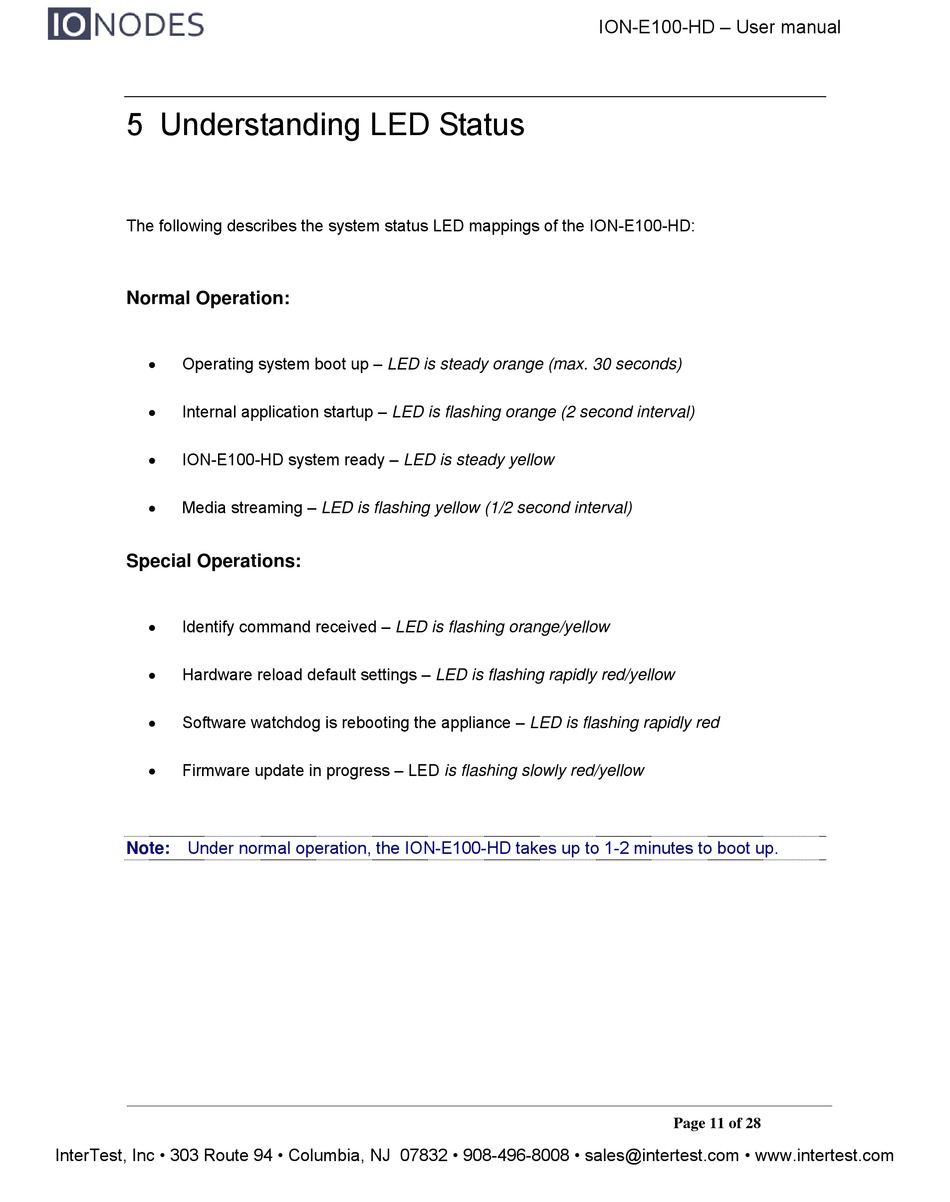

5 Understanding LED Status

The following describes the system status LED mappings of the ION-E100-HD:

Normal Operation:

 Operating system boot up – LED is steady orange (max. 30 seconds)
 Internal application startup – LED is flashing orange (2 second interval)
 ION-E100-HD system ready – LED is steady yellow
 Media streaming – LED is flashing yellow (1/2 second interval)

Special Operations:

 Identify command received – LED is flashing orange/yellow
 Hardware reload default settings – LED is flashing rapidly red/yellow
 Software watchdog is rebooting the appliance – LED is flashing rapidly red
 Firmware update in progress – LED is flashing slowly red/yellow
Note: Under normal operation, the ION-E100-HD takes up to 1-2 minutes to boot up.
