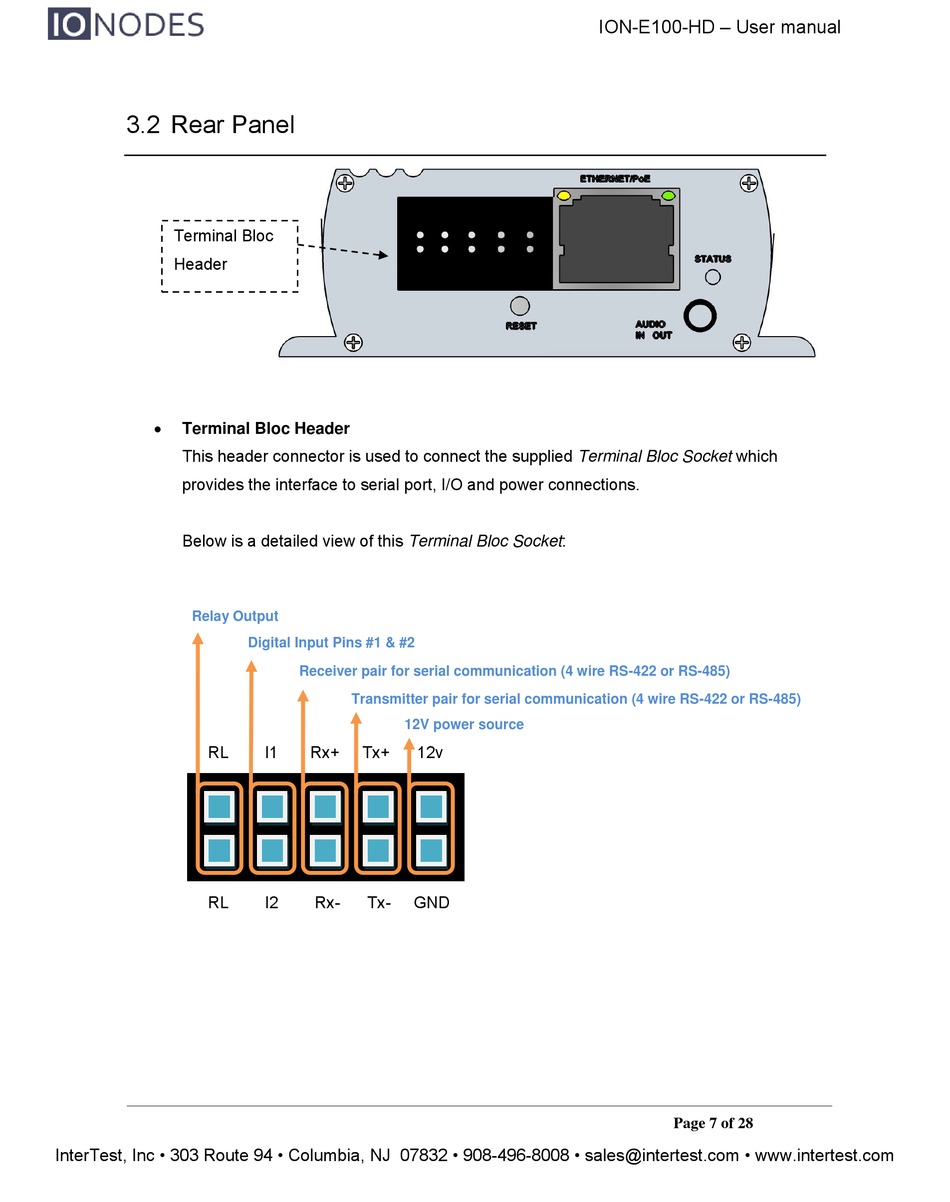

3.2 Rear Panel

Terminal Bloc
Header

Terminal Bloc Header
This header connector is used to connect the supplied Terminal Bloc Socket which
provides the interface to serial port, I/O and power connections.
Below is a detailed view of this Terminal Bloc Socket:
Relay Output
RL
RL
InterTest, Inc • 303 Route 94 • Columbia, NJ 07832 • 908-496-8008 • sales@intertest.com • www.intertest.com
Digital Input Pins #1 & #2
Receiver pair for serial communication (4 wire RS-422 or RS-485)
Transmitter pair for serial communication (4 wire RS-422 or RS-485)
12V power source
I1 Rx+ Tx+
I2 Rx- Tx- GND
12v
