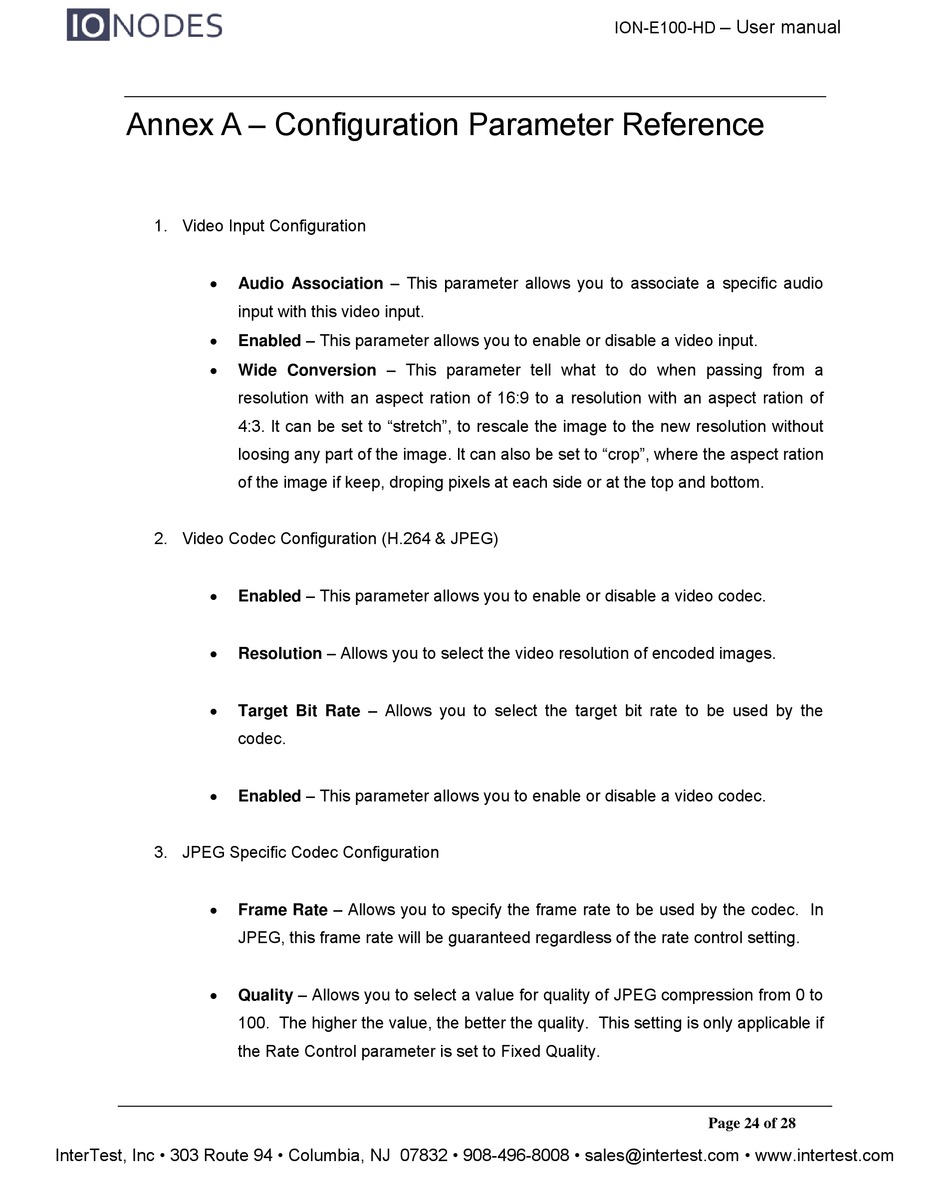

Annex A – Configuration Parameter Reference
1. Video Input Configuration



2. Video Codec Configuration (H.264 & JPEG)




3. JPEG Specific Codec Configuration


InterTest, Inc • 303 Route 94 • Columbia, NJ 07832 • 908-496-8008 • sales@intertest.com • www.intertest.com
Audio Association – This parameter allows you to associate a specific audio
input with this video input.
Enabled – This parameter allows you to enable or disable a video input.
Wide Conversion – This parameter tell what to do when passing from a
resolution with an aspect ration of 16:9 to a resolution with an aspect ration of
4:3. It can be set to "stretch", to rescale the image to the new resolution without
loosing any part of the image. It can also be set to "crop", where the aspect ration
of the image if keep, droping pixels at each side or at the top and bottom.
Enabled – This parameter allows you to enable or disable a video codec.
Resolution – Allows you to select the video resolution of encoded images.
Target Bit Rate – Allows you to select the target bit rate to be used by the
codec.
Enabled – This parameter allows you to enable or disable a video codec.
Frame Rate – Allows you to specify the frame rate to be used by the codec. In
JPEG, this frame rate will be guaranteed regardless of the rate control setting.
Quality – Allows you to select a value for quality of JPEG compression from 0 to
100. The higher the value, the better the quality. This setting is only applicable if
the Rate Control parameter is set to Fixed Quality.
