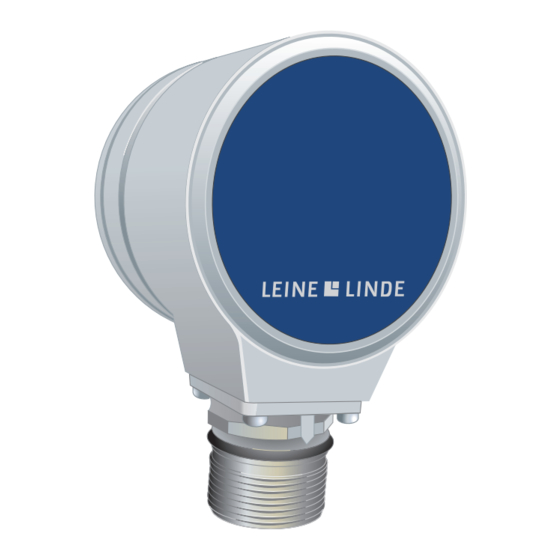

- Page 1 Encoder models Drehgebermodelle 编码器型号 编码器型号 Mounting instructions Montageanleitung 安装说明 安装说明...
- Page 2 Leine & Linde is a Swedish company dedicated to SWEDEN / SVERIGE (Head offi ce) production of encoders for heavy duty applications. T +46-(0)152-265 00 Contact Some of the values offered by Leine & Linde are local F +46-(0)152-265 05 info@leinelinde.se technical support and possibility of 24 hours express delivery.
-
Page 3: Risk Of Bodily Injury
ISA 608 1.1) The following models are fully covered by these mounting instructions: IHA 608 RSA 607 Folgende Modelle werden vollständig von dieser RSA 608 Montageanleitung abgedeckt: Risk of bodily RHA 607 1.2) injury RHA 608 本安装说明全面涵盖下列型号： Verletzungs- gefahr The following models have customised properties... - Page 4 2.8) 2.1 Fieldbus encoder 2.11 Fieldbus encoder 2.19 Encoder with SSI or 2.7) 2.9) 2.2 Hollow shaft 2.12 Solid shaft EnDat interface 2.3 Clamping ring 2.13 Clamping fl ange 2.20 Solid shaft 2.4 Fixing screw (61sp-type) 2.21 Synchro fl ange 2.5) 2.6) 2.5 Flange (58-type) 2.14 Fixing holes...
- Page 5 3.1) The product is a precision measuring instrument. It should be handled with care, by experienced person- nel. The warnings below apply in the event of effects outside the limit values stated in the product’s data sheet. The product may be damaged Risk of damage 3.1 by ESD discharges if the electronics are touched 3.2 if the shaft is exposed to high mechanical forces...
- Page 6 4 x M3 Mounting of Mounting of hollow shaft clamping fl ange Montage der Montage der Hohlwelle Klemmfl ansch 安装空心轴 安装空心轴 安装夹紧法兰 安装夹紧法兰 Mounting of Alt. mounting synchro fl ange (synchro- or 3 x M4 clamping fl ange) 3 x M3 Montage der Syncrofl...
- Page 7 5.1) Hollow shaft 5.1 Check that the dimensions of the mating shaft match the specifi cations in the encoder’s data sheet. 5.2 Check the encoder’s radial runout with slow rotation of complete assembly. The runout should not exceed 0.1 mm, as this may shorten Check points the encoder’s service life or infl...
- Page 8 6.1) 6.1 Use a shielded twisted-pair cable. The shielding must be connected to the chassis at both ends and be earthed at one point. 6.2 Keep potential sources of disturbance at the rec- ommended distance from the cable. Make sure that the length of the cable does not exceed the Electrical value specifi...
- Page 9 10 mm 8 mm PROFIBUS Fit cable*, using the following steps: Step 1. Strip the cable according to the dimensions CANopen in the illustration. DeviceNet Step 2. Open the terminal cover and unscrew the cable bushing. Step 3. Fold the cable shield backwards over the 100 mm shell ring.
-
Page 10: Bus Settings
PROFIBUS 7.9) 7.5) 7.5, 7.6 Set a unique node address for the unit, within the range 00-99. CANopen Set baud rate (only CANopen). DeviceNet Set bus termination on or off (only CANopen and PROFIBUS). Zeroset pushbutton (only CANopen and DeviceNet). Bus settings 7.5, 7.6 Eindeutiger Knotenadresssatz für Ein-... - Page 11 7.10) PROFIBUS Termination shall be made if the actual unit is the end node of the bus. Other units shall not have CANopen termination. DeviceNet For units with M12 connectors the termination is made by plugging a terminating resistor to the empty bus out connector (accessory to be ordered separately, see 7.10).
-
Page 12: Certificates And Approvals
8.1) Produkte von Leine & Linde erfüllen die Aufl agen einer Reihe von Normen und Zulassungen. Auf Anfrage sind Zertifi kate und Dokumentation beim Leine & Linde-Vertreter in Ihrer Nähe erhältlich. 8.1 Zulassung gemäß UL-/CSA-Normen Certifi cates and Die meisten Produkte von Leine & Linde wurden gemäß... - Page 13 9.1) 9.1 Shaft coupling 6-6 mm part number 464192222 9.2) 9.2 Shaft coupling 10-10 mm part number 464333232 9.3 Mounting clamp for synchro fl ange part number 00203005 (1 piece) Accessories 9.4 Mounting bracket for synchro or clamping fl ange 9.3) (alternative mounting, see chapter 4.4) part number 00208011...
- Page 14 Products from Leine & Linde are usually components Monteringsanvisningar på ytterligare språk fi nns på in larger systems. These applications require the www.leinelinde.se system as a whole to be tested, and do not depend on the component specifi cations only. Hay instrucciones de montaje en otros idiomas en Instructions in these mounting instructions apply to www.leinelinde.es...
