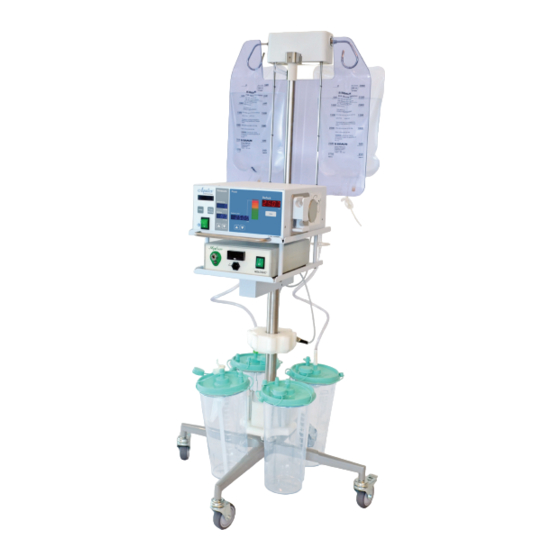

Hologic Aquilex Setup + Troubleshooting Manual

Fluid control system with supply bag scale
Hide thumbs Also See for Aquilex:

Advertisement

Quick Links

Download this manual
Aquilex
Fluid Control System
®
with Supply Bag Scale
Set-up & Troubleshooting Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aquilex and is the answer not in the manual?

Questions and answers

Related Manuals for Hologic Aquilex

Summary of Contents for Hologic Aquilex

  • Page 1 Aquilex Fluid Control System ® with Supply Bag Scale Set-up & Troubleshooting Guide...

  • Page 2: Technical Support

    Technical Support For Hologic Technical Support, please call (800) 442-9892 Hologic Representative: Cell Phone: Email:...
  • Page 3 Set-up SET-UP...
  • Page 5 Set-up For Hologic Technical Support, please call (800) 442-9892 Tandem connect the Ensure the Supply Bag Scale front canister to the is plugged into the t-shaped back canisters using connector on the back of the STEP STEP the tandem ports.
  • Page 6 Set-up For Hologic Technical Support, please call (800) 442-9892 Connect the yellow Y outfl ow tubing connector STEP to the underbuttocks drape. Ensure the drape port is Turn on the Aquilex open so fl uid can return system before any to the canisters.
  • Page 7 Set-up For Hologic Technical Support, please call (800) 442-9892 Set an intrauterine pressure. Aquilex will automatically Hang and spike fl uid bags. STEP adjust its fl ow rate (capable Up to 4 fl uid bags can of 800 ml/min) to maintain be hung.
  • Page 8 Notes...
  • Page 9 Settings SETTINGS...
  • Page 10 SETTINGS...
  • Page 11 Settings For Hologic Technical Support, please call (800) 442-9892 FLUID DEFICIT: Solution Type Examples Defi cit Limits* Hypotonic Glycine, Sorbitol, Mannitol 1,000 ml Isotonic Normal Saline or Lactated Ringers 2,500 ml Intrauterine Pressure: the intrauterine pressure should be at the lowest pressure necessary to distend the uterine cavity and maintain visualization * Remember to always follow hospital policies.
  • Page 12 Notes...
  • Page 13 User Tips USER TIPS...
  • Page 15 User Tips For Hologic Technical Support, please call (800) 442-9892 Changing Canisters How to Display the Total Volume 1. You can press the “Pause/Resume” button. Hold down both the up and down arrows on the defi cit limit display 2. Change the canister and then press to show the total fl uid volume.
  • Page 16 User Tips For Hologic Technical Support, please call (800) 442-9892 How to RePrime Prime Complete Sequence 1. Press “Pause” • The system will beep once 2. Press and hold the “Prime” button for 3 seconds • The interface will say “Prime Successful”...

  • Page 17: Error Codes

    Error Codes ERROR CODES...
  • Page 19 Error Codes For Hologic Technical Support, please call (800) 442-9892 START-UP SEQUENCE MESSAGES Pump Display Message Cause Instructions and Audible Tone System Check Running Normal start up sequence Wait for “System OK” message. Normal start up sequence System is ready for operation.
  • Page 20 Error Codes For Hologic Technical Support, please call (800) 442-9892 OPERATIONAL MESSAGES Pump Display Message Cause Instructions and Audible Tone Pause/Resume button has been activated. Pump Paused, Press Resume Roller wheel and vacuum pumps stopped. Press Pause/Resume button again to resume surgery...
  • Page 21 Error Codes For Hologic Technical Support, please call (800) 442-9892 OPERATIONAL MESSAGES (continued) Pump Display Message Cause Instructions and Audible Tone De cit Limit Reached Physician must respond appropriately. Conduct manual defi cit Fluid defi cit equals defi cit limit set by user 1 beep assessment, if necessary.
  • Page 22 Error Codes For Hologic Technical Support, please call (800) 442-9892 OPERATIONAL MESSAGES (continued) Pump Display Message Cause Instructions and Audible Tone Communication Error Communication error between modules Contact Hologic Technical Support. 5 beeps Calibration Error Software has detected a sensor problem Contact Hologic Technical Support.

  • Page 23: Configuration Images

    Configuration Images CONFIGURATION IMAGES...
  • Page 25 Confi guration Images For Hologic Technical Support, please call (800) 442-9892 Hysteroscopy Side MyoSure Side Bag Defl ector Adjustable High Vacuum Dial Reusable Low Vacuum Tubing High Vacuum Connection (AQL-114) Tubing Connection (AQL-114) Aquilex Power Cord Supply Bag and Canister...
  • Page 26 Confi guration Images For Hologic Technical Support, please call (800) 442-9892 MyoSure Side Hysteroscopy Side Bag Defl ector Actual Defi cit Reading Message & Setup Display Zero Button Prime Button Pause Button Set Defi cit Reading Power Button Actual Intrauterine...
  • Page 27 Confi guration Images For Hologic Technical Support, please call (800) 442-9892 Infl ow Tubing (AQL-110) Y Outfl ow Tubing (AQL-111) Scope Infl ow Bag Spikes Connection Scope Outfl ow Connection Front Canister Connection Reminder: Tube sets are single use. Underbuttocks...
  • Page 28 Confi guration Images For Hologic Technical Support, please call (800) 442-9892 Back of Aquilex System High Vacuum Low Vacuum Tubing Tubing Tandem Tubing Myosure Tubing Outfl ow Tissue Tubing Trap Front of Aquilex System...
  • Page 29 Confi guration Images For Hologic Technical Support, please call (800) 442-9892 Back of Aquilex System Aquilex High Aquilex Low Vacuum Tubing Vacuum Tubing Tandem Tubing Manifold Tubing MyoSure Tubing Outfl ow Tissue Tubing Trap Front of Aquilex System...
  • Page 30 Notes...

  • Page 31: Troubleshooting

    Troubleshooting TROUBLESHOOTING...
  • Page 32 For Hologic Technical Support, please call (800) 442-9892 TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING...
  • Page 33 Troubleshooting For Hologic Technical Support, please call (800) 442-9892 Managing Vacuum Managing Distention and Visualization • Confirm the pump is not in pause mode, vacuum pumps • Aquilex do not run when the system is paused. o Verify the saline bag clamps are open •...
  • Page 34 Notes...
  • Page 35 Hologic, Inc. and/or its subsidiaries in the United States and/or other countries. All other trademarks are the property of their respective owners. This information is intended for medical professionals in the U.S. and other markets and is not intended as a product solicitation or promotion where such activities are prohibited. Because Hologic materials are distributed through websites, eBroadcasts and tradeshows, it is not always possible to control where such materials appear.
  • Page 36 PB-00060-002 (11/11) US only © 2008-2011 Hologic Inc. All rights reserved. Hologic, Affirm, Connect, Dimensions, ImageChecker, SecurView, Selenia, Stereoloc, Quantra and associated logos are trademarks and/or registered trademarks of Hologic Inc. and/or its subsidiaries in the United States and/or other countries.
