Instruction Manual

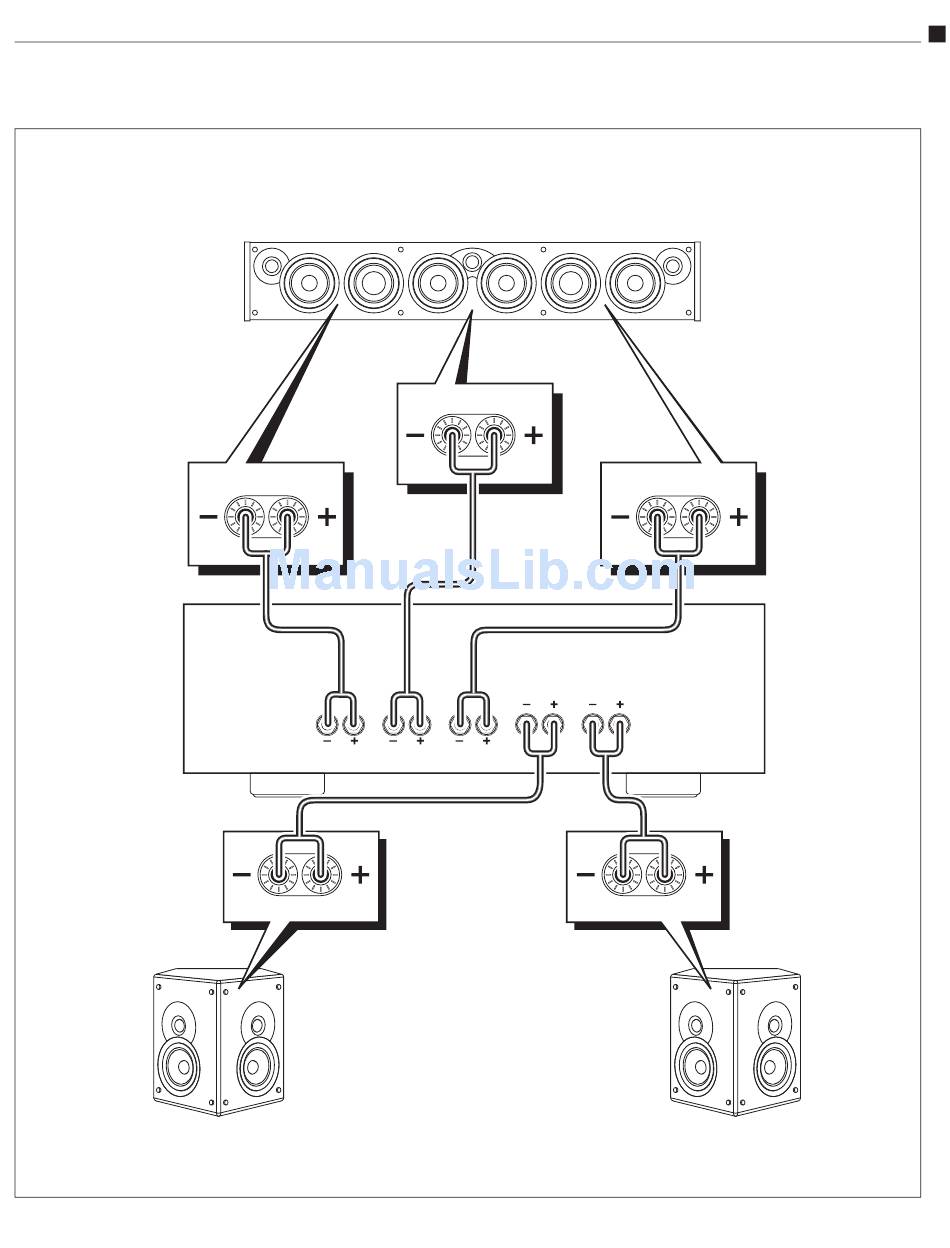

System Wiring

Be sure to connect red (+) on the speaker to
red (+) on the amplifier and black (–) on the
speaker to black (–) on the amplifier.
LEFT
CENTER
RIGHT
LEFT
RIGHT
SURROUND
SURROUND
9
System Wiring
