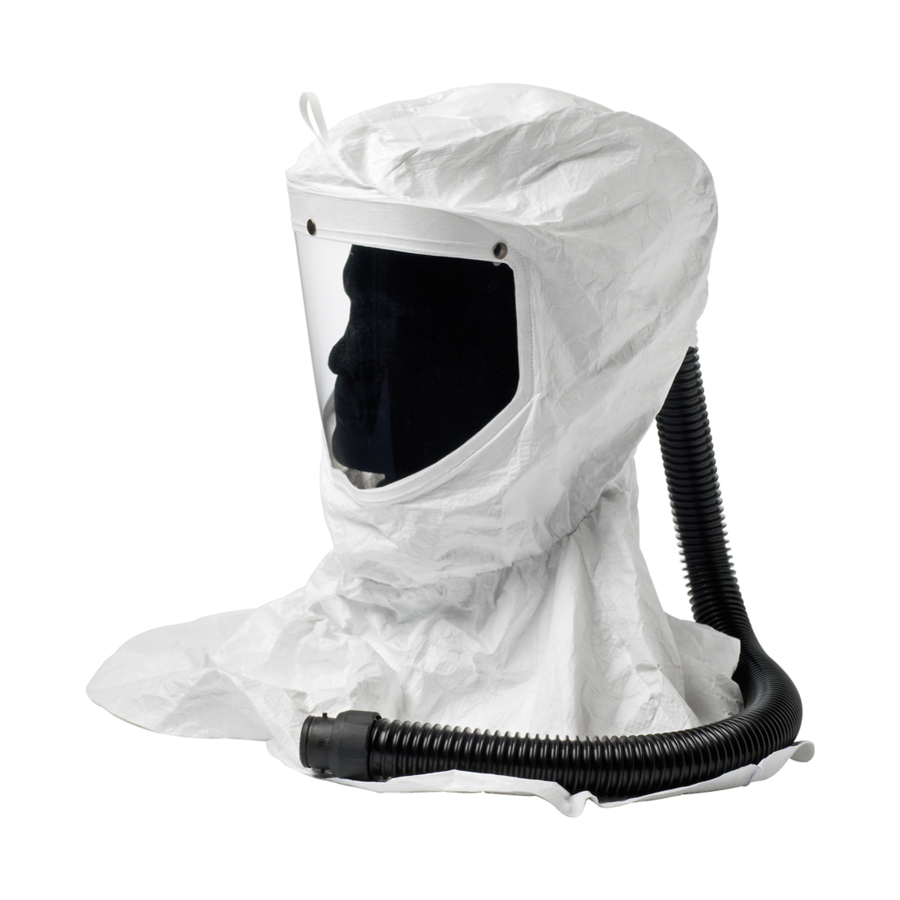

Summary of Contents for Sundstrom SR561
Page 1

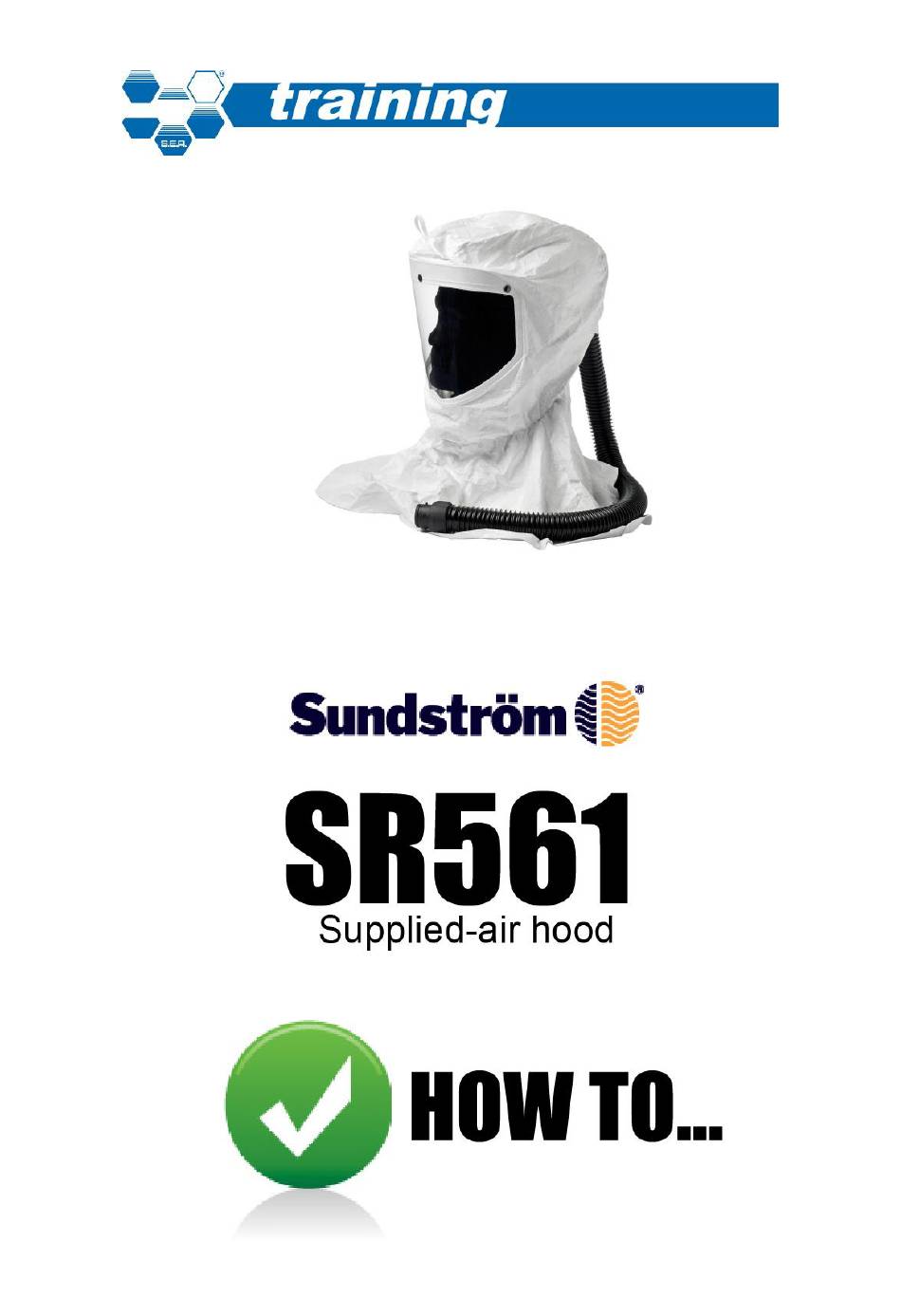

SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 2
– The flow meter is held upright. – The ball moves freely. – The bag seals well around the hose. Check that the O-ring of the hose is in place SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 3
The knob is on the inside of the hood behind the hose. You can reach it without taking off the hood. Turn clockwise to tighten and counter clockwise to widen. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 4
Take the hood off. Switch off the fan, release the belt and take the fan unit off. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 5: Schedule Maintenance
…schedule maintenance The schedule represents the minimum requirements for maintenance routines in order to ensure that equipment will always be in functional condition. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 6
…change the Tyvek hood Release the three press-studs at the top edge of the visor. Turn the hood inside out. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 7
Insert the hose coupling between the reinforcement lips in the hose passage of the hood, and secure it with the press-stud. Insert the head harness into the hood. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 8
…change the hose Release the three press-studs at the top edge of the visor. Turn the hood inside out. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 9
Thread the pin on one side of the hose coupling down through the recess in the head harness. Turn the hose through 180 degrees and insert the second pin. Pull the hose out of the hood. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 10
Snap the press-stud shut at the hose mounting. Insert the head harness into the hood. Secure it with the three press-studs at the top of the visor. Start with the centre press-stud. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
Page 11
…change the head harness Follow relevant parts of the above instructions dealing with changing the hose. SR561 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
