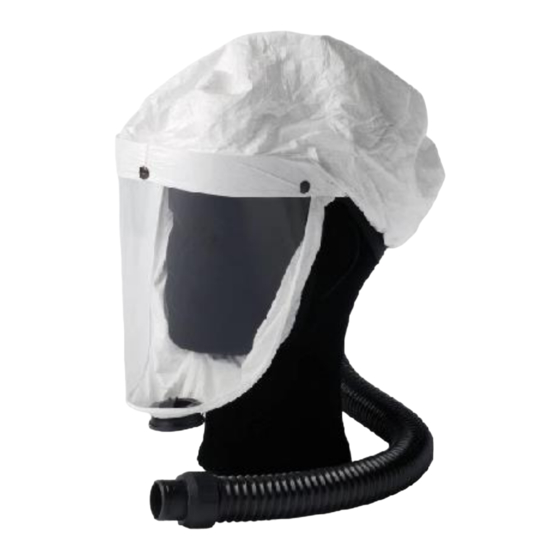

Sundstrom SR562 How-To
Supplied-air hood
Hide thumbs
Also See for SR562:
- Operating instructions manual (18 pages) ,
- Operation instruction manual (15 pages) ,
- Manual (6 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Sundstrom SR562
Summary of Contents for Sundstrom SR562

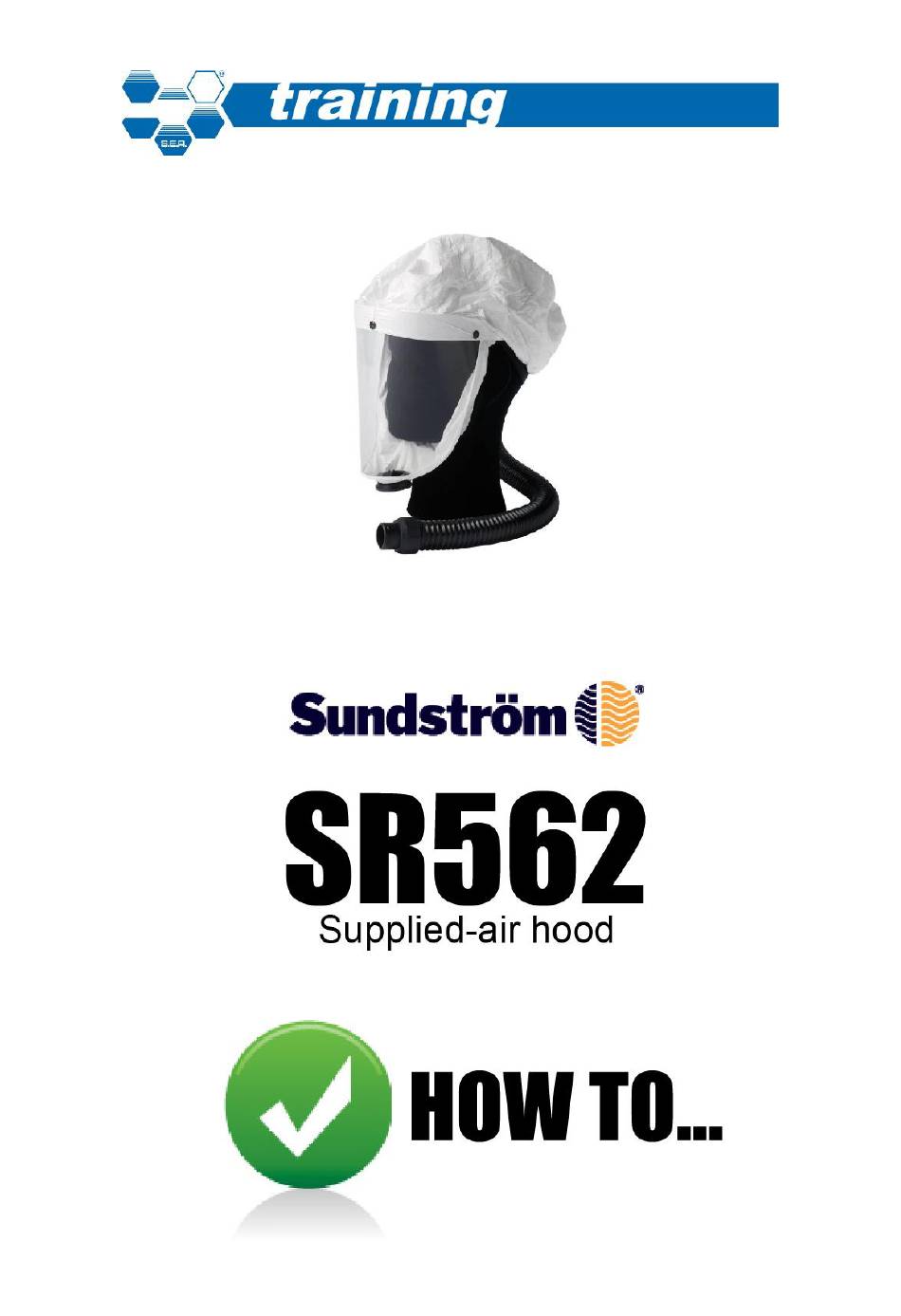

- Page 1 SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 2 – The flow meter is held upright. – The ball moves freely. – The bag seals well around the hose. Check that the O-ring of the hose is in place SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 3 The knob is on the inside of the hood behind the hose. You can reach it without taking off the hood. Turn clockwise to tighten and counter clockwise to widen. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 4 Take the hood off. Switch off the fan, release the belt and take the fan unit off. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
-
Page 5: Schedule Maintenance
…schedule maintenance The schedule represents the minimum requirements for maintenance routines in order to ensure that equipment will always be in functional condition. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group... - Page 6 Release the face seal rubber band secured to the forehead band next to the Velcro tapes. Remove the Velcro tapes. Release the three press studs at the top edge of the visor. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 7 Note that the hose should not be drawn all the way through, and around 20 cm should be left on the inside of the hood. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 8 Fold the Velcro tapes around the forehead band and secure them as firmly as possible. Take the face seal rubber band and insert the knot into the keyhole opening in the head harness. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 9 …change the hose Release the face seal rubber band secured to the forehead band next to the Velcro tapes. Remove the Velcro tapes. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 10 Thread the pin on one side of the hose coupling down through the recess in the head harness, turn the hose through 180 degrees and insert pin. Pull the hose out of the hood. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 11 Secure the hood by means of the three press-studs at the top edge of the visor. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
- Page 12 …change the head harness Follow relevant parts of the above instructions dealing with changing the hose. SR562 supplied-air hood — How to Copyright © 2020 by The S.E.A. Group...
