JUICE GOOSE iP Series Owner's Manual page 14

RS232 CONTROL AND MONITORING
(Not available on the IP50 or IP50-RX)
To operate the iP device using RS232 you will need a suitable cable from the
PC to the iP device RJ11 RS232 port on the rear of the unit. Below is the pin
out for a RJ11 to female DB9 cable. This cable will need to be constructed or
purchased. (NOTE: RS232 control not available on IP50/IP50-RX model).

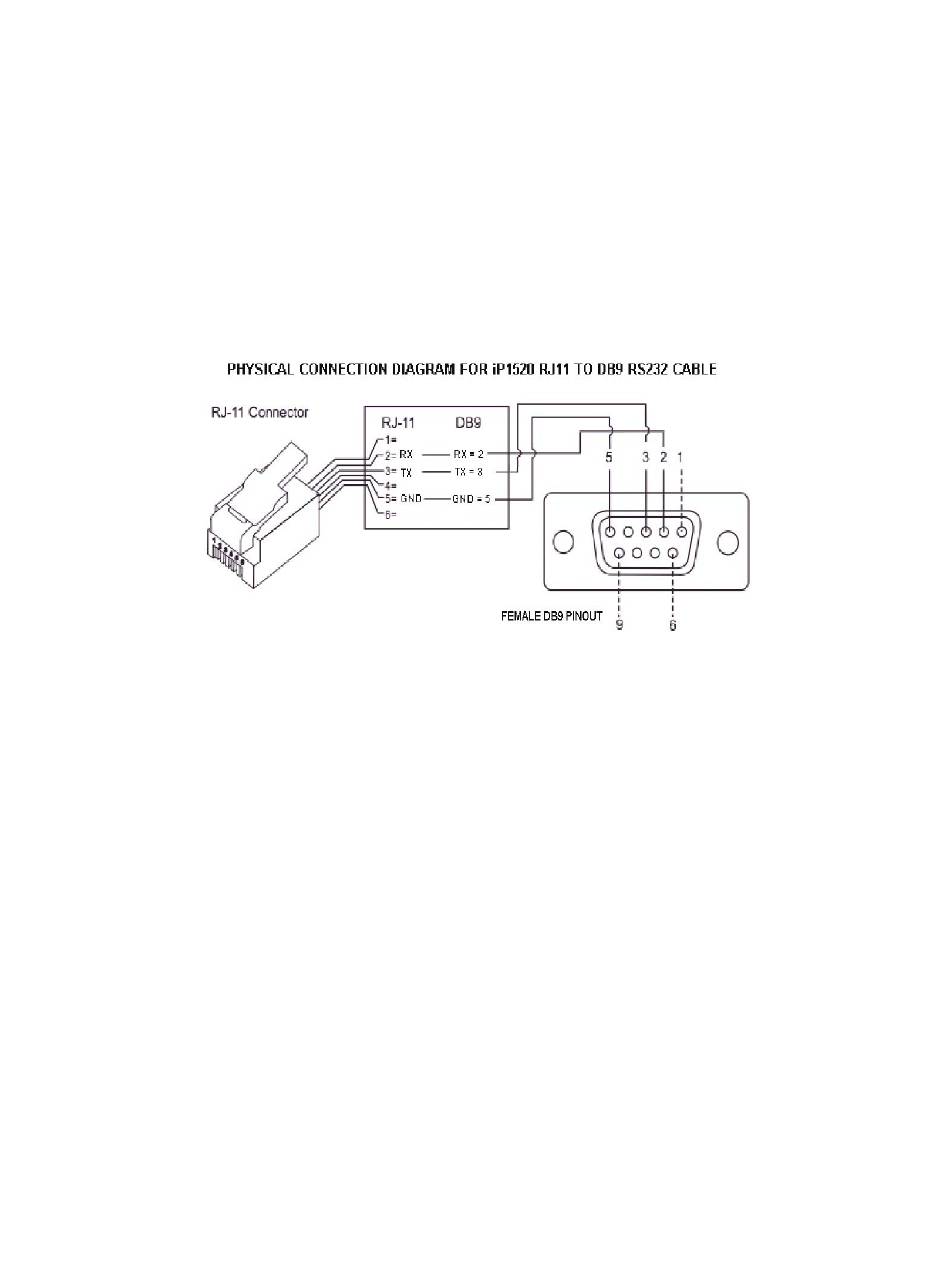

RS232 CABLE PINOUT
RS232 COMMANDS
Using Terminal Software such as Windows Hyper Terminal or Micro Terminal
which you can download from our website at http://juicegoose.com/product-ip-
1520.html, the following commands can be issued to the iP device.
NOTE: A DEACTIVATE command must be issued first to ensure the physical
sequence up/down switch position does not override the RS232 commands.
ACTIVATE - Enables the sequence up/down switch on the front of the
iP15
DECACTIVATE - Disables the sequence up/down switch on the front of
the iP device
POD1ON – Turns POD 1 on
POD1OFF – Turns POD 1 off
POD2ON – Turns POD 2 on
POD2OFF – Turns POD 2 off
POD3ON - Turns POD 3 on
POD3OFF – Turns POD 3 off
Page 13
