- Page 1 FOR ROLLING SHUTTERS AND AWNINGS S E L 2 6 4 1 R 4 3 3 - R M Thank you for choosing a product Erone. You are recommended to read carefully this manual before using the product R A D I O C O M A N D I...

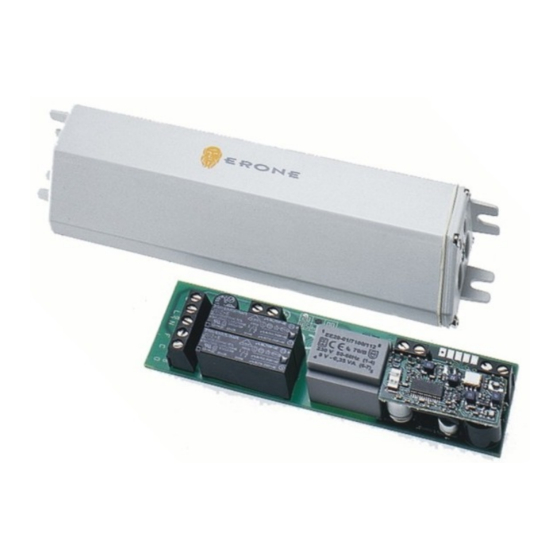

- Page 2 The radio programmer Erone mod.2641R433SV is designed for the control of asyncronous 220V max 400W tubolar motors for rolling shutters and awnings. The appliance can operate both with the transmitter Erone mod. SETR264 E2/E4, and with the wall transmitter mod. Erone SETR264 EM.
-
Page 3: Operating Modes
This appliance has the CLASS II Classification ( ) as concerns the protection against the electric shock , as indicated by the European Standard EN 60335-1: Sept 1994 : "Safety of household and similar electrical appliances, Part 1 : General Requirements ". 3 - FUNCTIONALITY 3.1OPERATING MODES Sequential mode... - Page 4 4.3 CONNECTIONS Connect the appliance to the supply by means a device having a contact separation of at least 3 mm in all poles. Before any connection be sure that the power is interrupted. Pass the cables through the holes of the box cover and the gasket (in case of hermetical closing).
- Page 5 5 - PROGRAMMING 5.1 SYMBOLOGY The installation phases are shown by using the following symbology: Short bip of the buzzer Biiiip Medium bip of the buzzer Pressure for 1 Long bip of the buzzer Pressure for 4 Biiiiiiiiiiiiiiip second seconds B i p - B i p - Bi p Sequence of 3 short bips Bip - Bip - ..
- Page 6 "Separated commands" mode: (A+B)4 [Bip] - B4 [Bip -Bip - ..- Bip ] , D1. IThe first transmitter is indispensable for the memorisation of further radio commands. Fig. 8 It is highly advisable to memorise at least 2 transmitters in each receiver, to prevent a transmitter fealure.
-
Page 7: Memory Erase
5.4 MEMORY ERASE 5.4.1Using the radio control (A+B)4 - [Bip] A4 [Biiiiiiiiiiiiiiiiiip ] - (A+B)4 [Biiiip ],[Biiiip ],[Biiiip ]. Fig. 11 5.4.2 -Using the reset push - button Make a pressure on the button of the plastic box of the radio programmer up to the biiiiiiiiiiip of the buzzer. - Page 8 Fig. 14 a pressure of the keys A., B or D The guarantee period of all Erone products is 24 months, beginning from the manufacture date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at the discretion of the producer.
