MOUNTING

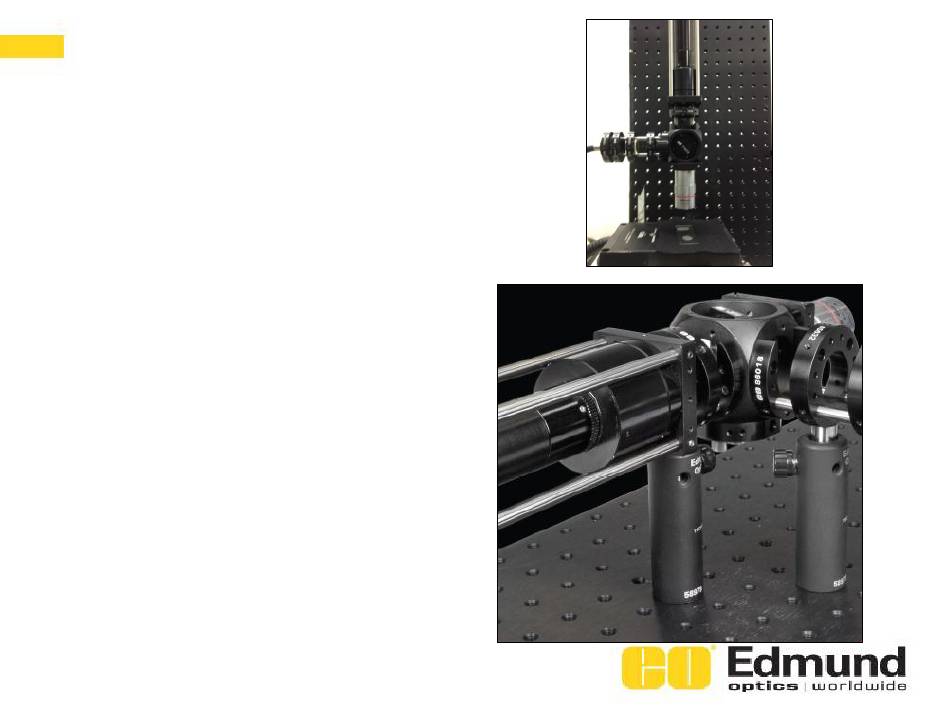

Adding two standard cage plates to the
microscope assembly make it easy to mount
this microscope either horizontally or vertically:
1. Add a plate to the source arm between the
achromatic lens and the filter holder. The
second can be placed along the 50mm
rods between the filter holder and tube
lens. (make sure the M6 or ¼-20 mounting
holes are facing the same direction.
2. Attach mounting posts to the two new
plates and adjust the placement of the
plates to match the breadboard or bench
plate spacing.
