OBJECTIVE ARM
4. Thread the C-Mount Adapter (#85-719), Mitutoyo
Adapter (#55-743), and Mitutoyo Objective (#46-
143) together. Then secure the C-Mount Adapter
part of the assembly within the square plate with
M3 set screws.
5. Insert the four 150mm long rods (#85-490) into
the outer rod holes of the square plate and
secure with M3 set screws.
6. Take a Square Mounting Plate (#85-737) and
slide it onto the 150mm long rods. Lock the plate
onto the rods approximately 20mm from the end
of the objective.
7. Insert two100mm long rods (#85-488) into two
adjacent inner rod holes of the square plate from
step 6. Keep the ends flush with the plate and
secure with M3 set screws.

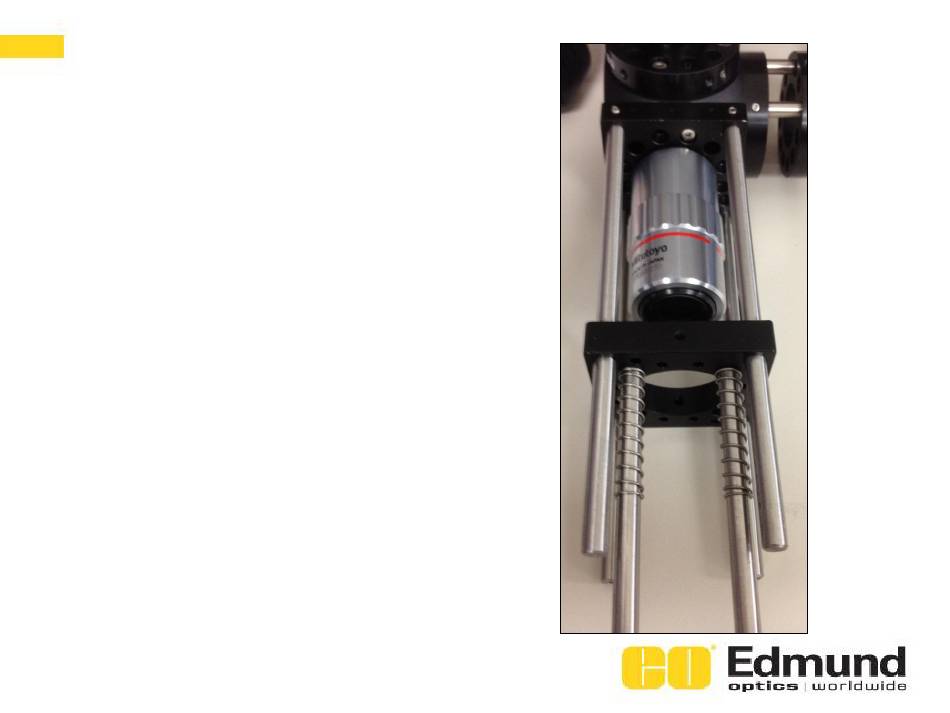

8. Slide the 2 springs from the micrometer
assembly onto the 100mm long rods.
