Edmund Optics TECHSPEC Step-By-Step Instructions page 17

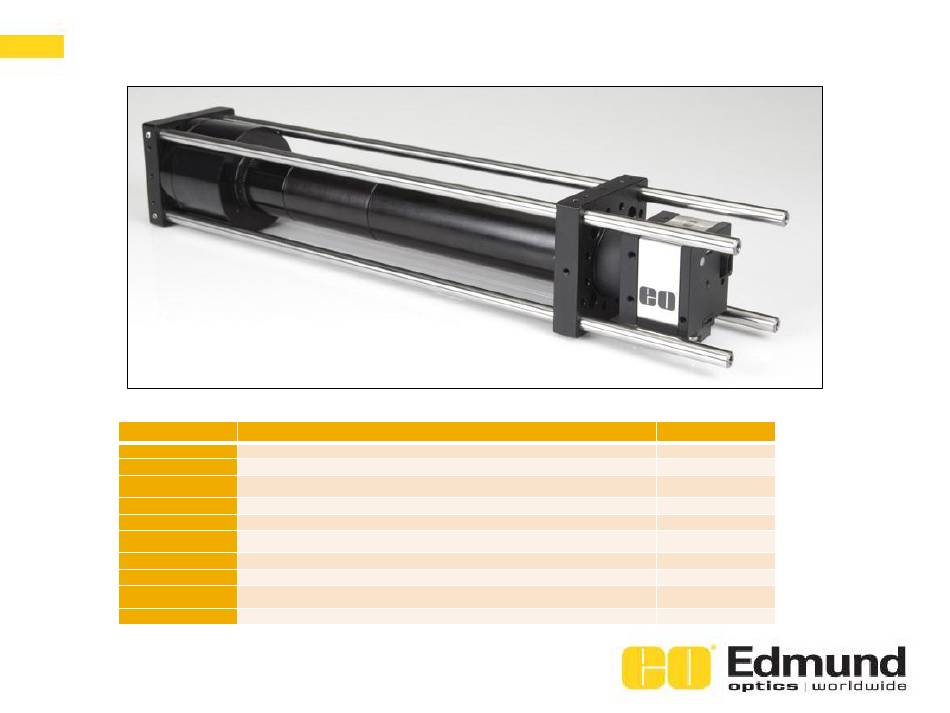

IMAGING ARM
Parts needed for this step:
PART #
85737
85719
85486
54774
58329
85492
54633
54632
03625
59367
PROPRIETARY - Property of Edmund Optics, Inc. | 2012 Copyright© Edmund Optics, Inc.
Description
30mm Square Interface Plate
30mm Cage Plate C-Mount Adapter
Cage Support Rod 6mm Diameter x 50mm Length, M3
MT-1 Accessory Tube Lens
Mitutoyo MT-1/MT-2 C-Mount Adapter
Cage Support Rod 6mm Diameter x 300mm Length, M3
C-Mount Extension Tube (100mm Length)
C-Mount Extension Tube (50mm Length)
C-Mount Fine Thread Extension Tube (30mm-50mm Length)
EO-3112C ½" CMOS Color USB Camera
QUANTITY
2
2
2
1
1
4
1
1
1
1
17
