OBJECTIVE ARM
9. Attach the stainless steel plate (not shown) to a
Square Mounting Plate (#85-737) with M3 SHCS.
Slide the square plate onto the rods with the steel
plate between the100mm long rods and facing
away from the springs. Keep the plate loose on the
rods.

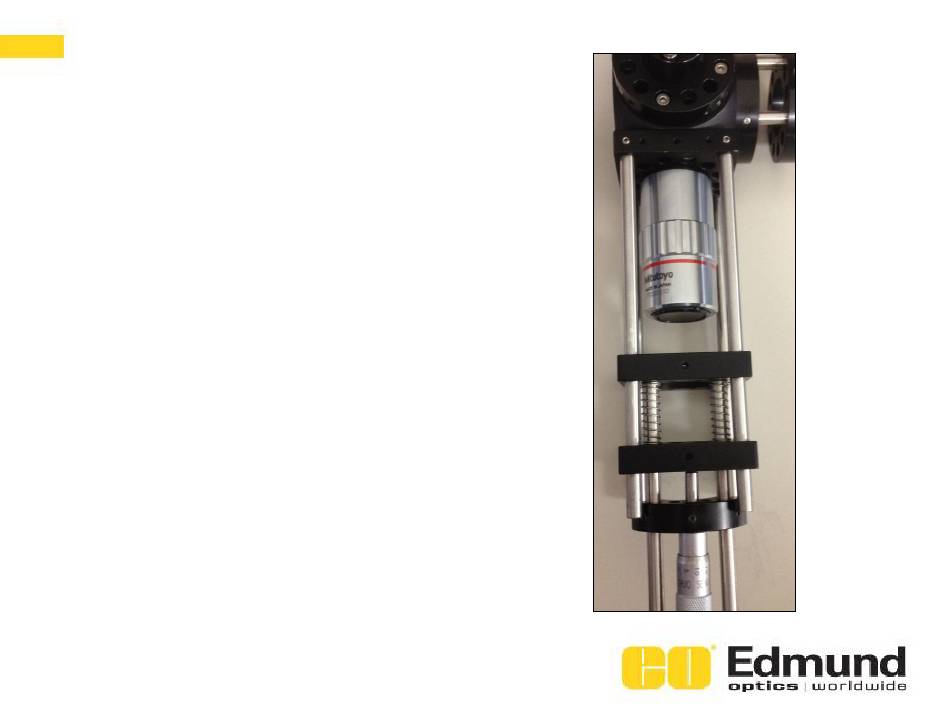

10. Mount the micrometer (#58-661) in the micrometer
holder. Slide the micrometer assembly onto the
two 150mm rods. The micrometer should be
between the two 100mm long rods Be sure the
micrometer is in the half extended position and the
shaft contacts the stainless steel plate from step 9.
11. Push the micrometer assembly and loose square
plate towards the secured square plate
compressing the springs to approximately ¾ their
uncompressed length. Lock the micrometer
assembly on the rods with M3 set screws keeping
the springs under tension. The loose square plate
should now translate when the micrometer is
adjusted. This loose square plate will serve as the
microscope stage.
